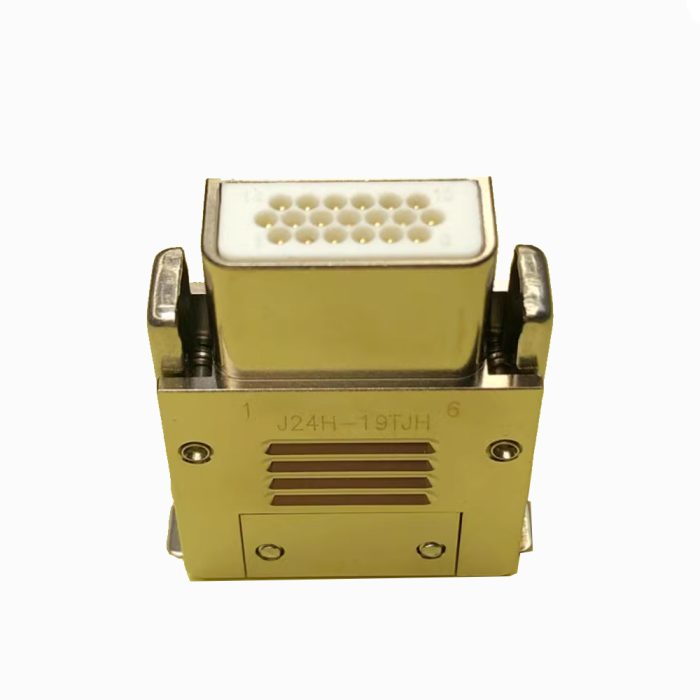

J24H 19pin series plug for drone building

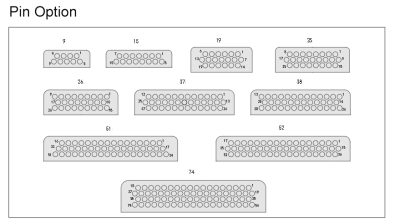

J24H 19pin series plug In line with the GJB2446 standard, the contact couple is an elastic stranded wire pin (twist needle) with reliable contact with the rigid jack, the metal shielded shell is equipped with a wire clamp and a quick locking device, crimping, welding, straight and bent printed board welding a variety of termination forms, and the plug socket is equipped with a needle and hole with 9, 15, 19, 25, 26, 37, 38, 51, 52, 74 pin and ten specifications

Specification

Operating temperature: -55°C~+125°C
Relative humidity: +40°C up to 98%
Vibration: 10-2000Hz, 254m/s
Random vibration: power spectral density 0.4G/Hz,
Total acceleration rms: 23.1G
Low air pressure: 4KPa
Shock: 980m/s
Contact resistance: ≤9mΩ
Rated current: 5A
Insulation resistance: ≥1000 MΩ (9, 19, 25, 37, 52, 74 pin) (room temperature)
≥5000 MΩ (15, 26, 38, 51 pin) (room temperature)
Medium withstand voltage: 800V (9, 19, 25, 37, 52, 74 pin)
1000V (15, 26, 38, 51 pin)
Mechanical life: 1000 times
