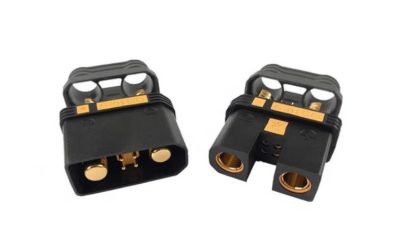

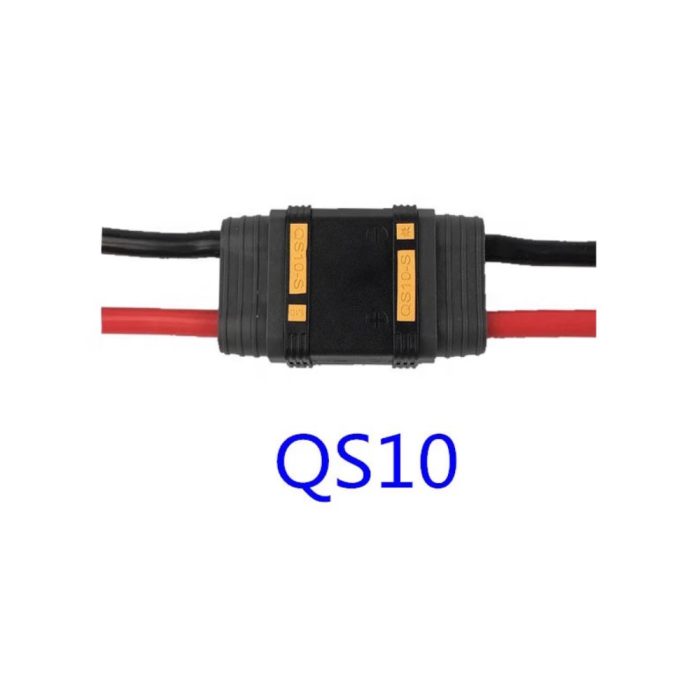

QS10 plug female and male set for drone battery and drone building

QS10 male and female plugs are made of copper gold-plated material, which can withstand the rated current of 180A, the peak current of 240A, the use of UL94-V0 flame retardant material, work temperature of -30C°~120C°, the use of error-proof design, to avoid thinking that the wrong operation caused by short circuit. suitable for Max. 4AWG cable, life time 1000.

Specification

Product description: QS10 fire-proof and high-temperature resistant plant protection high-current battery plug airplane model car power supply male and female can be welded
Product Name: QS10 Male and Female Plug
Plastic material: nylon fiber
New: Anti-ignition (resistance 5.1 ohms)
Hardware material: brass gold plating
Product weight: 105 grams (errors are unavoidable)
Temperature resistance: 200°C
Wiring: 6AWG
rate current: 120A
