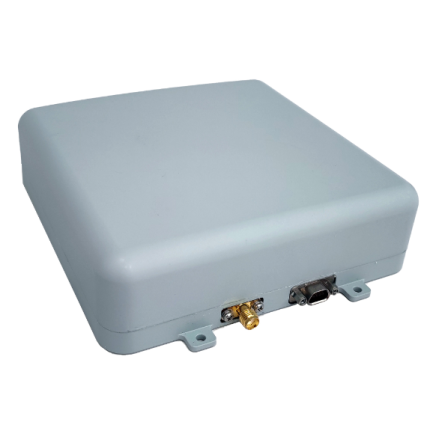

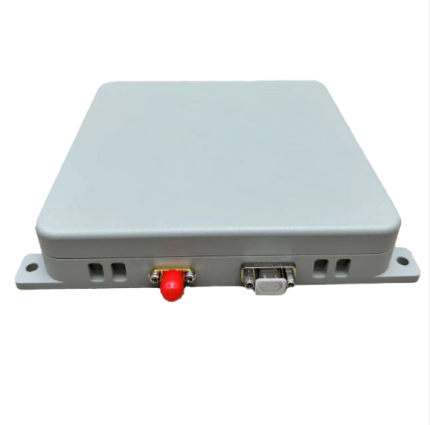

FDG -008 pro 4 channel Anti-interference Antenna terminal for UAV drone power grid high speed rail data center base station

FDG -008 pro 4 channel Anti-interference Antenna terminal for UAV drone power grid high speed rail data center base station.

The product  is a highly integrated ultra-compact antenna array terminal with a 100mm aperture designed to resist interference. It primarily serves small to medium-sized drones, protecting user terminals from various unintentional interferences and malicious attacks, significantly en- hancing PNT(Positioning,Navigation,and Timing) information security.

Anti-interference capability:
95dBc Unidirectional interference: better than 95dBc
85dBc Three-direction interference: better than 85dBc

Interference Type:
Band-limited Gaussian white noise interference,
Spread spectrum matched filter interference
Pulse interference, sweep interference
Mixed interference

Anti-interference airspace\orientation:
0°~360°,pitch:-90°~90°
Volume:
(100 ± 0.5)mm (100 ± 0.5) mm (25 ± 0.5) mm
Power consumption:
7.2W (room temperature, including positioning module)

Weight: ≤300g
