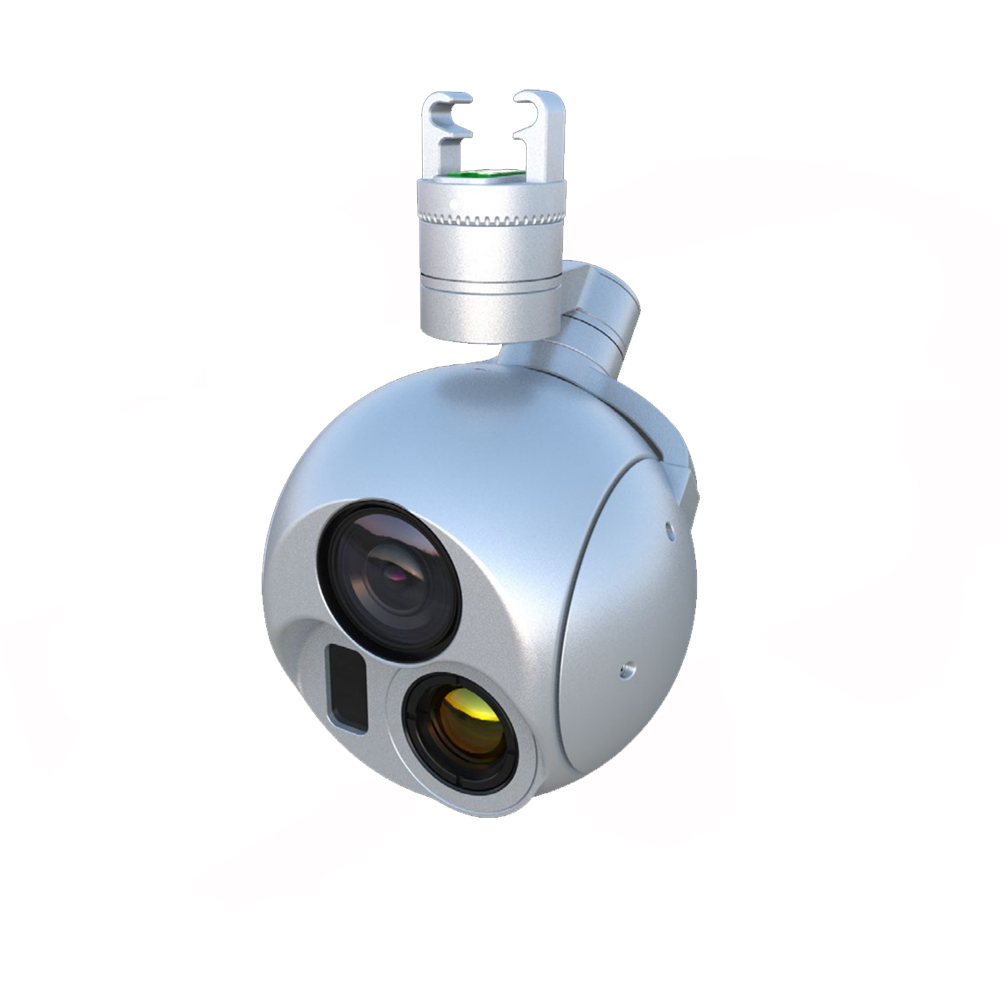

FDQ302 33X ZOOM 4K Ai tracking drone gimbal camera

FDQ302 33X Zoom 360°degree& GPS location thermal camera is a cost-effective triaxial image stabilization triple vision photoelectric pod, with AI target detection / recognition / tracking function. It integrates Sony 33x high-quality starlight optical module, 25mm focal length 12 μm high sensitivity thermography module,  Lightweight and dip angle low wind resistance design, especially suitable for all kinds of UAVs with a airspeed of no more than 120km/h.

Specifications:

Physical parameters

Dimensions: 161.4 (length) × 130 (width) × 208 (height) mm

Weight: 1177±10g (excluding control module)

Working temperature: -20℃~70℃

Protection level: IP43

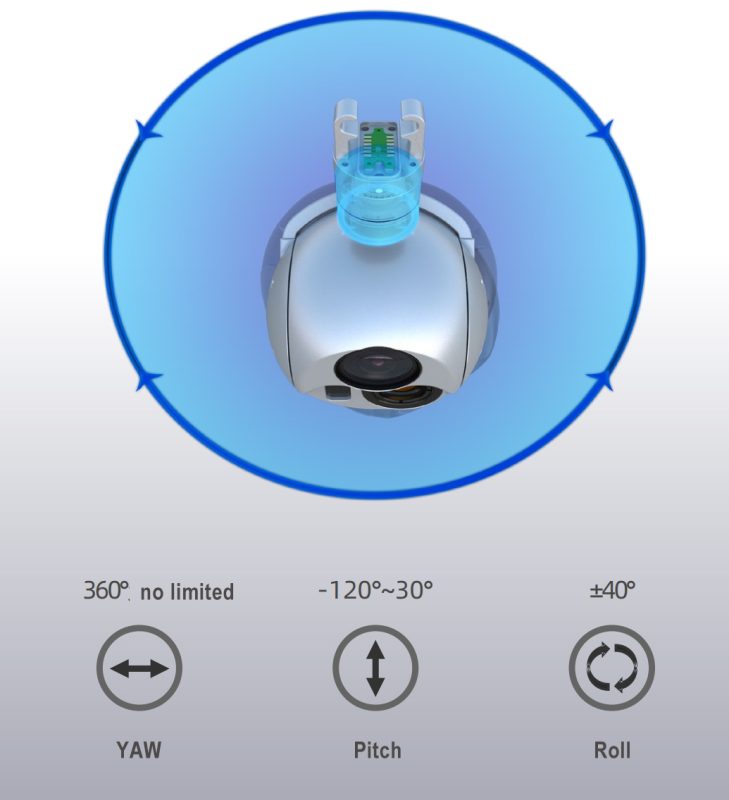

Angle working range: 360°×N (heading); -120°~30° (pitch); ±40° (roll)

Image storage format: JPG: 1920*1080

Video storage format: MP4

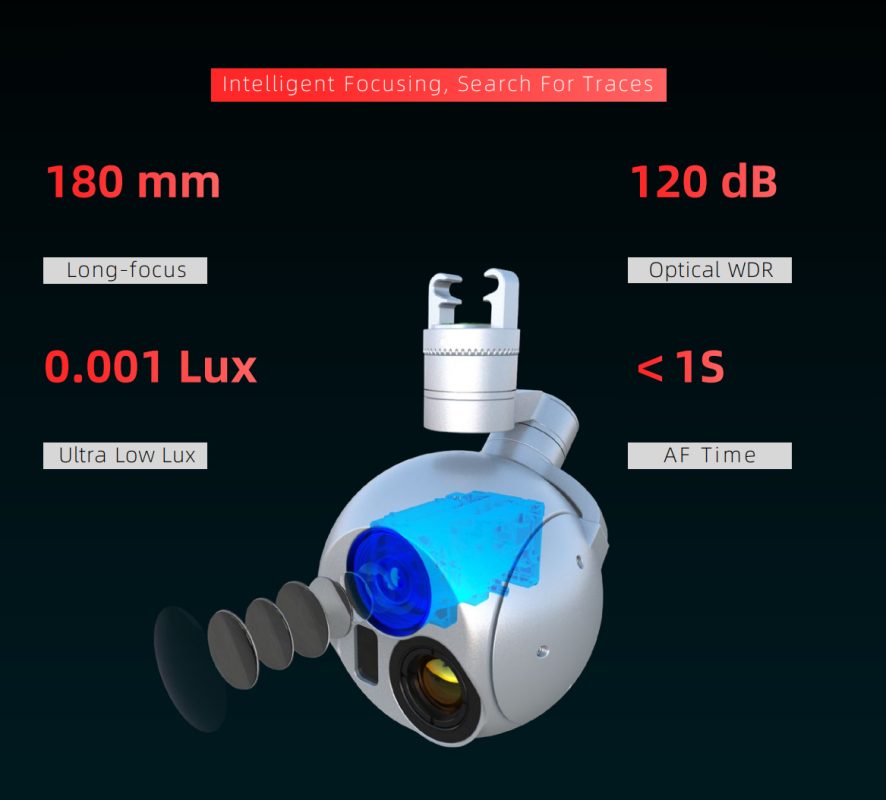

Visible light module

Sensor: 1/2.8 inch SONY CMOS

Focal length: 5.5～180.0mm(33×)

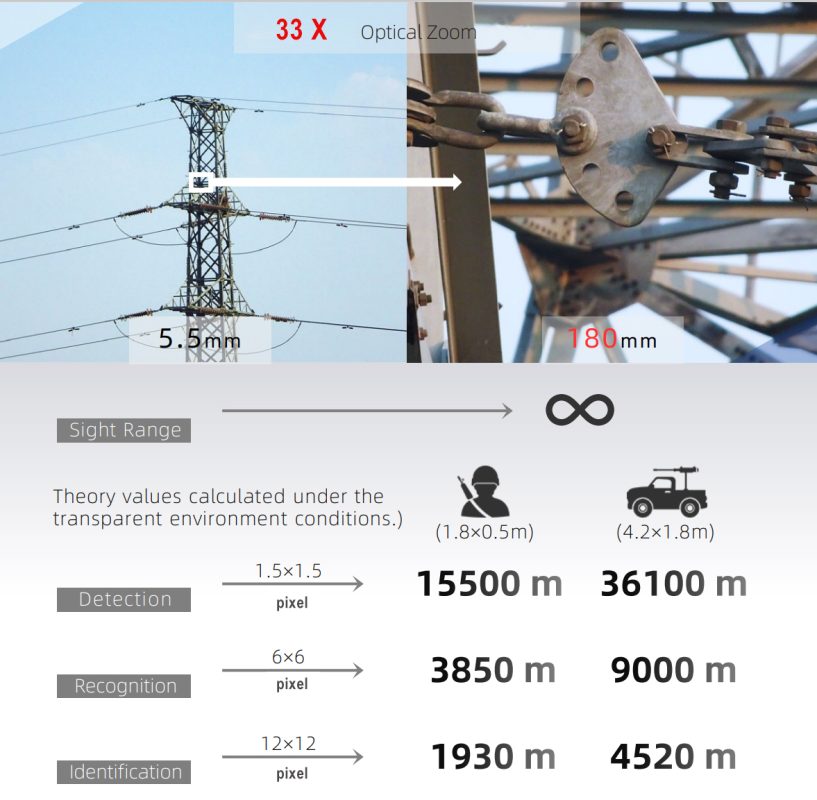

Optical zoom factor: 33x optical zoom

Optical zoom speed: ≈3.5S (wide-angle-telephoto)

Field of view: H: 58.9-2.4°, V: 33.6-1.4°

Aperture: F=1.5~4.0

Effective pixels: 2.07 million

Signal to noise ratio: 120dB

Digital zoom: 16x (528x hybrid zoom)

3D noise reduction: support

Fog penetration: support

Backlight compensation: support

Thermal

Thermal Imaging Sensor: Vanadium Oxide Uncooled Infrared Focal Plane

Detector packaging method: High-density ceramic packaging

Thermal imaging focal length: 25mm

Thermal imaging resolution: 640*512

Pixel spacing: 12μm

Wavelength range: 8~14μm

Field of view: 10°X 7.9°

Thermal sensitivity: ≤50mK@25℃, F#1.0 (≤40mK optional)

Digital zoom: 1.0～8.0X

Frame rate: 50Hz

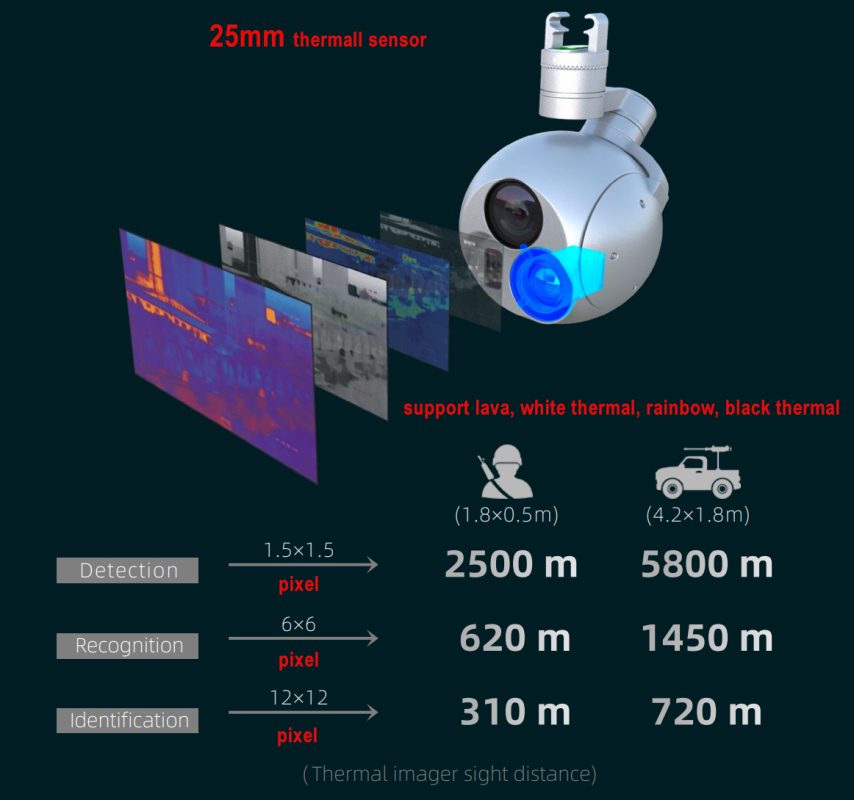

Human (1.8×0.5) detection distance: 2500m

Human (1.8×0.5) recognition distance: 620m

Human (1.8×0.5) recognition distance: 310m

Car (4.2×1.8) detection distance: 5800m

Car (4.2×1.8) recognition distance: 1450m

Car (4.2×1.8) recognition distance: 720m

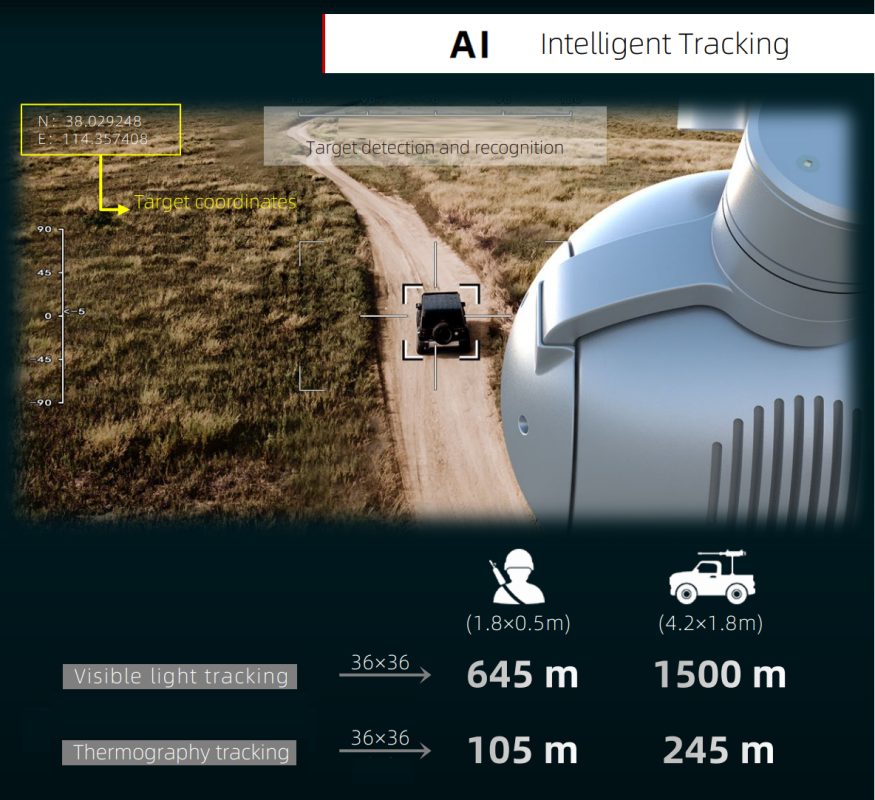

AI tracking

Automatically detect target types: typical targets such as vehicles and people

Number of multi-target detections: ≥20

Minimum target size: 36×36 pixels

Maximum target tracking field of view: no more than 1/3 of the field of view

Processing speed: ≥30fps (@1080P)

Target Position

Target positioning method: Center point positioning of the screen (needs to receive GPS information)

Target solution accuracy: ≤20m (@measurement slope distance 500m)

Coordinate output type: latitude and longitude

PTZ physical shock-absorbing structure

Longitudinal shock absorption distribution: down-pressure 8 shock-absorbing balls double-layer physical shock absorption

Effective image stabilization amplitude: Lower gimbal: 1.5mm@30~500Hz;

Upper gimbal: 0.5mm@30~500Hz

Effective working amplitude: Lower pan/tilt: 3mm@25Hz, 6mm@5Hz;

Upper pan/tilt: 1.2mm@25Hz, 3mm@5Hz
