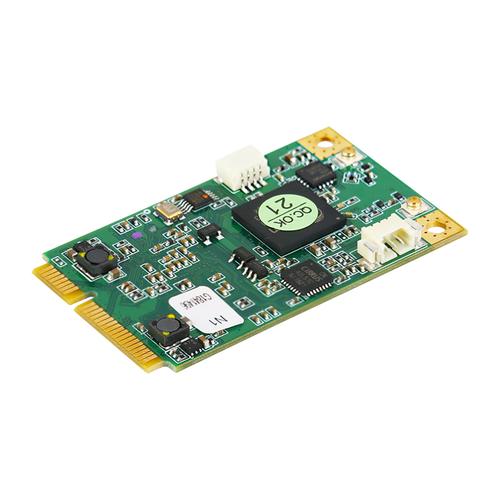

SC542N1 MC SDI mini HDMI video capture board for gimbal camera
SC542N1 MC SDI mini HDMI video capture board for gimbal camera is mainly used to integrate camera chips. This chip is cost-effective and reliable in quality. OEM is accepted.
| Model | SC542N1 MC SDI |
|---|---|
| Max. FPS | 1920×1080p@60/50fps in → 1920×1080p@60/50fps out |
| Recording Mode | Software Compression, Real-Time Mode |
| Dimension | 30×50.95 ( mm ) |
| Interface | MiniCard ( PCIe×1 Gen 2 ) |
| Video Input | 1×SDI |
| Video Output | 1×SDI ( Loop-Through ) |
| Display Video Format | YV12, NV12, YUY2, RGB24, RGB32 |
| Video RAW Data Resolution | 3G-SDI 1920×1080p@60/50fps HD-SDI SD-SDI |
| Recording Video Format | H.264 ( Software Compression ) |
| Recording Video Resolution | 3G-SDI 1920×1080p@60/50fps HD-SDI SD-SDI |
| Audio Input | 1×SDI Embedded Audio, Audio L/R ( Through Wafer Connector ) |
| Audio Output | 1×SDI Embedded audio ( Loop-Through ) |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| Multiple Cards | ∞ |
| SDK | Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi |
| System Requirement | |
| OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
