100KM Drone Transmission System 3in1 Video-Data-RC Wireless Link

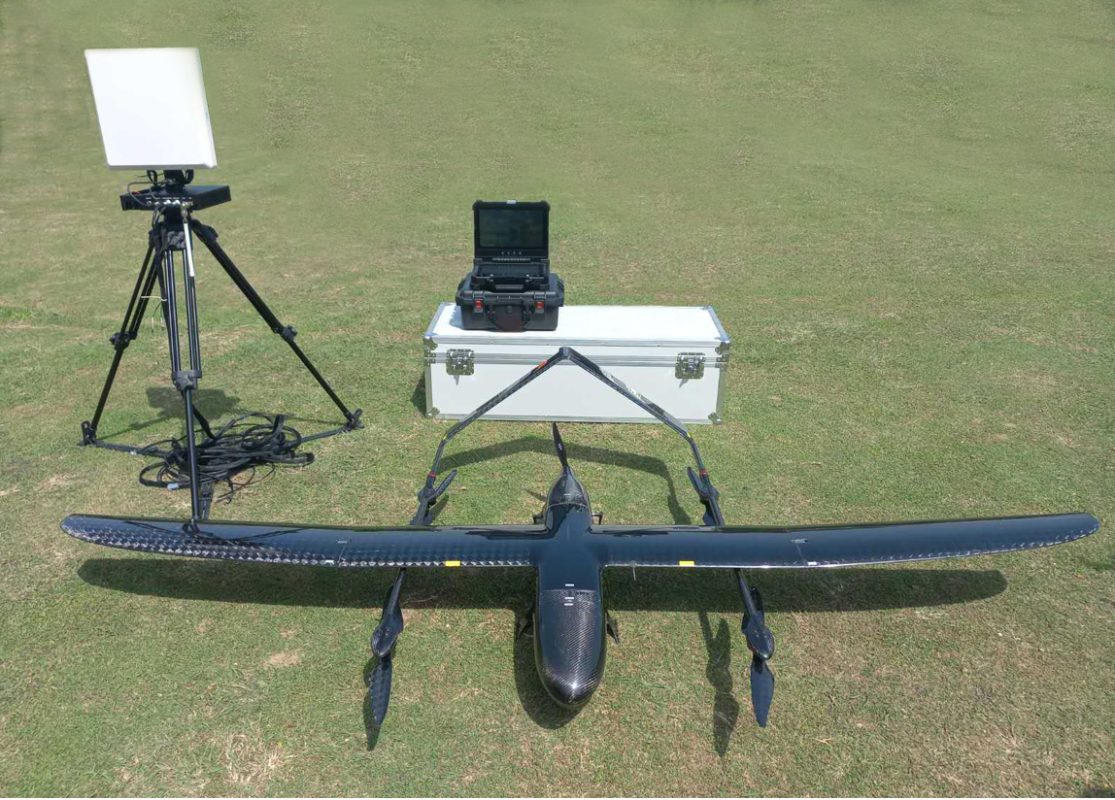

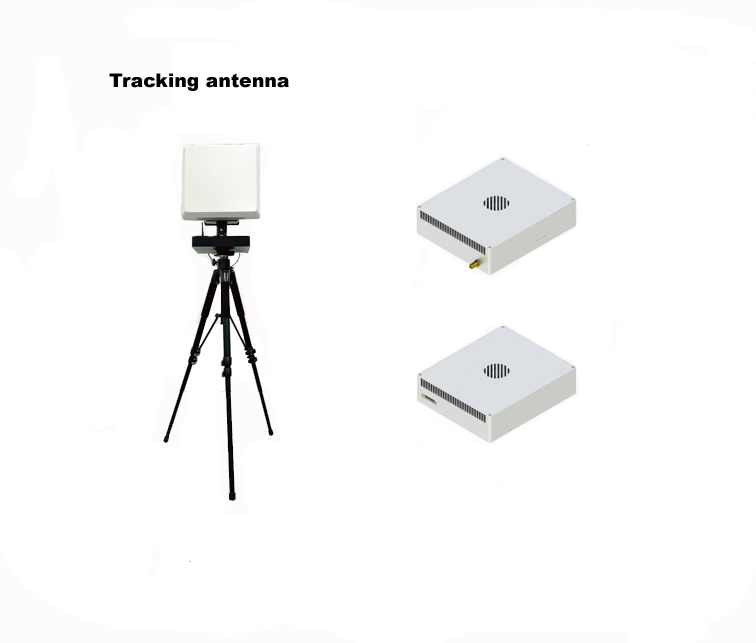

FD-Z100 100KM Drone Transmission System 3in1 Video-Data-RC Wireless Link is built especially for the scenario where the communication range is 100km. With a SprintTracker, its transmission range can be over 100km. it’s adopts private COFDM protocol, features long range transmission, high sensitivity and high throughput.

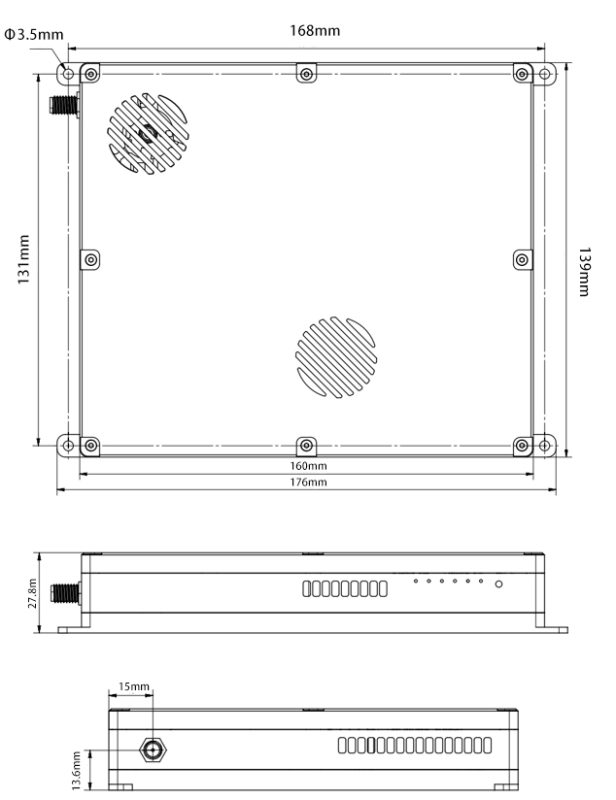

Specifications

Working frequency: 1370~1450MHz, can be customized
Channel bandwidth: 10MHz (uplink), 10MHz (downlink)
Transmit power: 37dBm
Modulation method: OFDM
Constellation diagram: BPSK, QPSK, 16QAM
Forward error correction code: LDPC (1/2, 2/3, 3/4, 5/6)
Duplex mode: TDD
Downlink throughput rate: 2Mbps ~ 8Mbps
Upstream throughput: 600kbps
Encryption: AES256
Serial port baud rate: 9600/57600/115200bps
Interface: Serial port (RS232/RS422/TTL optional)*2, Ethernet port*3, S.bus*2, PPM*1
Power consumption: 38W (air unit) / 16W (ground unit)
Working temperature: -40°C ~+65°C

Features

●OFDM multi-carrier modulation
The underlying design of the solution uses OFDM multi-carrier modulation technology to effectively combat inter-symbol interference and inter-subchannel interference caused by multipath effects.

●Automatic frequency hopping
Supports two working modes: manual fixed frequency and automatic frequency hopping. In frequency hopping mode, the device can automatically detect and avoid narrowband interference signals and select the frequency with the least interference.

●Antenna selection
The product supports antenna switching. During flight, the antenna with better signal can be selected in time according to the fuselage obstruction.

●Transmit power adaptive
Under the premise of ensuring the stability of the wireless link, the device’s transmission power is actively reduced to save power and effectively improve battery efficiency.

●MCS adaptive
The downlink MCS (Modulation & coding scheme) mode supports self-adaptation and can automatically and dynamically adjust according to real-time signal quality, optimizing the overall delay of the application system while ensuring continuity of data transmission.

●AES encryption
Supports AES256 and AES128 encryption methods to prevent illegal monitoring and interception, fully ensuring the security of data transmission.

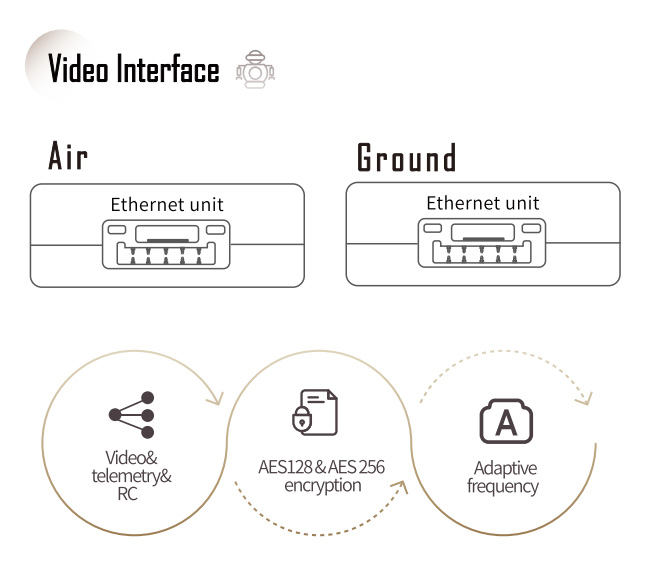

●Optional data transmission interface
Rich digital transmission interface selection, supporting RS232/RS422/TTL/UDP and other protocols.
