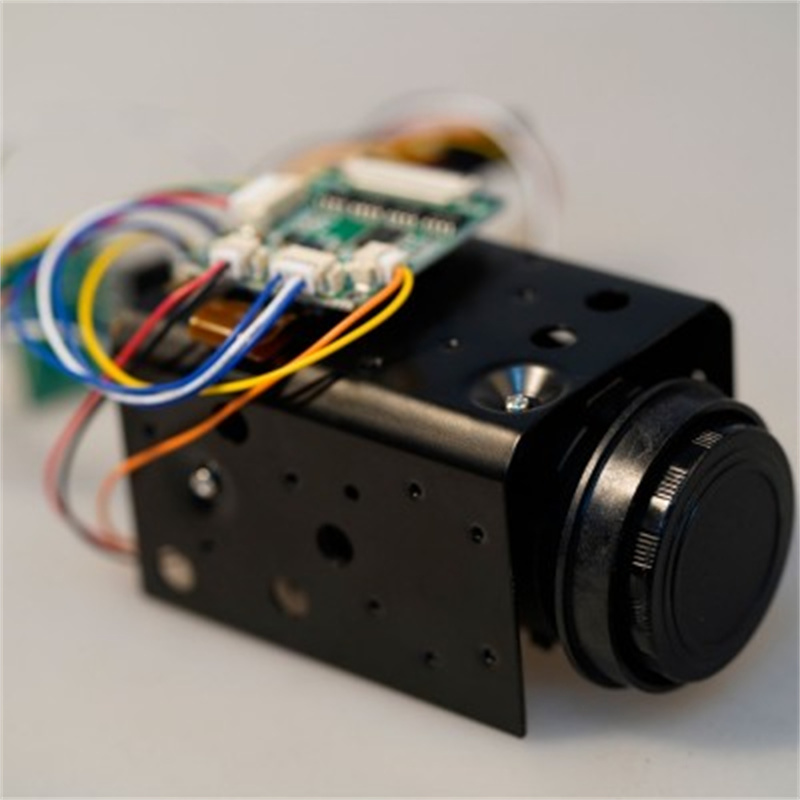

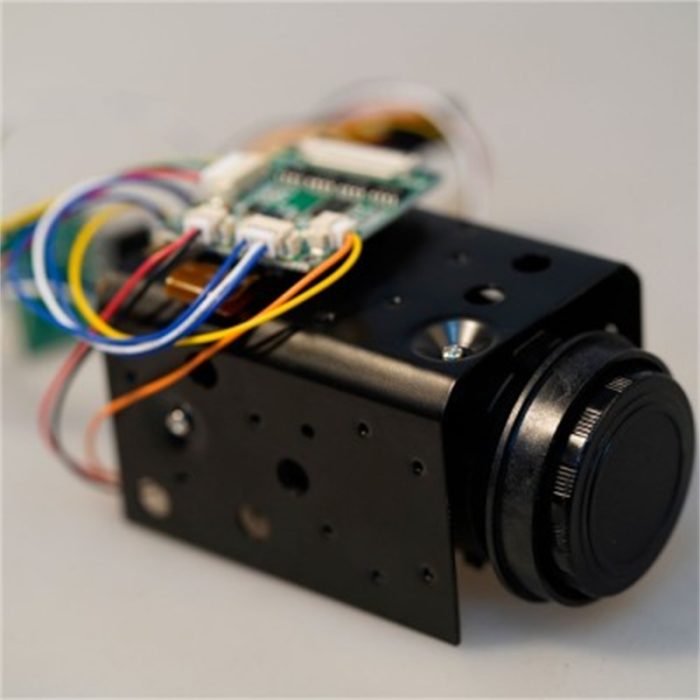

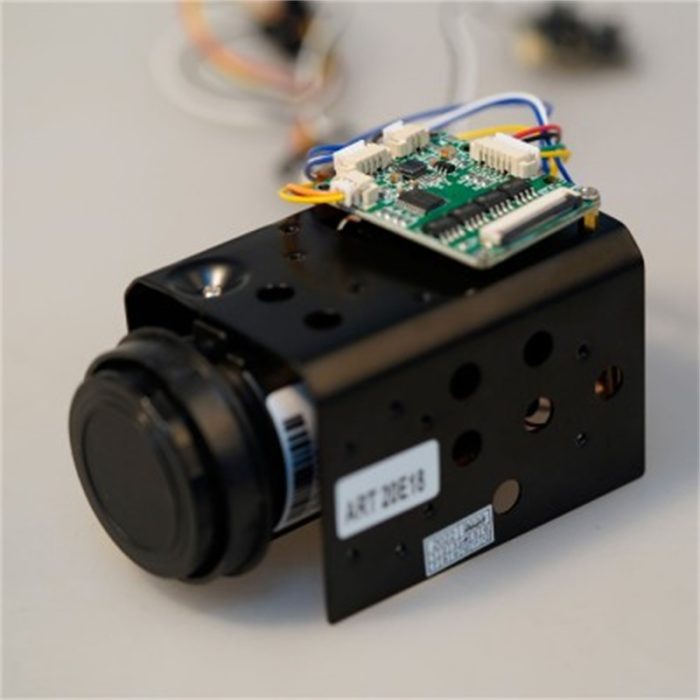

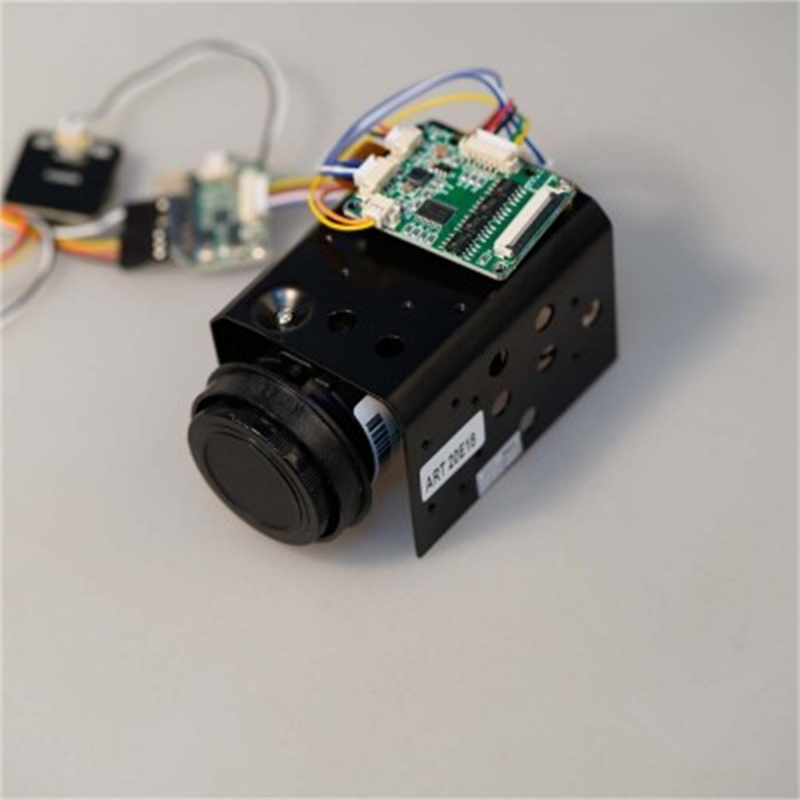

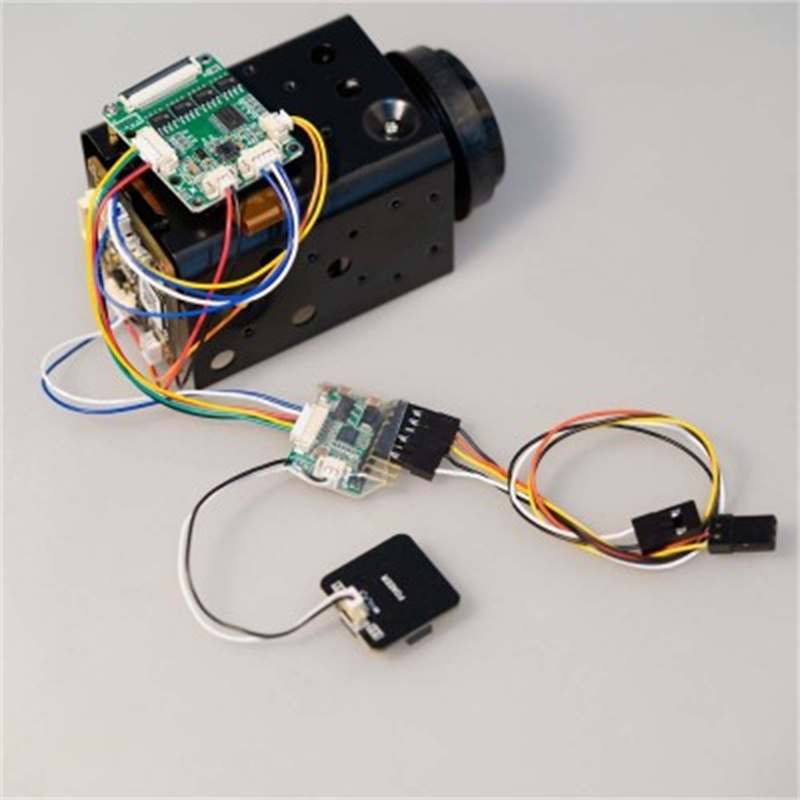

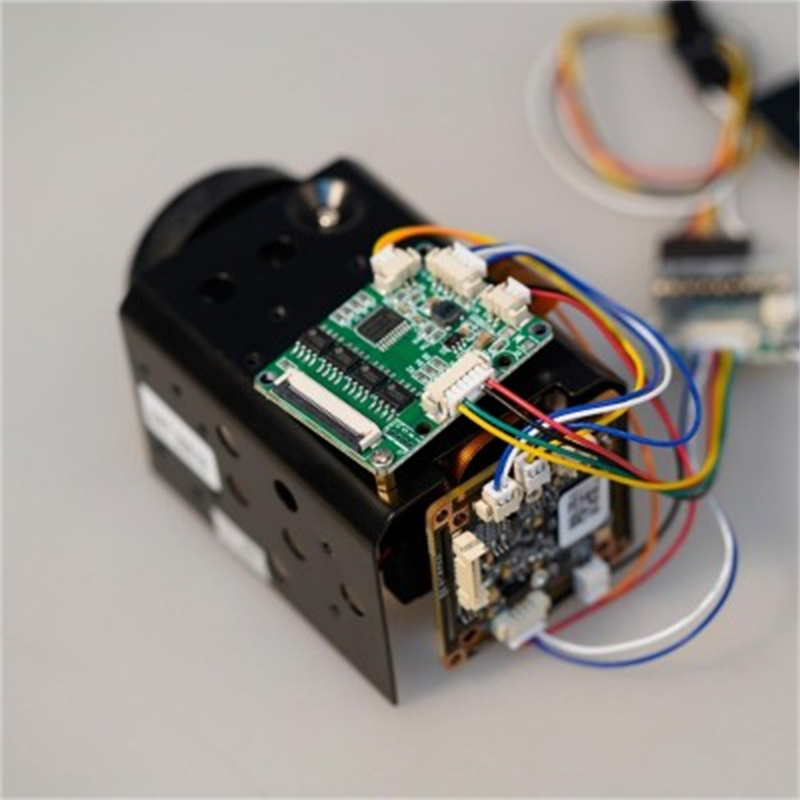

Foxeer 30x Zoom 700TVL CMOS Camera PWM Controll CVBS
Foxeer 30x Zoom 700TVL CMOS Camera PWM Controll CVBS
700TVL 10X zoom camera specialized for FPV, adopt CMOS image sensor and Effio DSP, have good WDR function, low illumination is up to 0.001Lux at B/W mode, PWM signal control zoom.
| Solution | 1/3” Sony CCD+Effio DSP |
| Effective Pixel | 976(H) x 596(V) |
| Tv System | PAL/NTSC Optional |
| Signal Format | CVBS |
| Resolution | 700TVL |
| Min. Illumination | Color: 0.01Lux; B/W: 0.001Lux |
| Digital Electronic Zoom | No |
| WDR | Yes |
| Digital Noise Reduction | Yes |
| Frame Accumulated | Yes |
| Focus Length | 3.9~85.8mm |
| Optical Focus | 30X |
| Focus | Zoom controlled by ground controller |
| White Balance | Auto |
| Iris | Auto |
| S/N Ratio | >60dB(Enhanced) |
| Electronic Shutter | PAL:1/50~1/10000 seconds NTSC:1/60~1/12000 seconds |
| Language | English |
| Power Supply | DC 12V |
| Work Temperature | 0~ 70°C |
| Size | 65mm*35mm*43mm |
| Weight | 163g |
| Package Includes | 1 x camera; 1 x cable |
