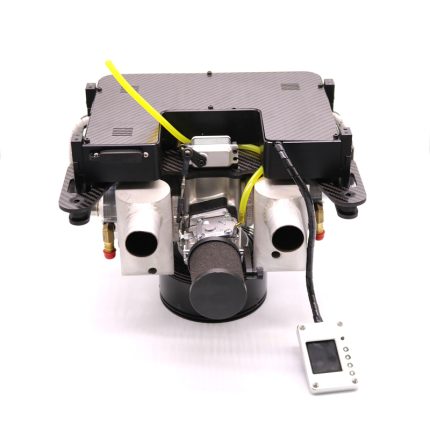

EFI hybrid FD6000W drone generator aerospace extender is Based on the needs of multi-rotor drones, we developed the FD-6000W EFI hybrid generator aerospace extender as a 58V (14SLi battery) extender.The engine uses a two-cylinder, two-stroke gasoline engine as the power source. It is derived from military power projects.

Specification

Rated voltage: 58V
Rated power: 6.3KW
Continuous output power: 6KW
Weight: 8.5KGS
Size (L*W*H): 312*288*206MM
Average fuel consumption: 5.8L/h
Model used: Multi-rotor UAV
Maximum take-off weight: 52KGS
Applicable model power voltage: 58V (14S)
Altitude: 2000m
Applicable ambient temperature: -20℃ to 50℃
Starting method: handheld electric starter
Mixing ratio of lubricating oil and gasoline: 1:40

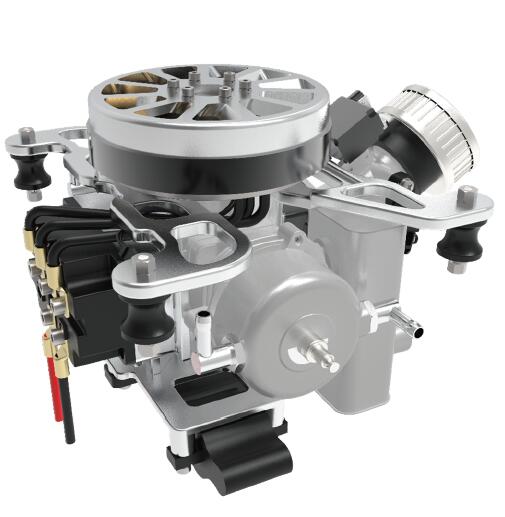

Engine model: 247AI
Model: Two-cylinder, two-stroke, electronic injection, water-cooled gasoline engine
Displacement (ml): 124
Idle speed (r/min): 5000
Engine oil grade: JASO FC grade or ISO-l-EGC grade and higher grade 2T engine oil
Gasoline identification: 95# gasoline
Introductory TBO:200 hours
