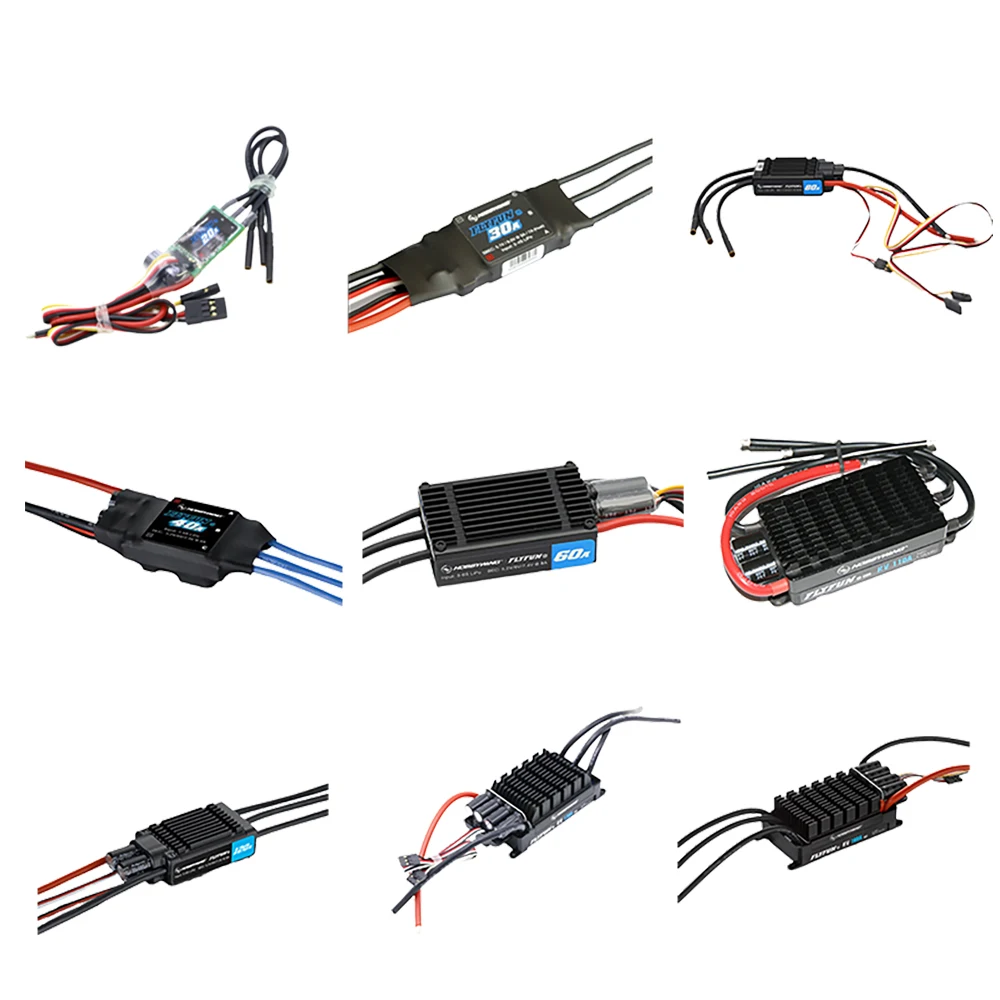

Hobbywing FlyFun V5 20A 30A 40A 60A 80A 120A Brushless FPV ESC Speed Controller 2-6S Lipo For RC Multicopter Drones

Hobbywing FlyFun V5 20A 30A 40A 60A 80A 120A Brushless FPV ESC Speed Controller 2-6S Lipo For RC Multicopter Drones

Product characteristics

More linear throttle, lower temperature and longer flight time

Optimization technology of driving efficiency of electric regulator with synchronous rectification*(DE0—Driving Efficiency Optimization)

the accelerator response is faster and more linear, flight stability and flexibility are strengthened at the same time; the electric regulation work is more reliable with lower temperature rise; the driving efficiency is higher and the endurance time is prolonged.

Slow start technology, suitable for ducted motor. Reverse thrust function adds more fun to fixed wing flight.

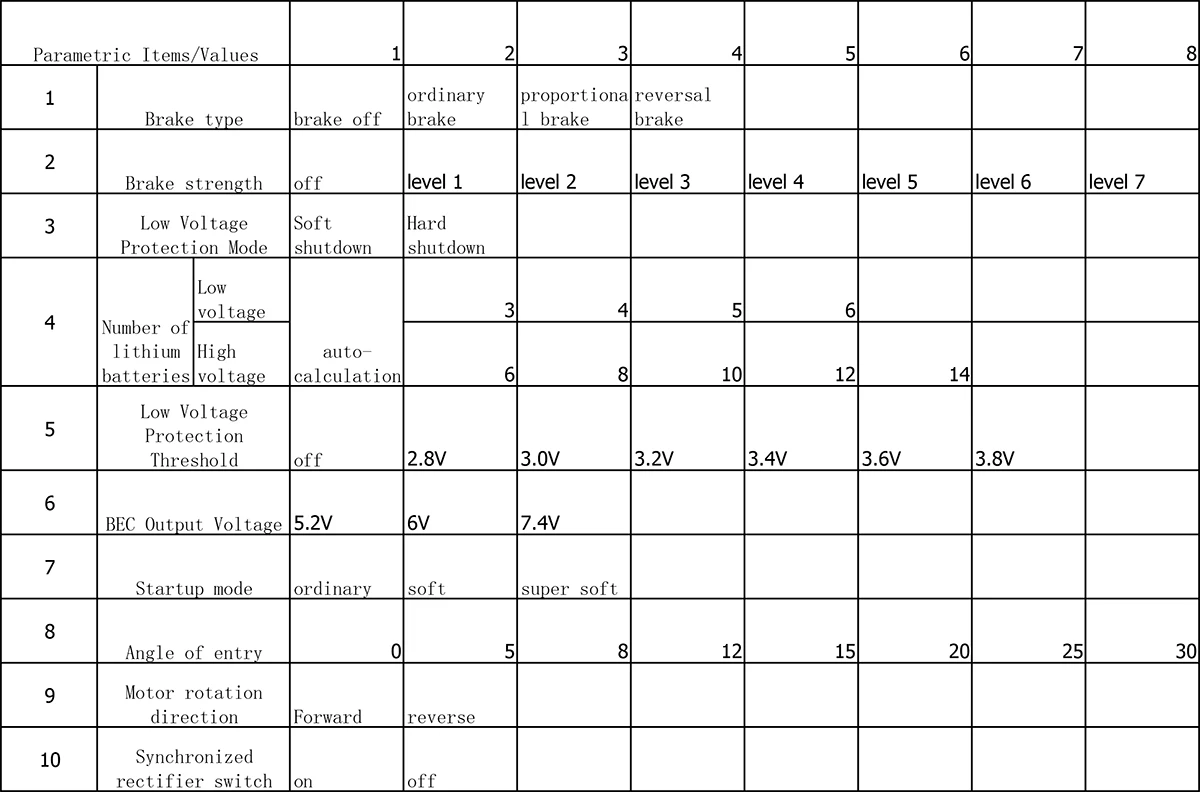

The newly designed multi gear slow start function is more suitable for ducted aircraft with different sizes besides general propeller aircraft. It has reverse thrust function(reversal braking on ESC). When a fixed-wing aircraft is landing, it can effectively shorten the slide distance and simulate the ultra-short landing mode of a real aircraft. In addition, there are three modes of brake off, ordinary brake and proportional brake. Under ordinary brake mode, the braking force can be adjusted. Under proportional brake mode, the braking force can be automatically distributed through the position of the throttle rocker.

High power BEC, stable and reliable

Upgrade high power programmable switch mode BEC, output voltage 5.2V/6.0V/7.4V three-gear adjustable. Continuous output current 8A, instantaneous 20A, can load more quantity or more power of airborne electronic equipment(more on number or more powerful servo, flight control, airborne lighting, etc.)

Multiple protection, double security

It has multiple protection functions of startup protection, current protection, temperature protection, capacitance temperature protection, overload protection, throttle signal loss protection and input voltage abnormal protection, effectively prolonging the service life of the ESC.

Product parameters：

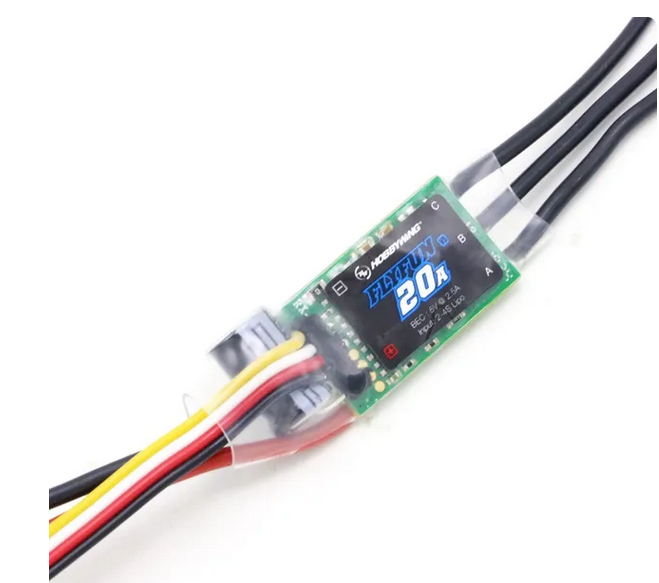

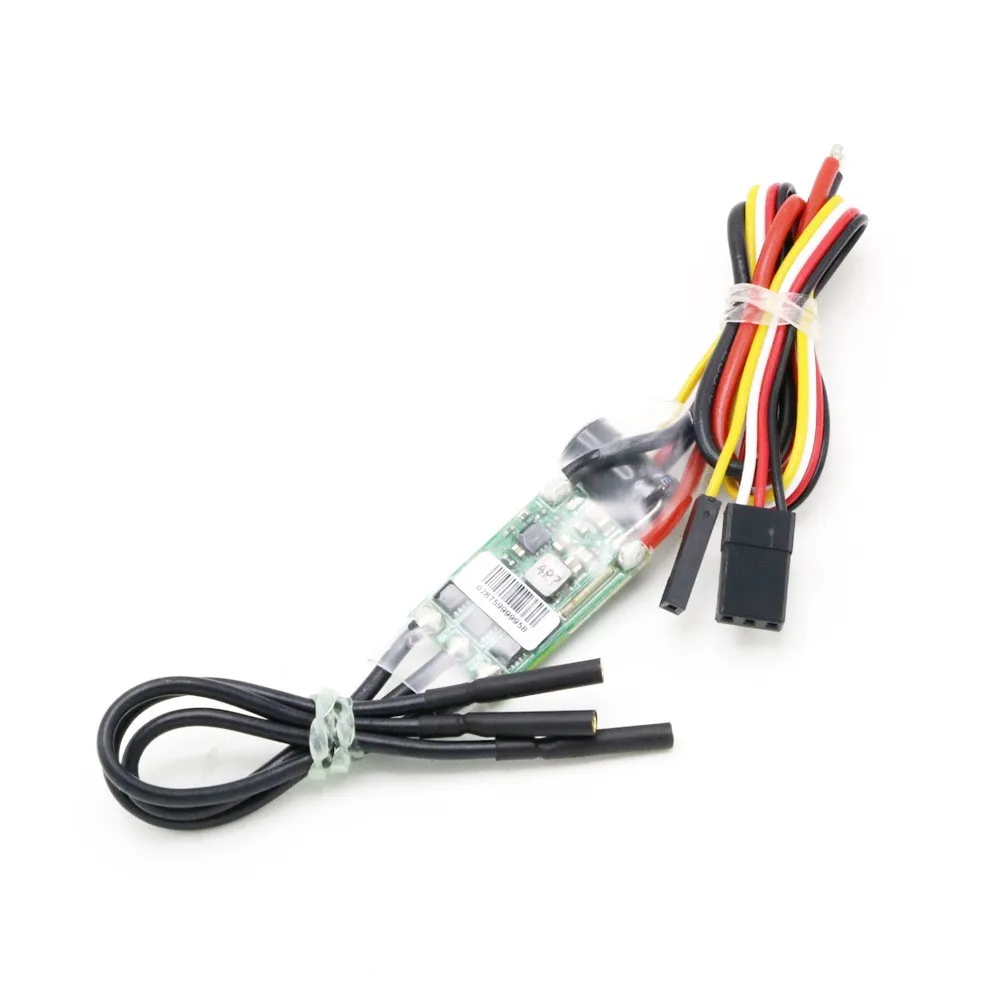

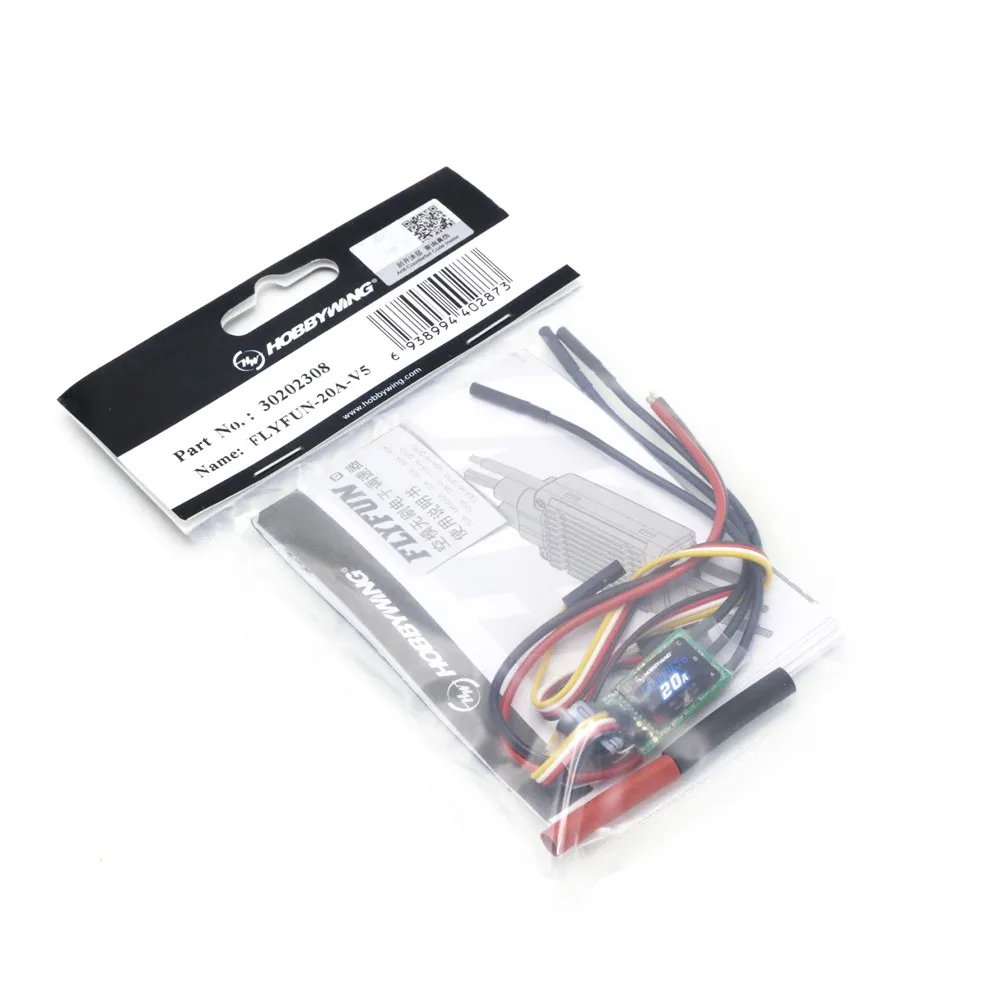

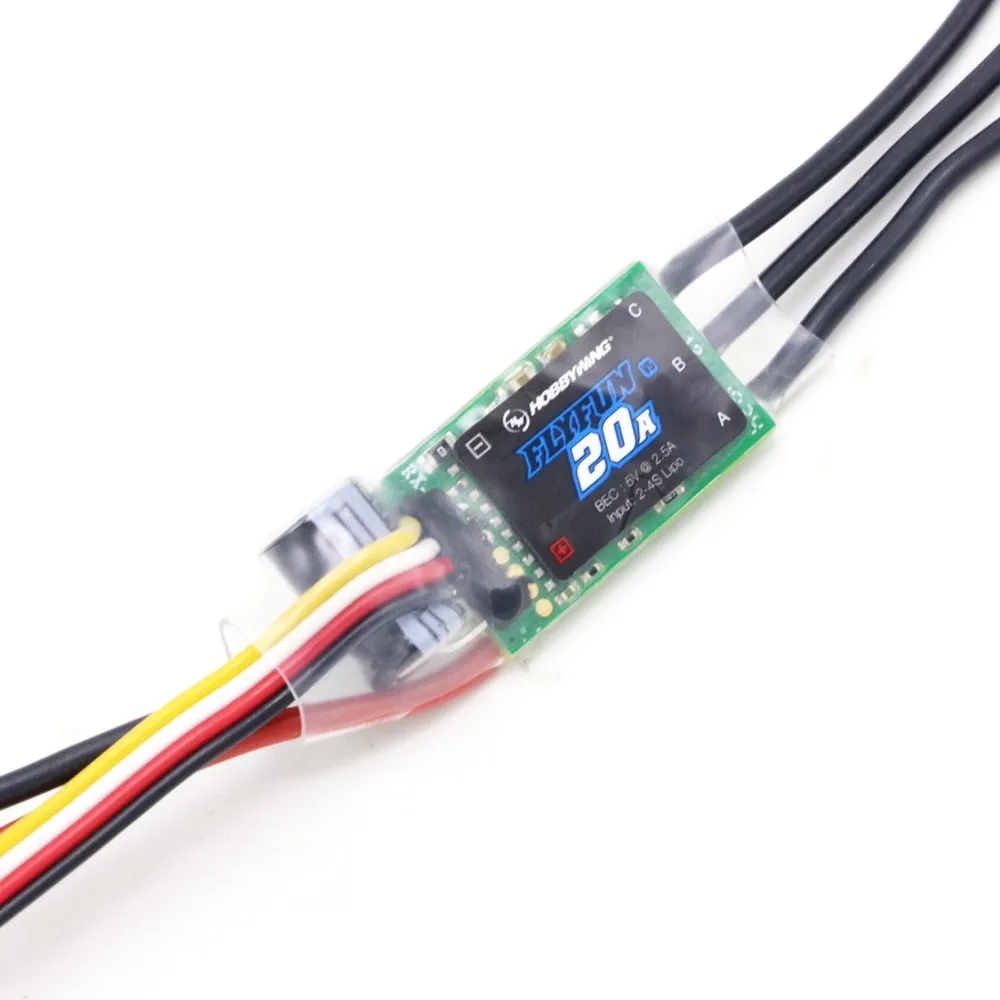

model: FlyFun 20A V5

weight：13g

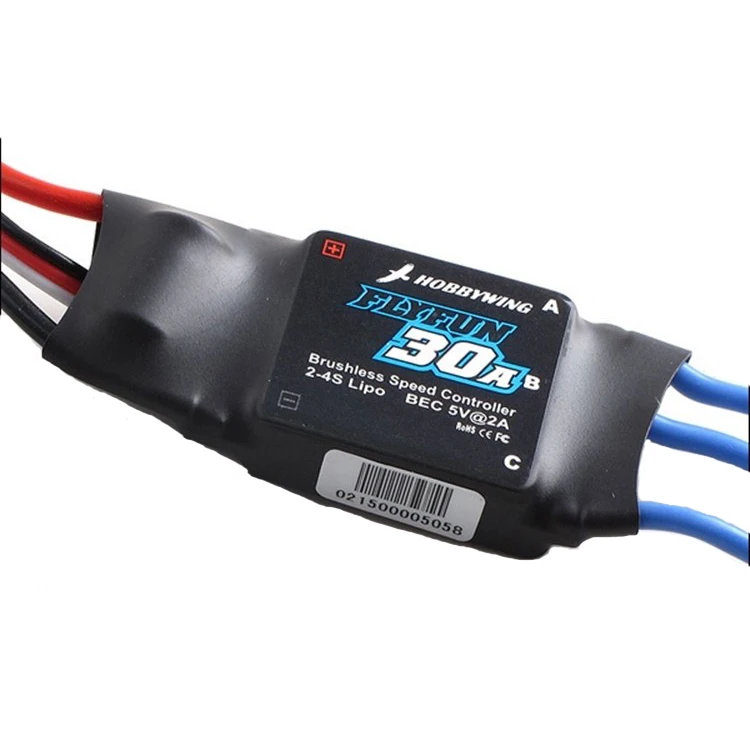

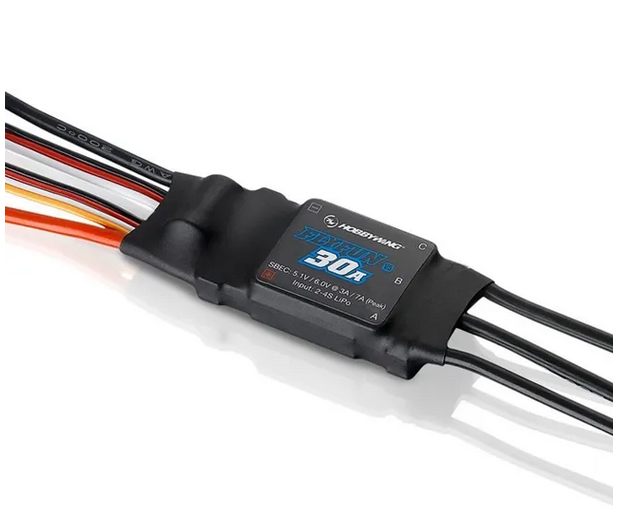

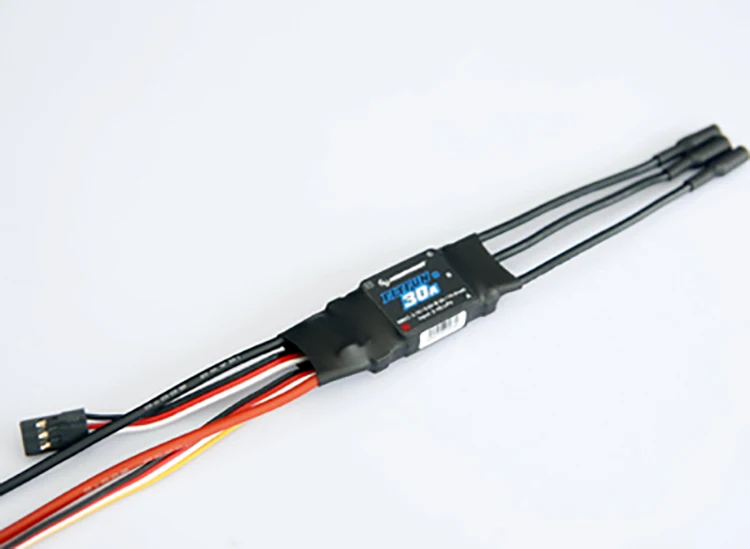

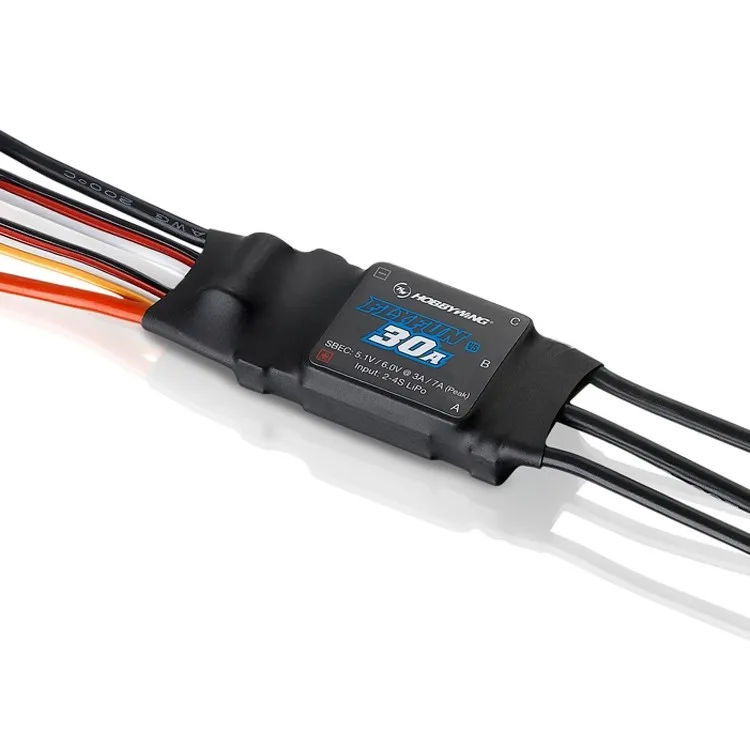

model: FlyFun 30A V5

Current: 30A

Power supply: 2-4s LiPo lithium battery

Switching voltage stabilization BEC, 5.2v/6v two gears adjustable, output current continuous 3A, instantaneous 7A

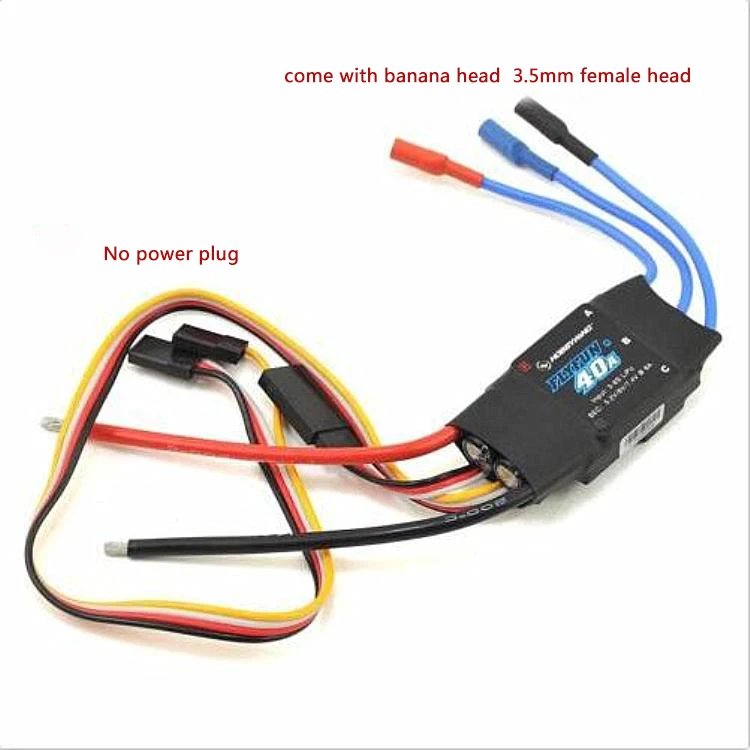

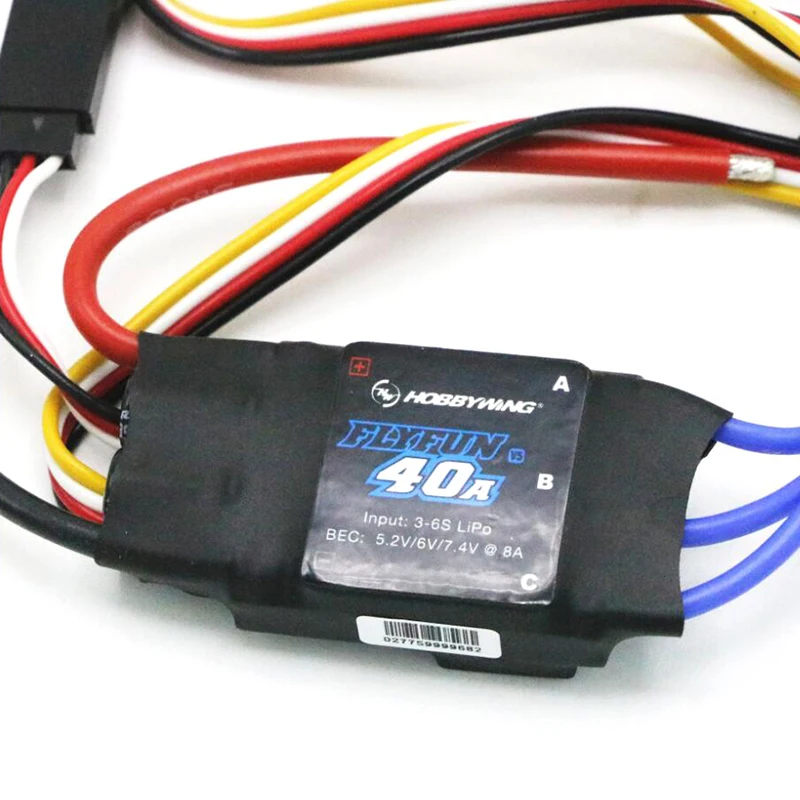

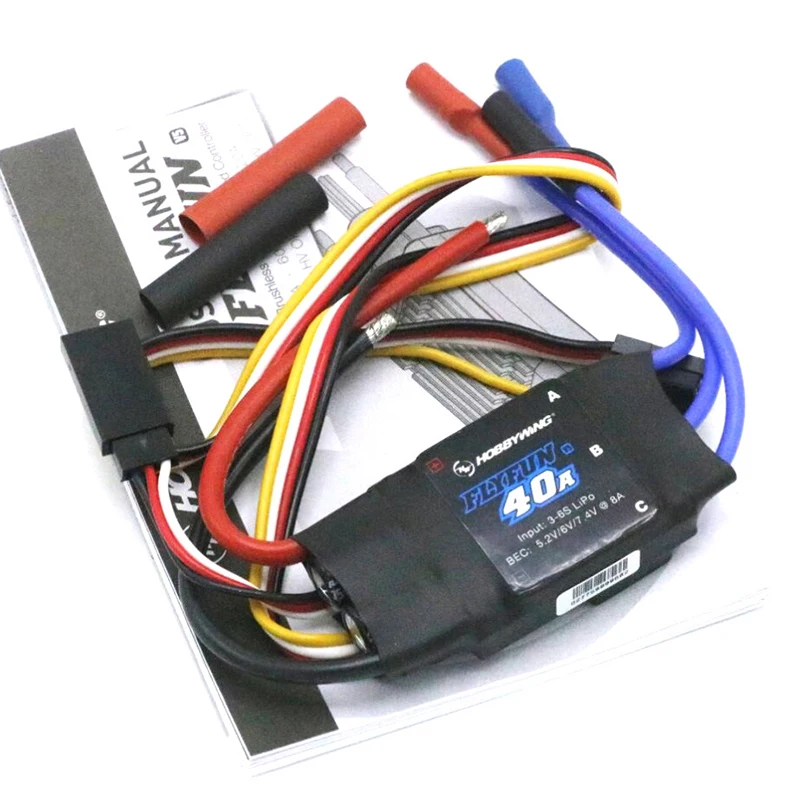

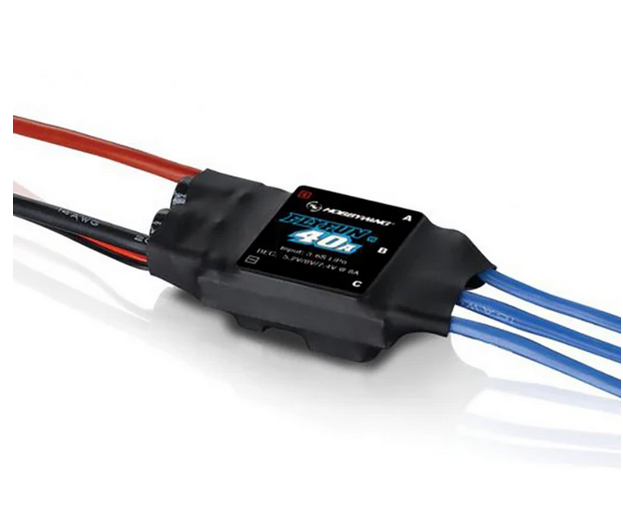

model: FlyFun 40A V5

Power supply: 3-6s LiPo lithium battery

Switching voltage stabilization BEC, 5.2v/6v/7.4v three gears adjustable, output current continuous 8A, instantaneous 20A

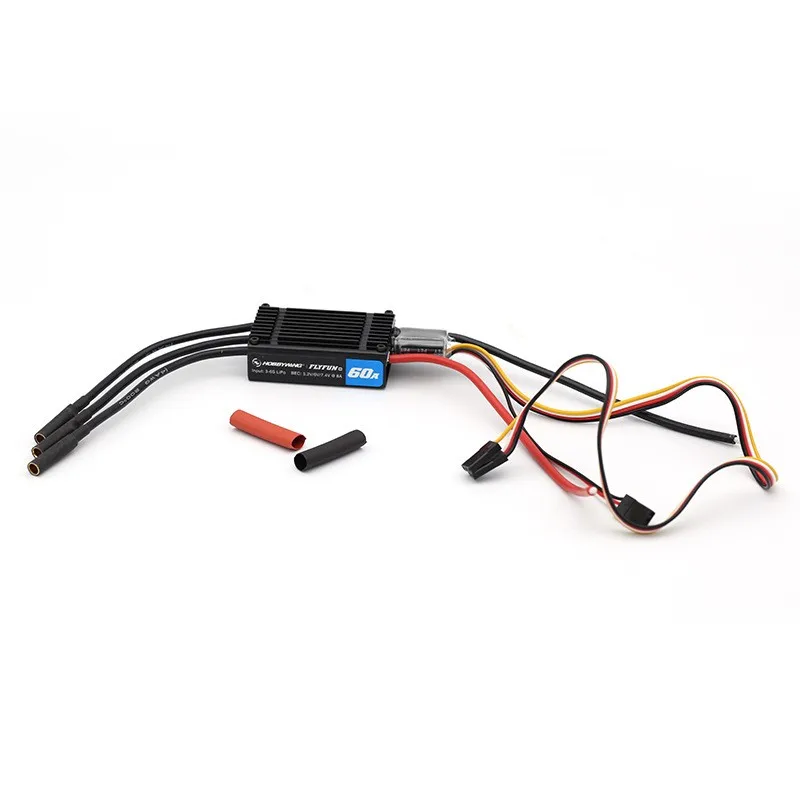

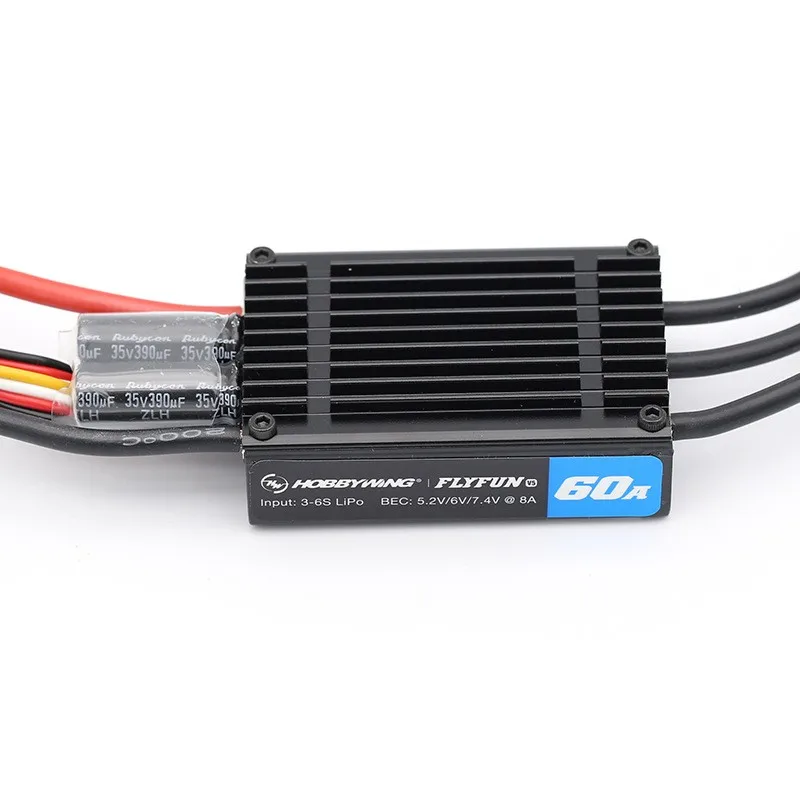

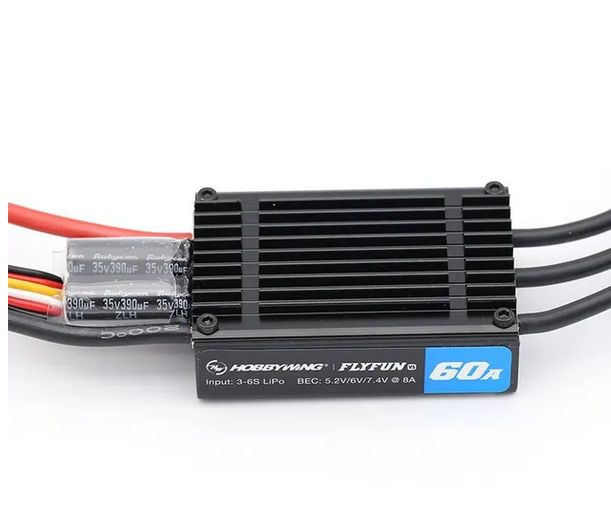

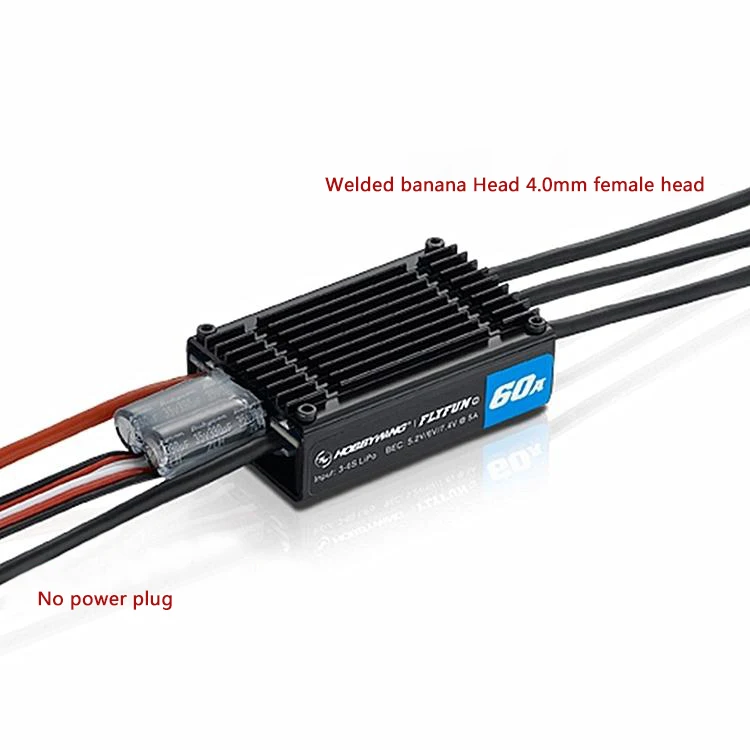

model: FlyFun 60A V5

Current: 60A（Instantaneous 80A）

Power supply: 3-6s LiPo lithium battery

Switching voltage stabilization BEC, 5.2v/6v/7.4v three gears adjustable, output current continuous 8A, instantaneous 20A

Setting card: LED nixie tube setting card, or remote control setting

Size:68.8*34.6*18mm

weight：73.5g

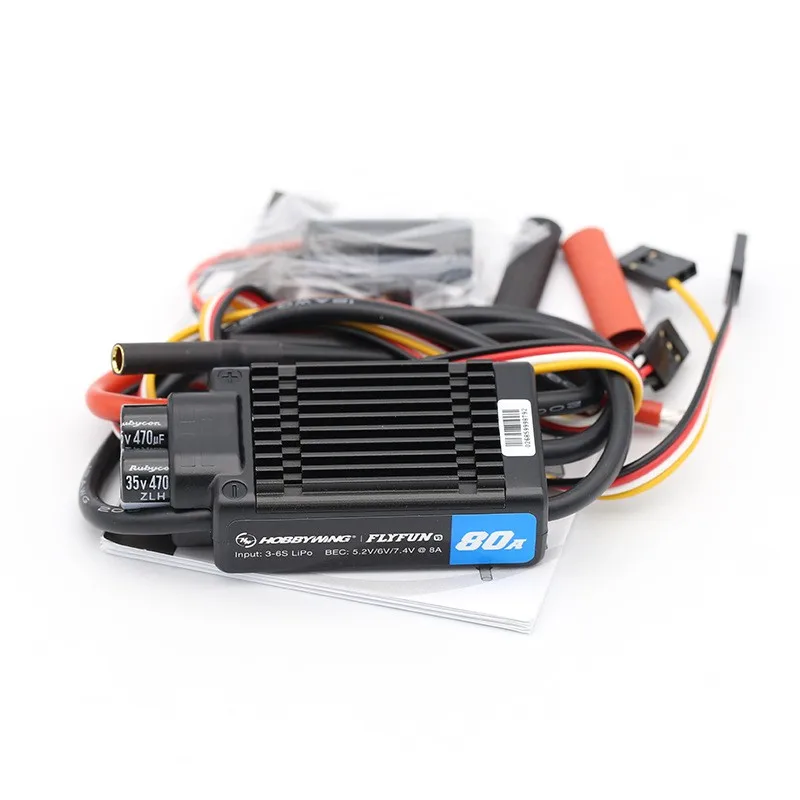

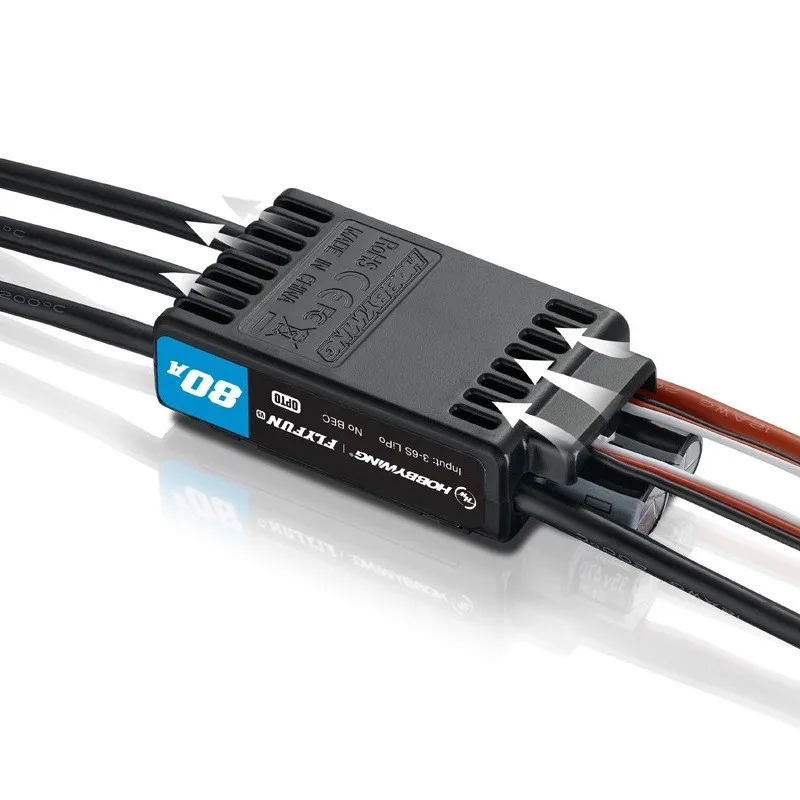

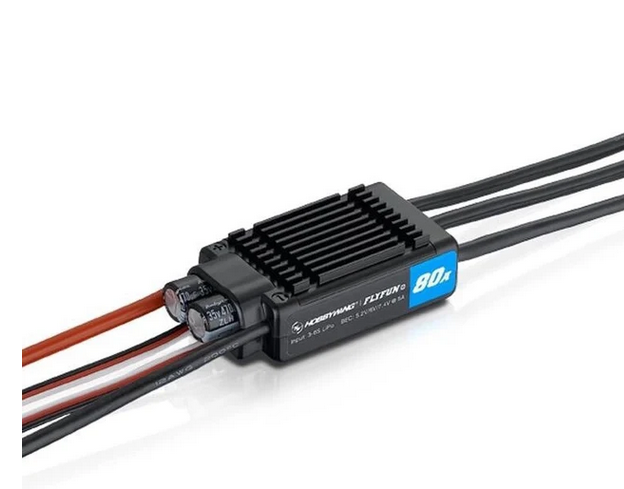

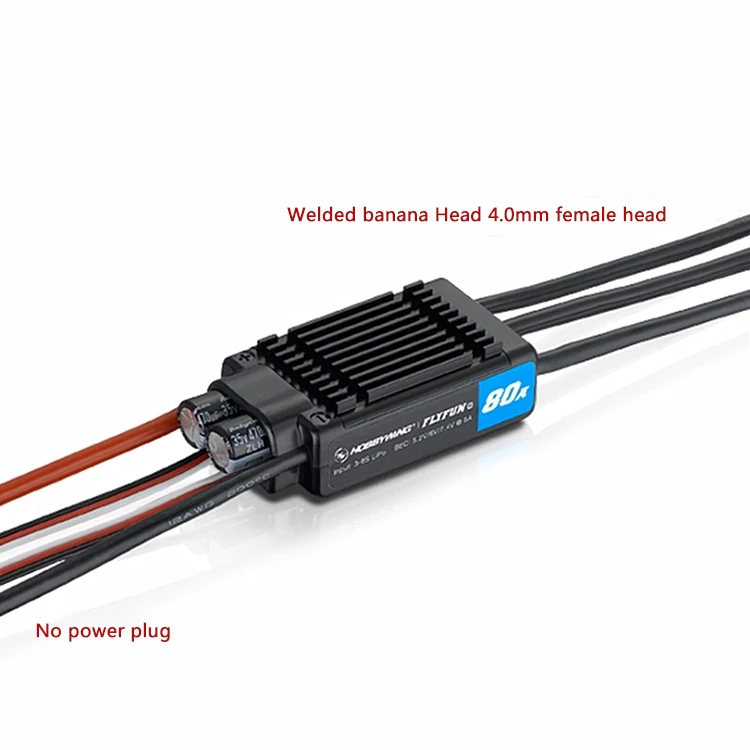

model: FlyFun 80A V5

Current: 80A（Instantaneous 100A）

Power supply: 3-6s LiPo lithium battery

Switching voltage stabilization BEC, 5.2v/6v/7.4v three gears adjustable, output current continuous 8A, instantaneous 20A

Size:69.8*34.6*19.2mm

weight：92g

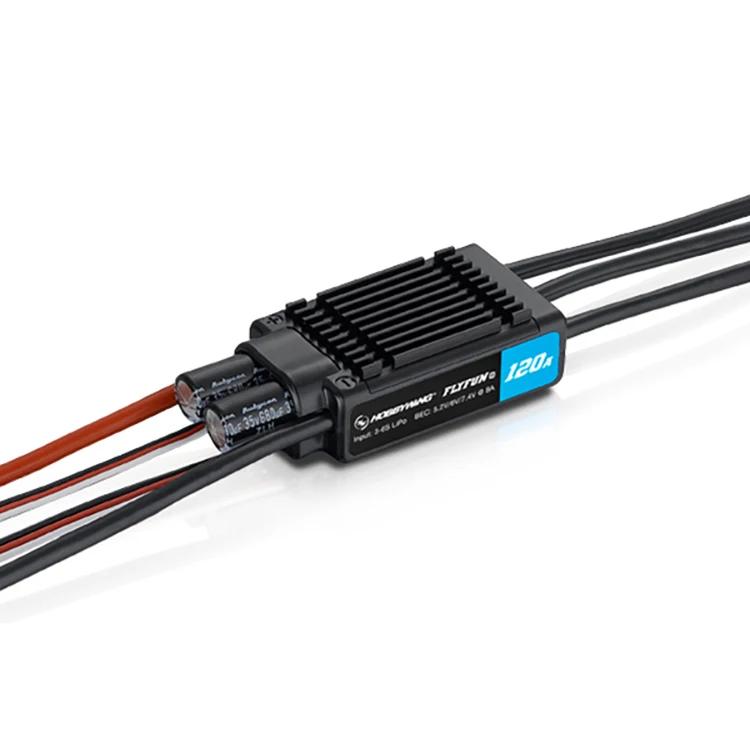

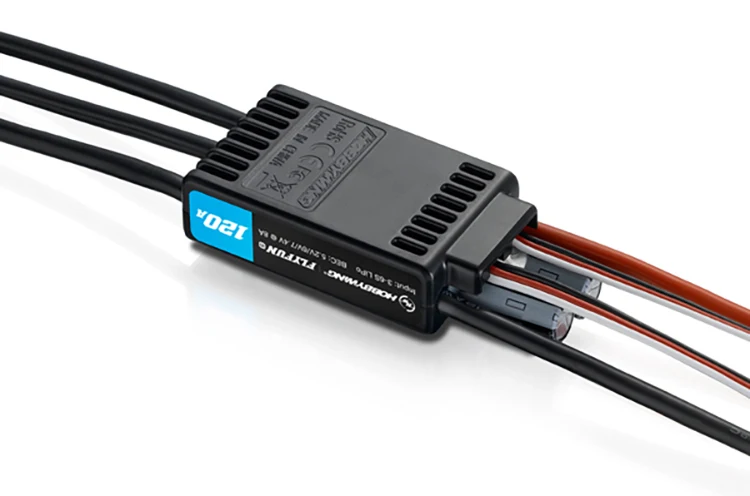

model: FlyFun 120A V5

Number of battery cells: 3-6s Lipo

BEC output: switch voltage stabilization BEC, 5.2v/6v/7.4v three gear adjustable; The output current is 8A continuously and 20A instantaneously

Length of power cord: red -12awg-150mm*1 black -12awg-150mm*1

Length of output wire: Black -12awg-150mm*3

Power plug: None

Output plug: 4.0 gold plug (female)

Remote control setting: support

Led programming box: support

Programming interface: independent programming line

Size: 77.2*34.6*19.2mm

Weight: 93g
