MAD 4014 IPE brushless motor
MAD 4014 IPE brushless motor
MAD 40 series motors are the classic UAV motors for small to medium industrial use, efficient and for endurance flights. These sizes of motors have been released on the market for 10years, MAD Components has optimised them to be very lightweight design. it is also for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor.
| Motor Model | MAD 4014 IPE V1.0 | Number of pole pairs | 12 | ||||||
| Stator | Anticorrosive | Varnished wire Degree | 150°C | ||||||

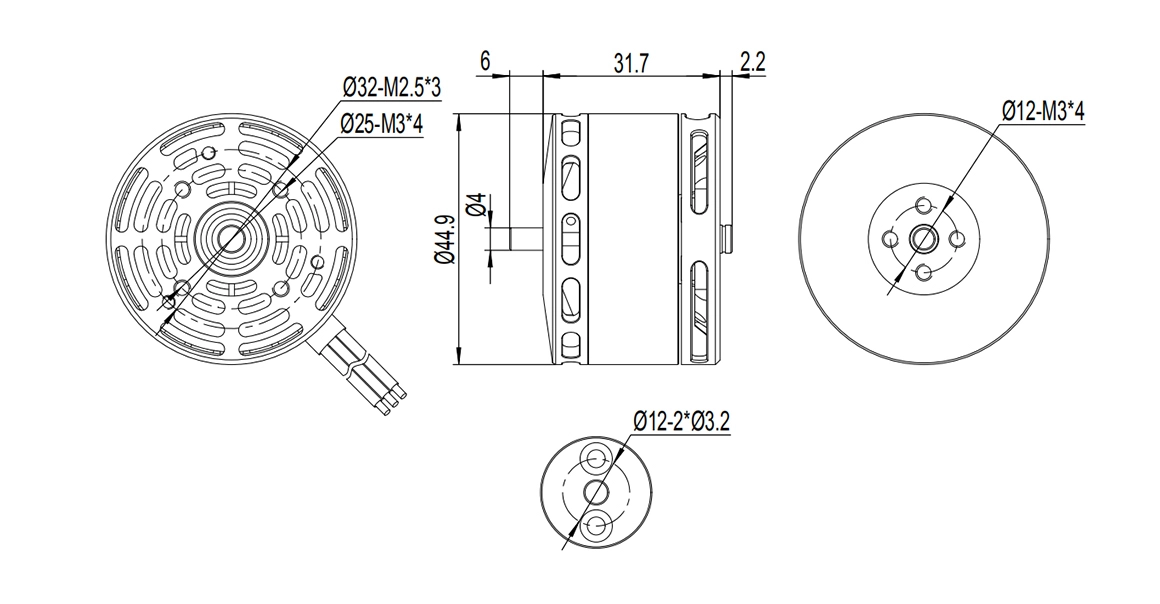

| Motor Size | D:44.9 × 39.9 mm | Magnet Degree | 150°C | ||||||
| Degree of Protection | IP35 | Cable Length | 600 mm 18# Awg(Black) silicone | ||||||
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg | ||||||
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg | ||||||
| Shaft Diameter | IN: 4 mm | Motor Mounting Holes | D:25 M3×4, D:32 M2.5×3 | ||||||
| Bearing | EZO 685ZZ*1 / EZO 695ZZ*1 | Disruptive test | 500 V | ||||||
