MAD 5012 IPE V3.0 brushless motor
MAD 5012 IPE V3.0 brushless motor

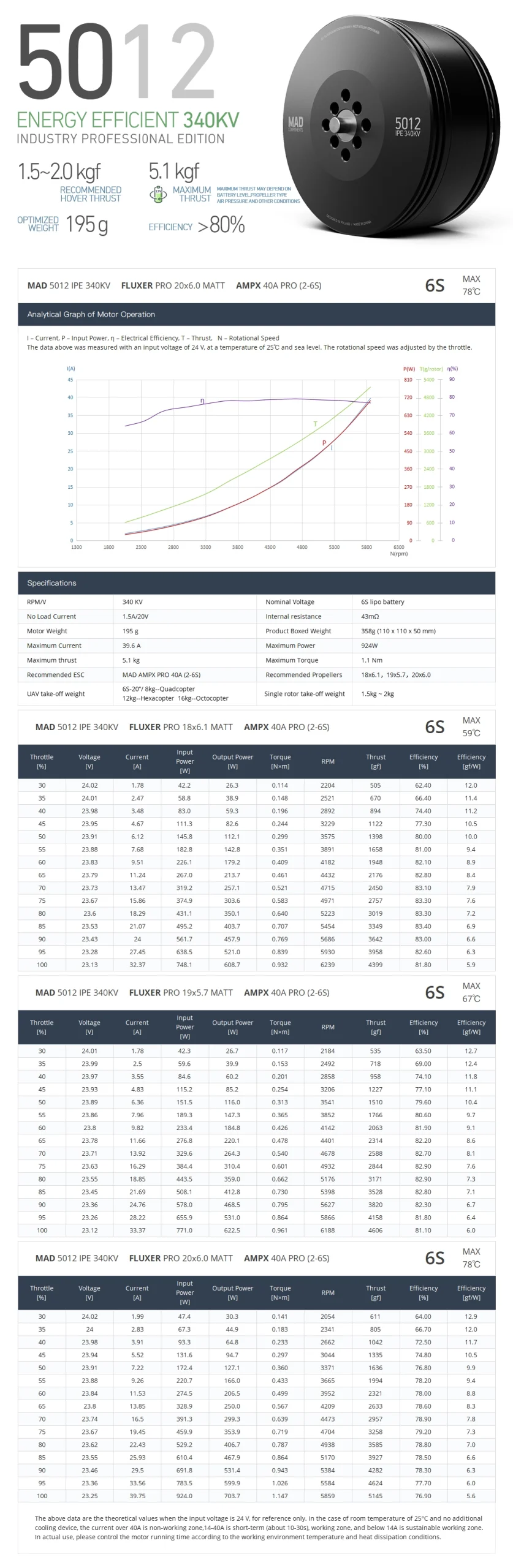

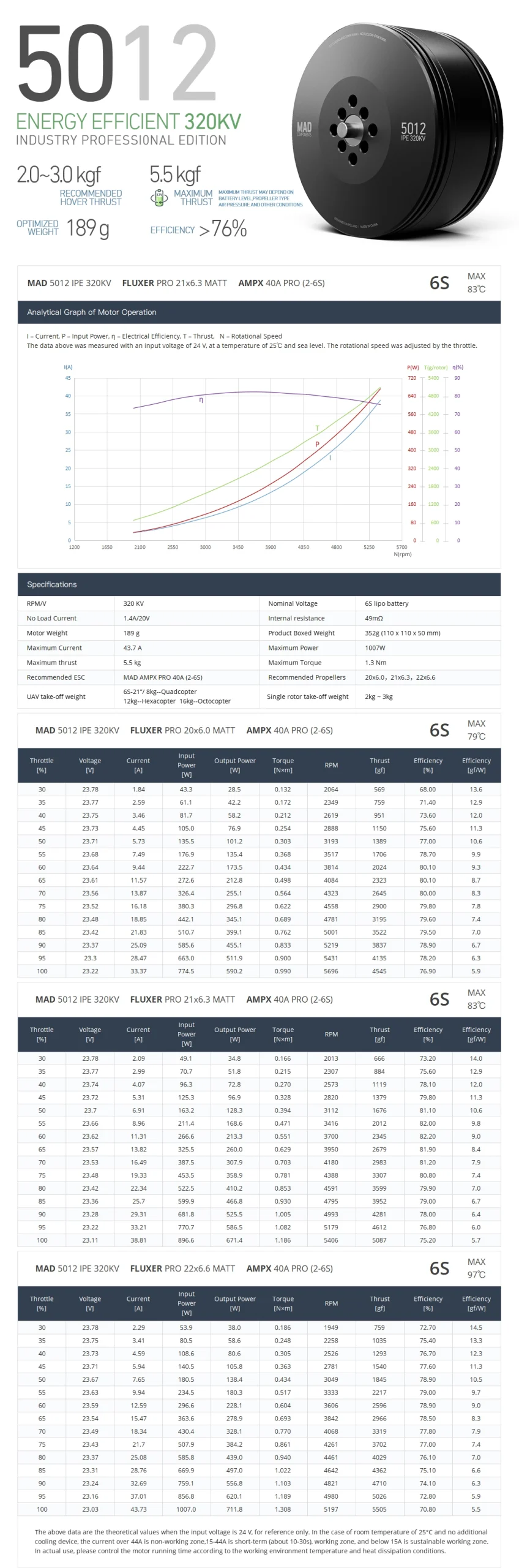

Popular motors 5012 250KV and 320KV for the take-off weight aircraft 7.6-10kg(8S for quadcopter, 6S for VTOL), users like them because they want more redundancy for their aircraft to replace 5010 brushless motor.80KV will be available for servmotor.it is widely used for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor.
| Specification | |||||||||
| Motor Model | MAD 5012 IPE V3.0 | Number of pole pairs | 14 | ||||||
| Stator | Anticorrosive | Varnished wire Degree | 180°C | ||||||
| Motor Size | D:56 × 33.3 mm | Magnet Degree | 150°C | ||||||
| Degree of Protection | IP45 | Cable Length | 150 mm 16# Awg(Black) silicone | ||||||
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg | ||||||
| Propeller Mounting Holes | D:12 M3×4, D:15 M3×4 | Motor Balance | ≤10 mg | ||||||
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4 | ||||||
| Bearing | EZO 696ZZ*2 | Disruptive test | 500 V | ||||||
