MAD M20 MiNi IPE brushless drone motor
MAD M20 MiNi IPE brushless drone motor
M Series motors are the flagship motors designed specifically for large multi-rotor electric paragliders, large agricultural tethered VTOLs, UAVs. Used for aerial photography, mapping, electric paragliding, agricultural spraying, surveying or anything in between where professional industrial grade propulsion systems are required. This type of motor is made with industrial grade components, it is for the long flight time multirotor hexacopter octocopte for the long flight time tethered drone.
Motor Data | |||
| Motor Model | MAD M20 IPE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |

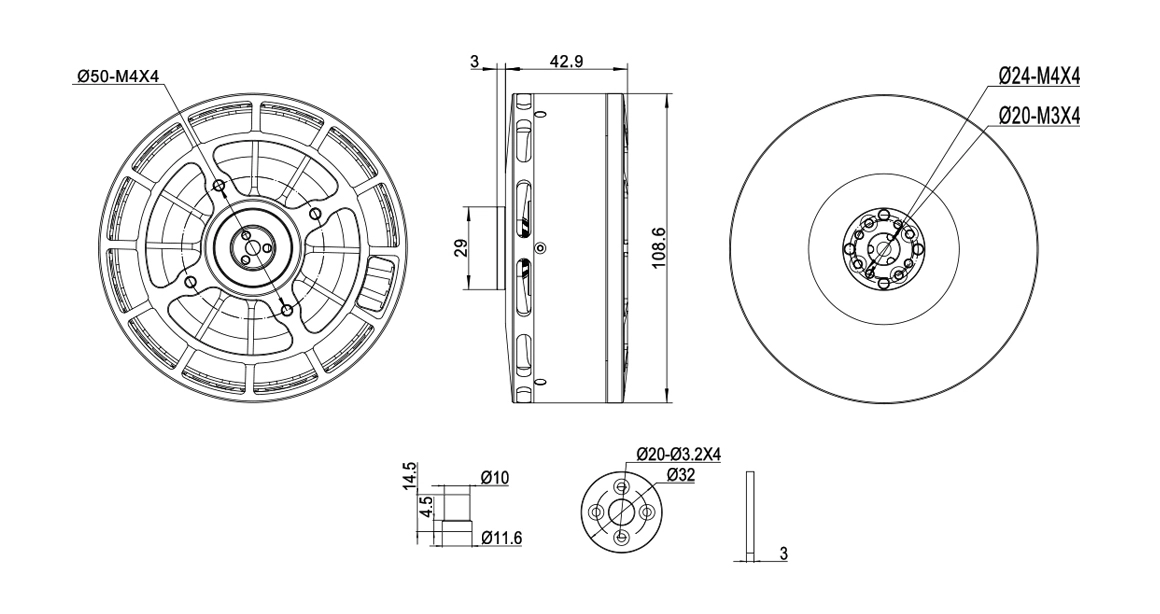

| Motor Size | D:108.6 × 45.9 mm | Motor Balance | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:24 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:50 M4×4 |
| Bearing | 6902ZZ*2 | Disruptive test | 500 V |
