MAD M6C10 EEE brushless drone motor
MAD M6C10 EEE brushless drone motor
Our ANTIMATTER brand motors are defined as “not ordinary” in the field of multi-rotor motors. We are proud to launch the ANTIMATTER series motors (M6C06, M6C08, M6C10, M6C12) at the end of 2019. We spent a year designing and proving which drone motors are the most efficient with 21-24in props. This is the magic! MAD Components in Poland.
Antimatter M6C10 EEE is designed to carry a payload of 2.5-4kg, supports 6S-12S voltage.
| Specification | |||||||||
| Motor Model | MAD M6C10 EEE V2.0 | Number of pole pairs | 14 | ||||||
| Stator | Anticorrosive | Varnished wire Degree | 180°C | ||||||

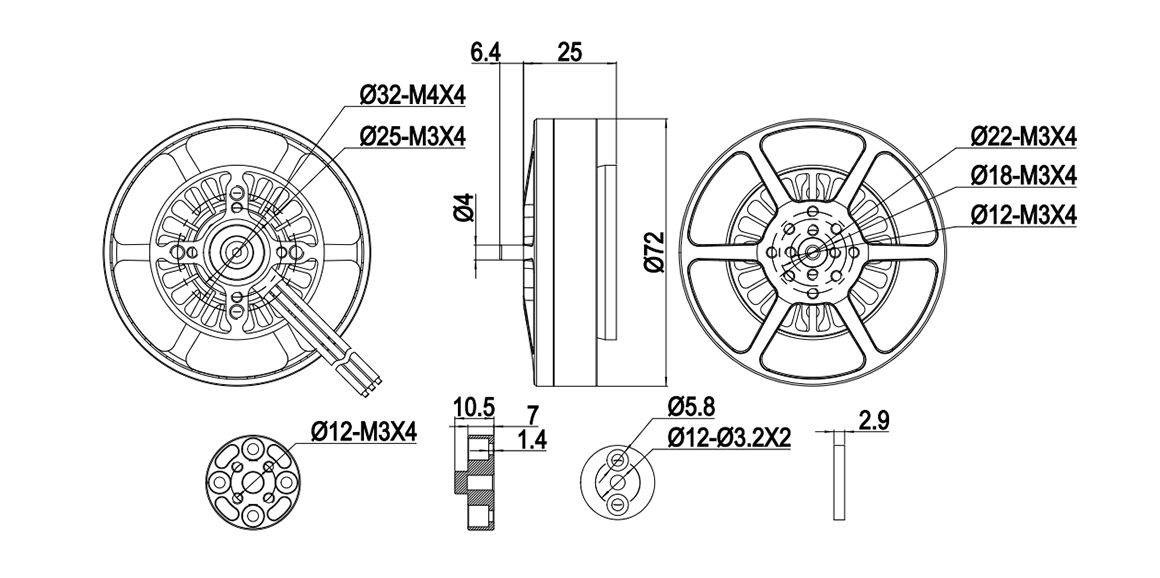

| Motor Size | D:72 × 31.4 mm | Magnet Degree | 150°C | ||||||
| Degree of Protection | Rain protection | Cable Length | 60 mm 16# Awg(Black) silicone | ||||||
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg | ||||||
| Propeller Mounting Holes | D:12 M3×4,D:18 M3×4,D:22 M3×4 | Motor Balance | ≤10 mg | ||||||
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4, D:32 M4×4 | ||||||
| Bearing | EZO 696ZZ*2 | Disruptive test | 500 V | ||||||
