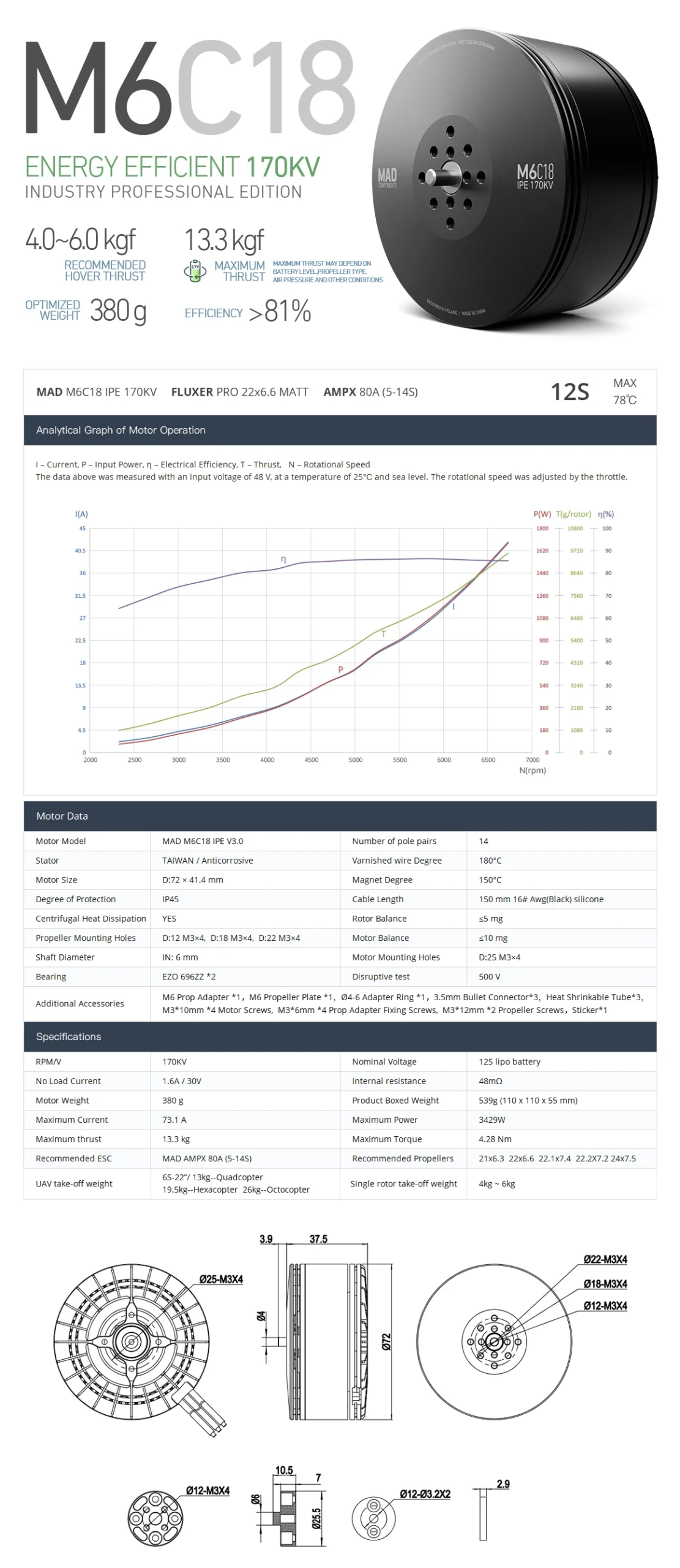

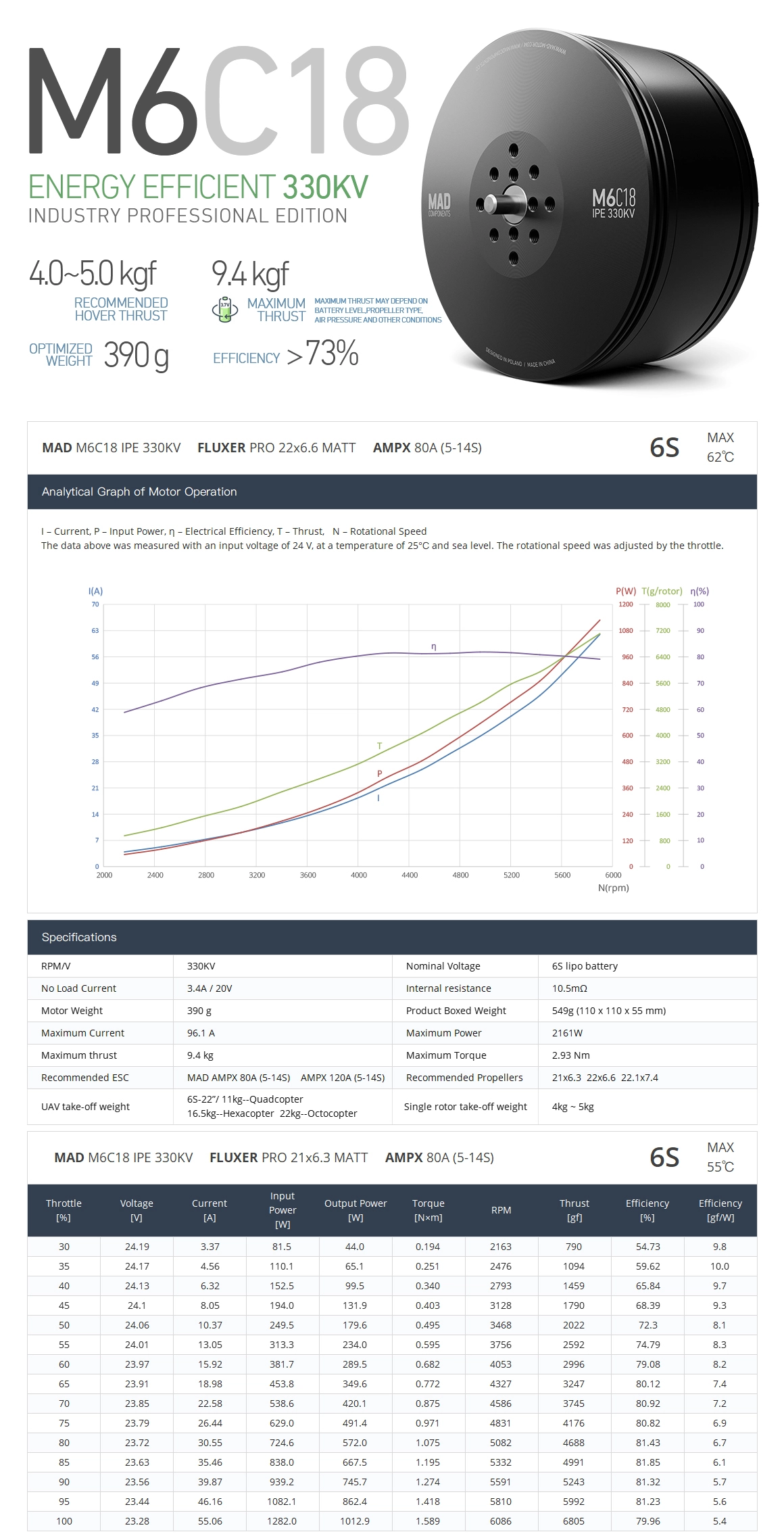

MAD M6C18 IPE V3 brushless drone motor
MAD M6C18 IPE V3 brushless drone motor
Our ANTIMATTER brand motors are defined as “not ordinary” in the field of multi-rotor motors. We are proud to launch the ANTIMATTER series motors (M6C06, M6C08, M6C10, M6C12) at the end of 2019. We spent a year designing and proving which drone motors are the most efficient with 21-24in props. This is the magic! MAD Components in Poland.
Antimatter M6C18 EEE is designed to carry a payload of 3.5-5kg, supports 6S-12S voltage.
Motor Data | |||
| Motor Model | MAD M6C18 IPE V3.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 41.4 mm | Motor Balance | 150°C |
| Degree of Protection | IP45 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4, 18 M3×4, 22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4 |
| Bearing | 696ZZ *2 | Disruptive test | 500 V |
