MAD M8C08 EEE V3 brushless drone motor
MAD M8C08 EEE V3 brushless drone motor
8108 motor is the most classic product among UAV motors. MAD M8 is one of the most efficient motors among them and the most widely used motors for UAV of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc. Endurance flight time varies from 30-120min.
M8 EEE V3 is the latest version of MAD 8108 EEE, more efficient and lighter, great for endurance flight.

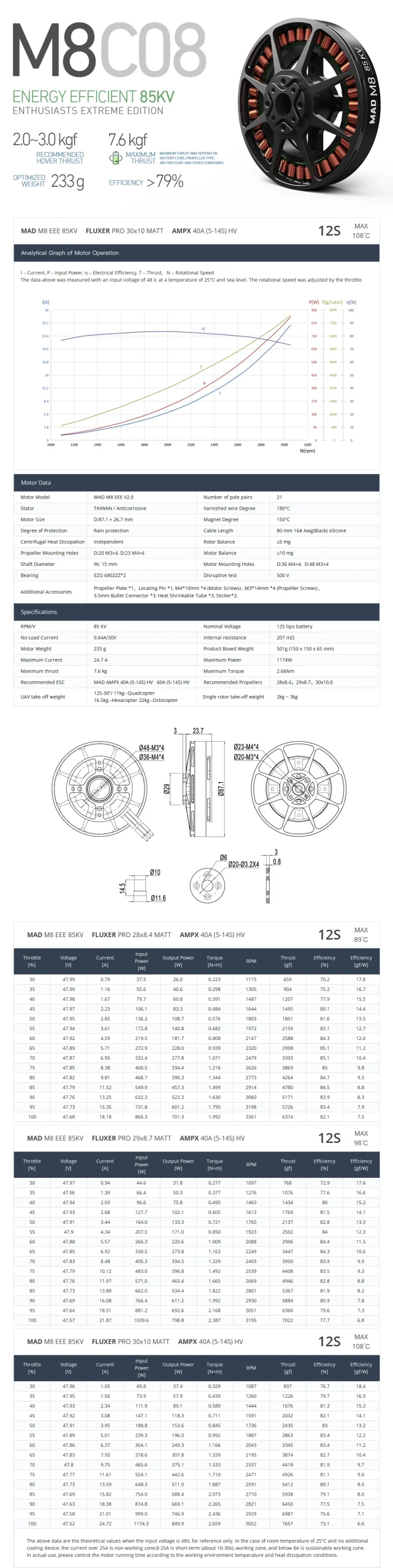

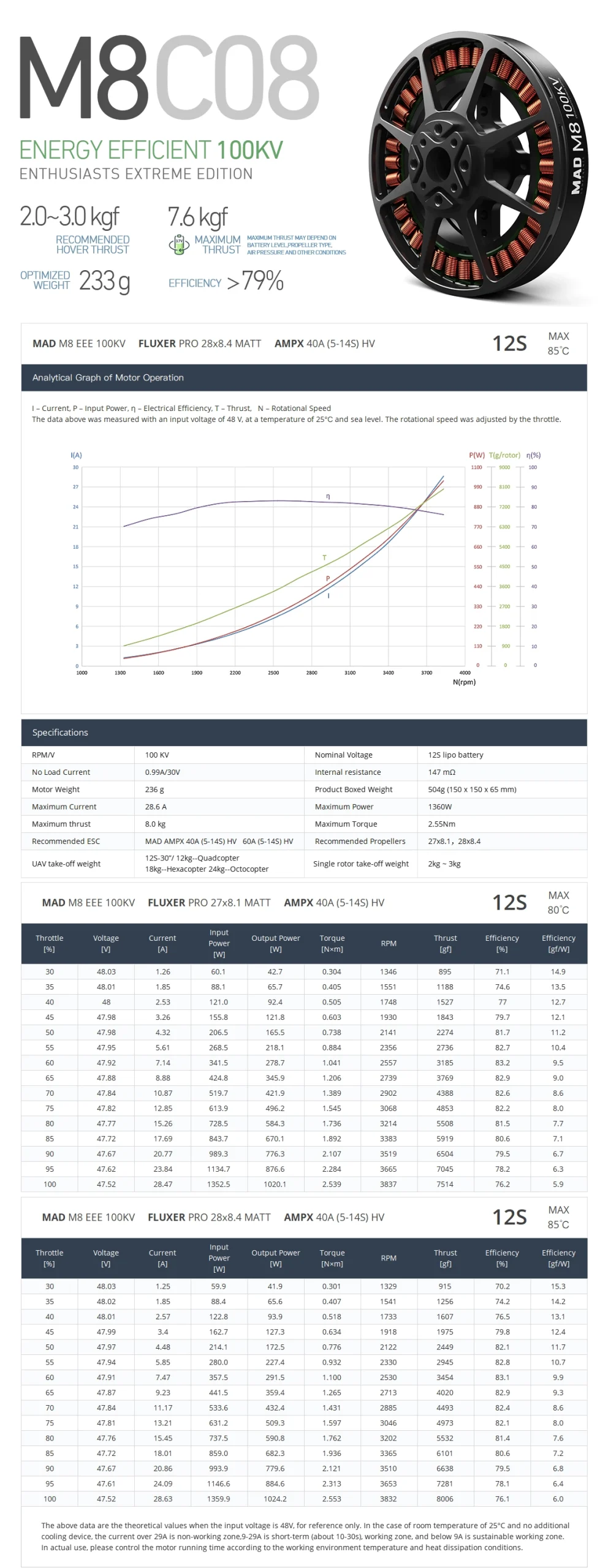

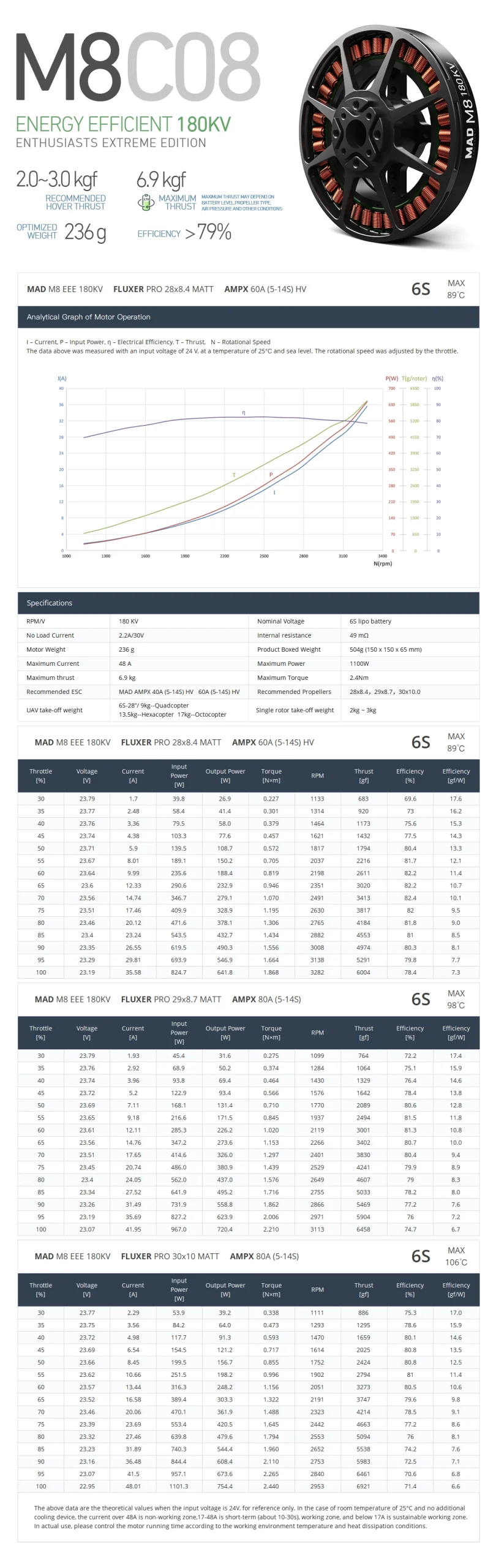

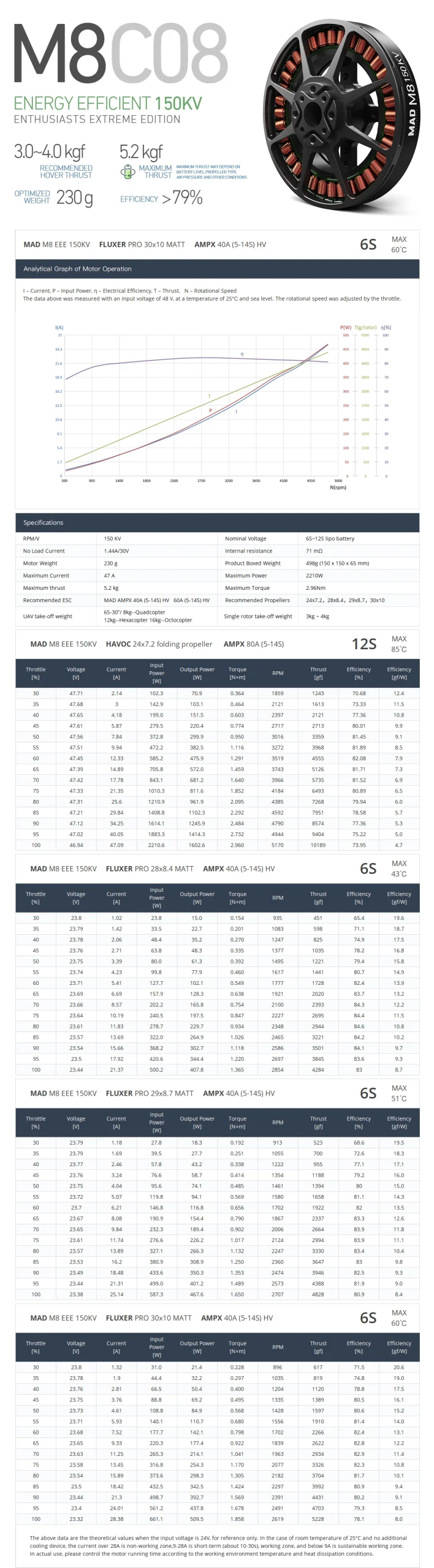

Motor Data | |||
| Motor Model | MAD M8C08 EEE V2.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:87.1 × 26.7 mm | Motor Balance | 150°C |
| Degree of Protection | Rain protection | Cable Length | 80 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:36 M4×4,  D:48 M3×4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |
