MAD M6C18 IPE V3 brushless drone motor $179.00

MAD M8C10 IPE brushless drone motor

$279.00

M8C10 motor is the most classic product among UAV motors and the most widely used motors for UAV of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc. Endurance flight time varies from 30-120mins.It is for the long flight time multirotor hexacopter octocopter.



Clear
Compare
Add to wishlist
SKU: N/A Categories: , , ,
Description

MAD M8C10 IPE brushless drone motor

MAD M8C10 IPE brushless drone motor

M8C10 motor is the most classic product among UAV motors and the most widely used motors for UAV of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc. Endurance flight time varies from 30-120mins.It is for the long flight time multirotor hexacopter octocopter.

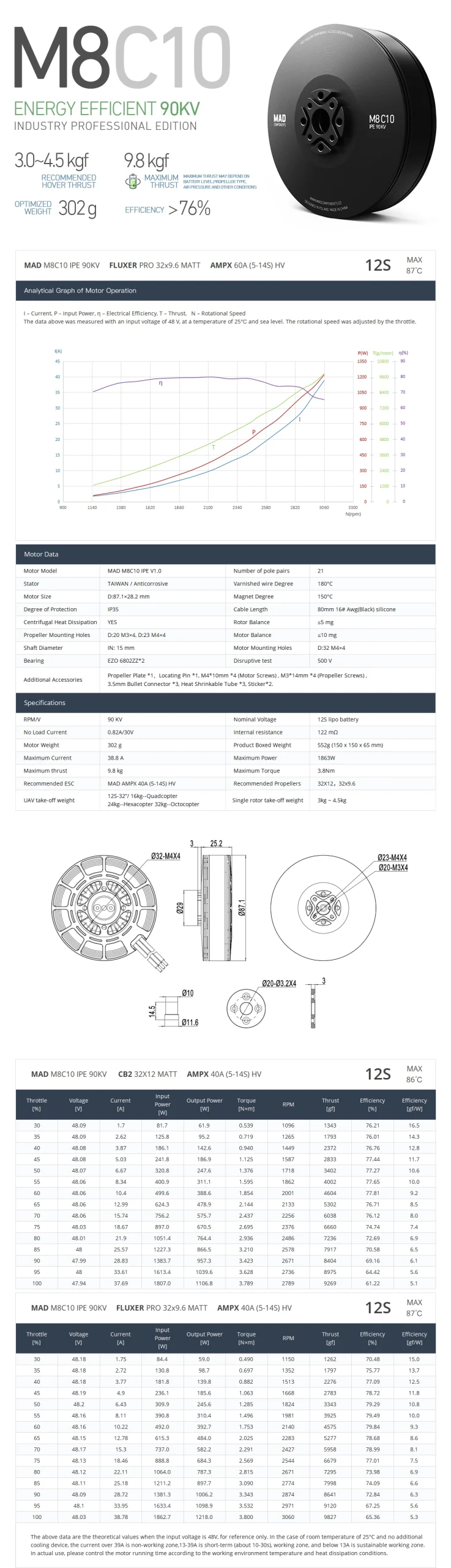

Motor Data

Motor ModelMAD M8C10 IPE V1.0Number of pole pairs21
StatorAnticorrosiveVarnished wire Degree180°C
Motor SizeD:87.1 × 28.2 mmMotor Balance150°C
Degree of ProtectionIP35Cable Length80 mm 16# Awg(Black) silicone
Centrifugal Heat DissipationYESRotor Balance≤5 mg
Propeller Mounting HolesD:20 M3×4, D:23 M4×4Motor Balance≤10 mg
Shaft DiameterIN: 15 mmMotor Mounting HolesD:32 M4×4
Bearing6802ZZ*2Disruptive test500 V



Additional information
Weight N/A
Dimensions N/A
KV 100KV , 90KV
