MAD M40C30 PRO IPE brushless drone motor

$1,068.00

1.The case is equipped with large locating bearings to eliminate resonance and gyroscopic effects.
2. Maximum thrust of 70kg, designed for agricultural pest control and professional applications.
3. 43KV recommend:ESC：AMPX 300A (12-24s)   propeller:fluxer glossy 47.5×17.4 pro,
4. 35KV recommend: HB30-54×24,
5. 10KV motor with FOC ESC combo recommend:HB30-54×24,HB30-CB2 47.5×18. 5 , HB30 47.5×17.4,HB30-52×19

Clear
Compare
Add to wishlist
SKU: N/A Categories: , , ,
Description

MAD M40C30 PRO IPE brushless drone motor

MAD M40C30 PRO IPE brushless drone motor

1.The case is equipped with large locating bearings to eliminate resonance and gyroscopic effects.
2. Maximum thrust of 70kg, designed for agricultural pest control and professional applications.

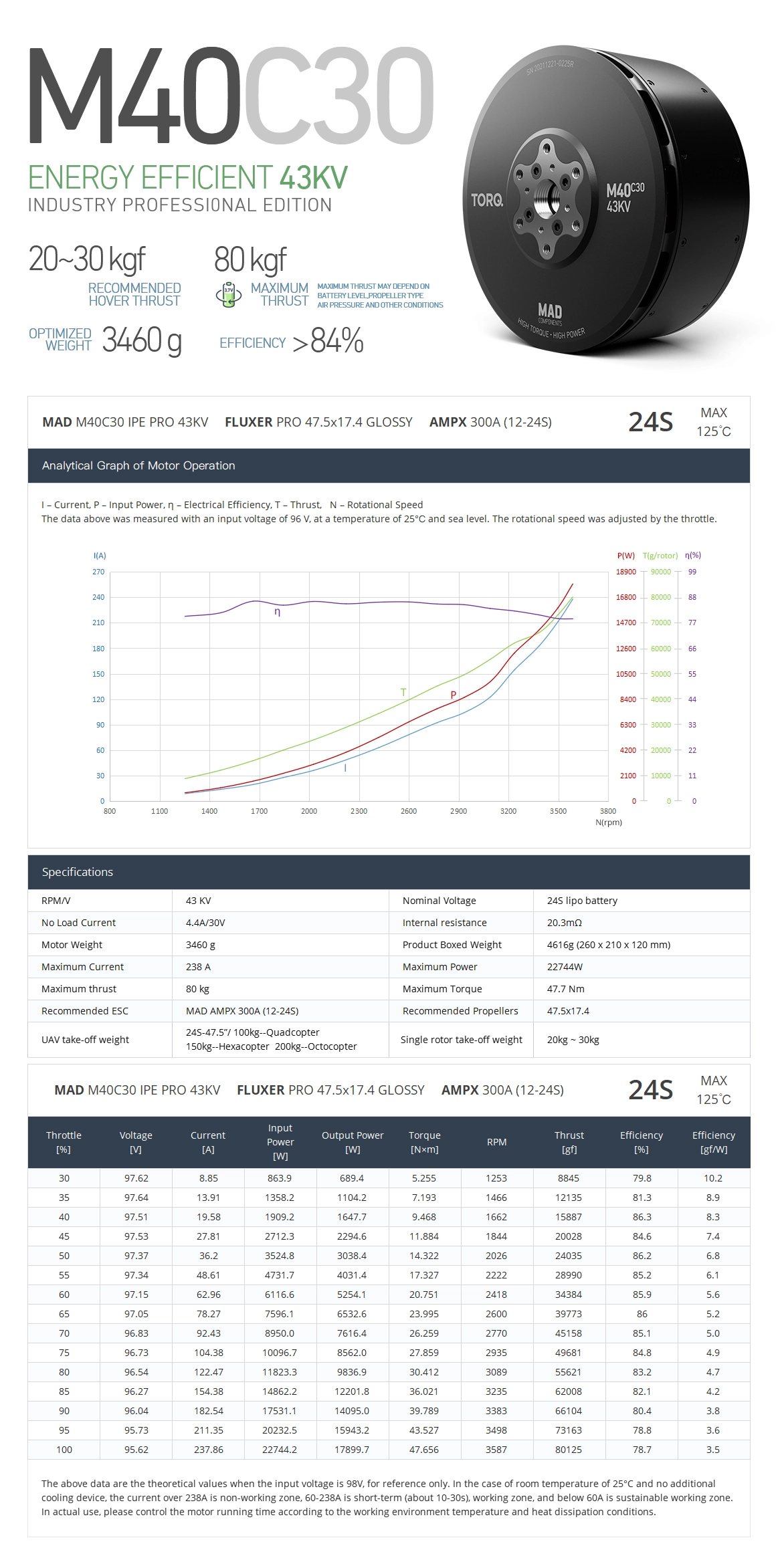

3. 43KV recommend:ESC：AMPX 300A (12-24s)   propeller:fluxer glossy 47.5×17.4 pro,
4. 35KV recommend: HB30-54×24,
5. 10KV motor with FOC ESC combo recommend:HB30-54×24,HB30-CB2 47.5×18. 5 , HB30 47.5×17.4,HB30-52×19

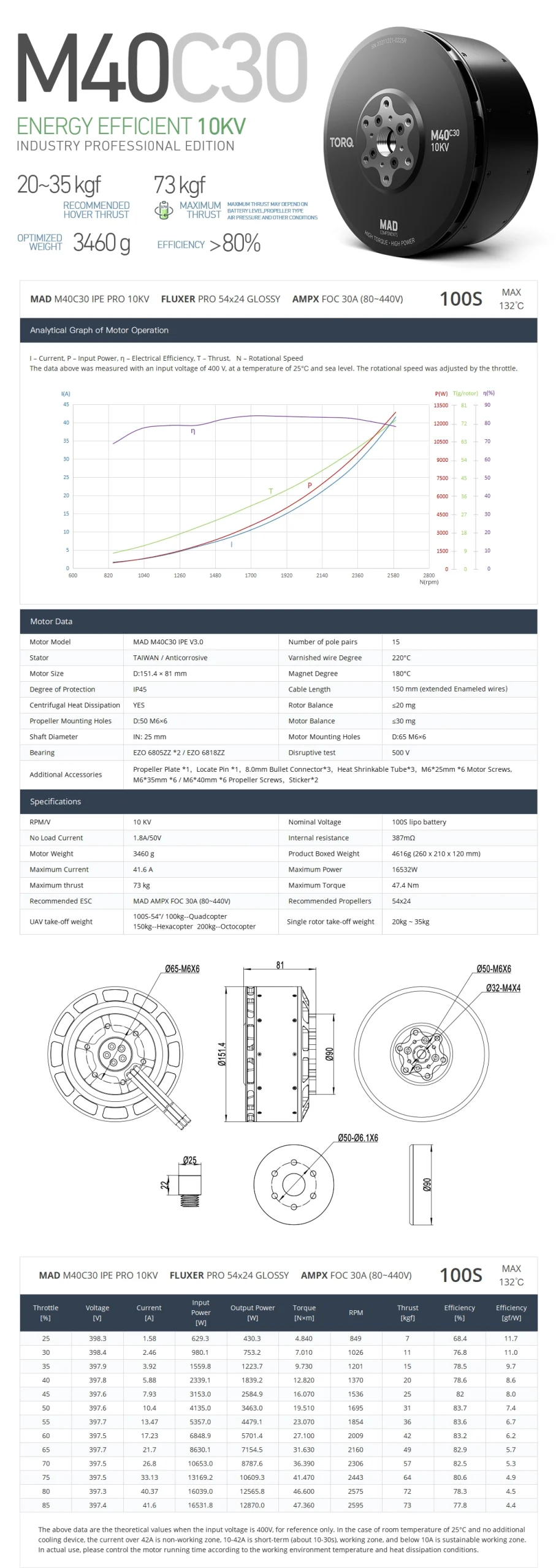

Motor Data

Motor ModelMAD M40C30 IPE V3.0Number of pole pairs15
StatorAnticorrosiveVarnished wire Degree220°C

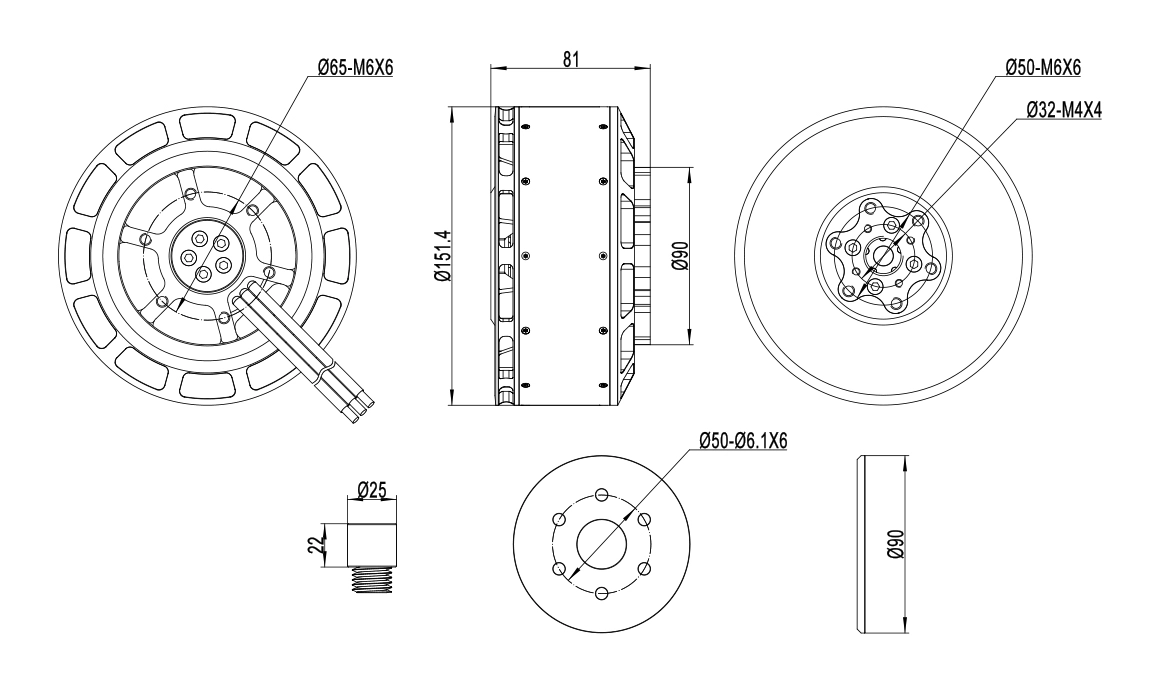

Motor SizeD:151.4 × 81 mmMotor Balance180°C
Degree of ProtectionIP45Cable Length150 mm (extended Enameled wires）
Centrifugal Heat DissipationYESRotor Balance≤20 mg
Propeller Mounting HolesD:50 M6×6Motor Balance≤30 mg
Shaft DiameterIN: 25 mmMotor Mounting HolesD:65 M6×6
Bearing6805ZZ *2 / 6818ZZDisruptive test500 V

Additional information
Weight N/A
Dimensions N/A
KV 43KV-24S , 10KV-100S , 35KV-24s
