MAD M8C10 EEE brushless drone motor $299.00

MAD M50C35 PRO IPE Manned Drone Motor

$1,299.00

1.The power is 25 KW(40kg continue thrust), which is equal to 29 horsepower.

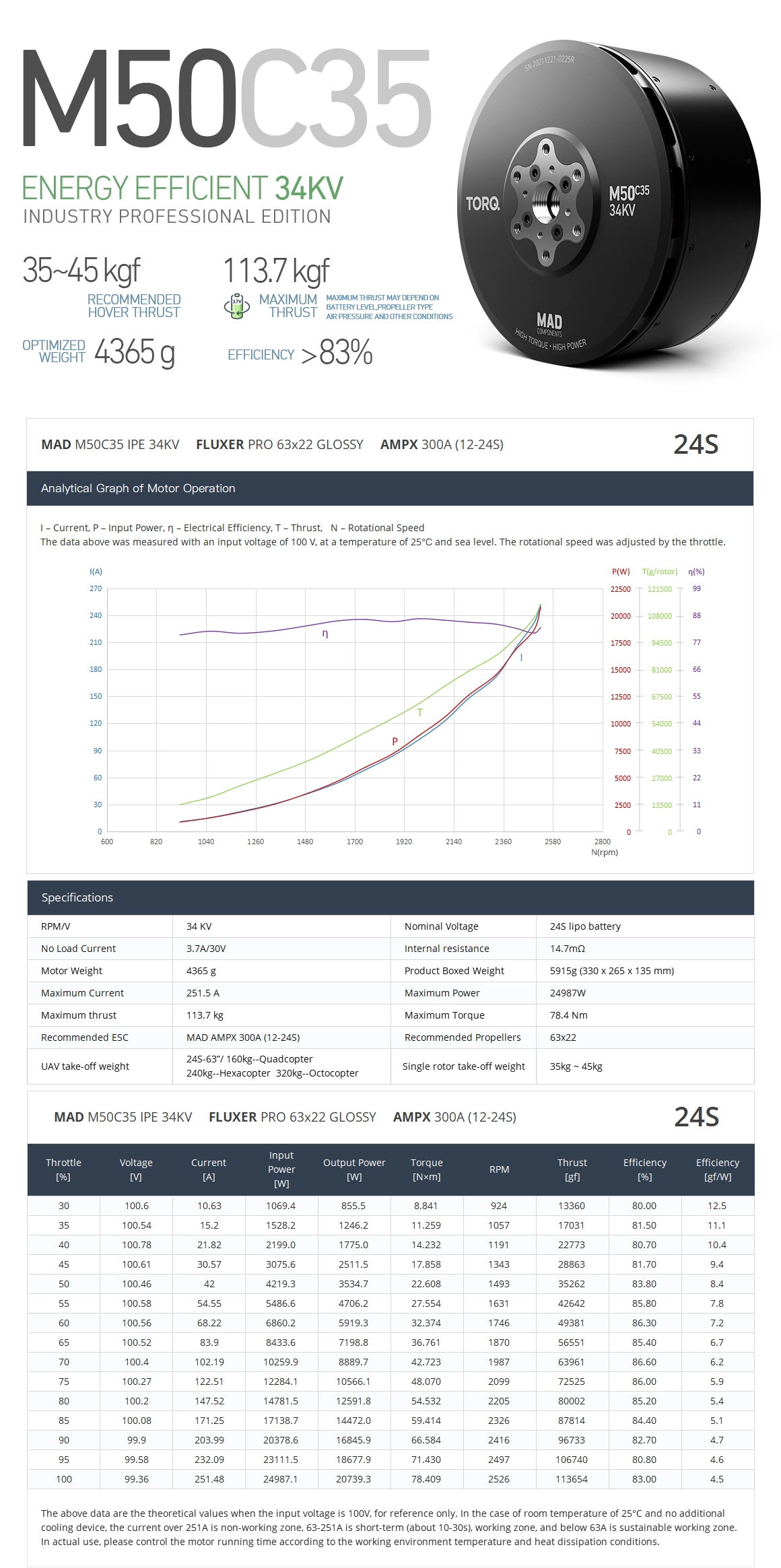

2.34KV Recommend ESC:AMPX 300A(12-24S) propeller： CB2 prop 63X22″ inch carbon fiber propeller.

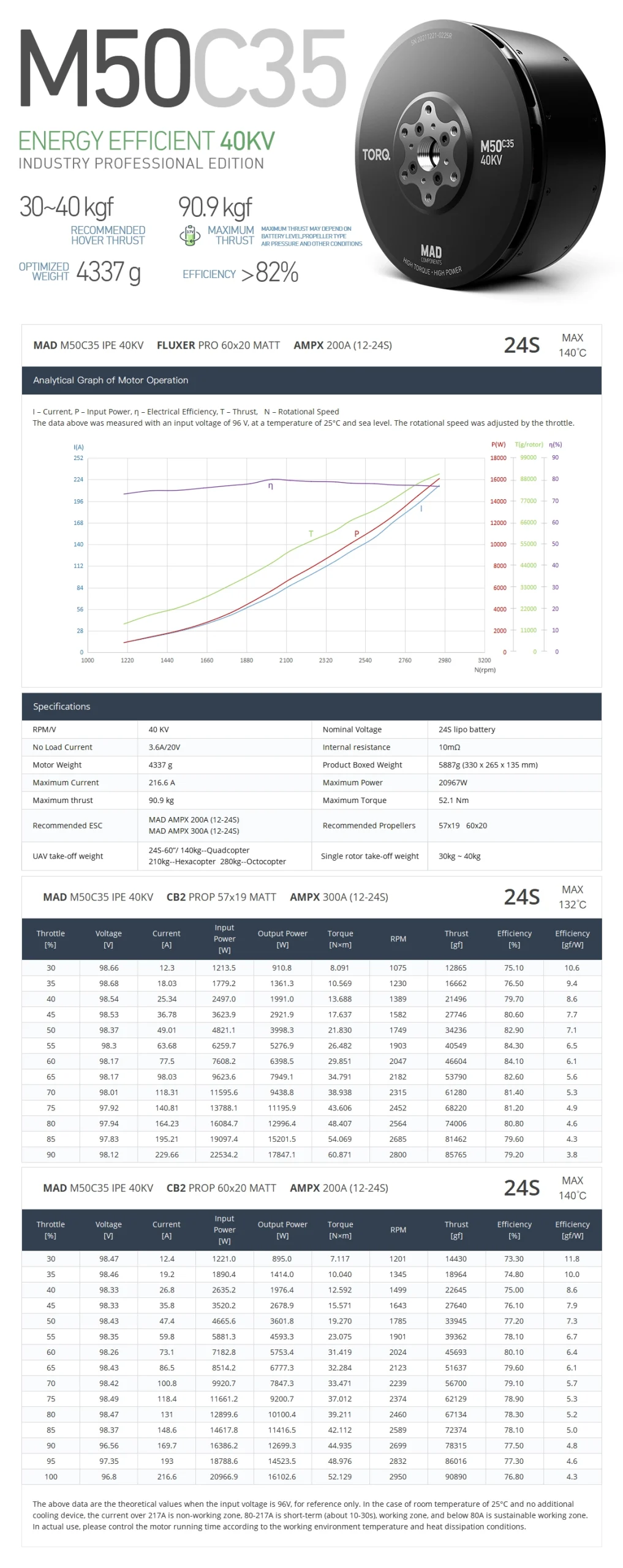

3.40KV Recommend ESC:AMPX 300A(12-24S) propeller:CB2 57X19 or AMPX 200A(12-24S), propeller: fluxer pro 60X20
3.9KV -Recommend FOC combo: HB40-63X22 drone arm set,HB40-64×20 drone arm set,HB40-60X19 drone arm set,HB40-57X19 drone arm set.

Clear
Compare
Add to wishlist
SKU: N/A Categories: , , ,
Description

MAD M50C35 PRO IPE Manned Drone Motor

MAD M50C35 PRO IPE Manned Drone Motor

1.The power is 25 KW(40kg continue thrust), which is equal to 29 horsepower.
2.34KV Recommend ESC:AMPX 300A(12-24S) propeller： CB2 prop 63X22″ inch carbon fiber propeller.
3.40KV Recommend ESC:AMPX 300A(12-24S) propeller:CB2 57X19 or AMPX 200A(12-24S), propeller: fluxer pro 60X20
3.9KV -Recommend FOC combo: HB40-63X22 drone arm set,HB40-64×20 drone arm set,HB40-60X19 drone arm set,HB40-57X19 drone arm set.

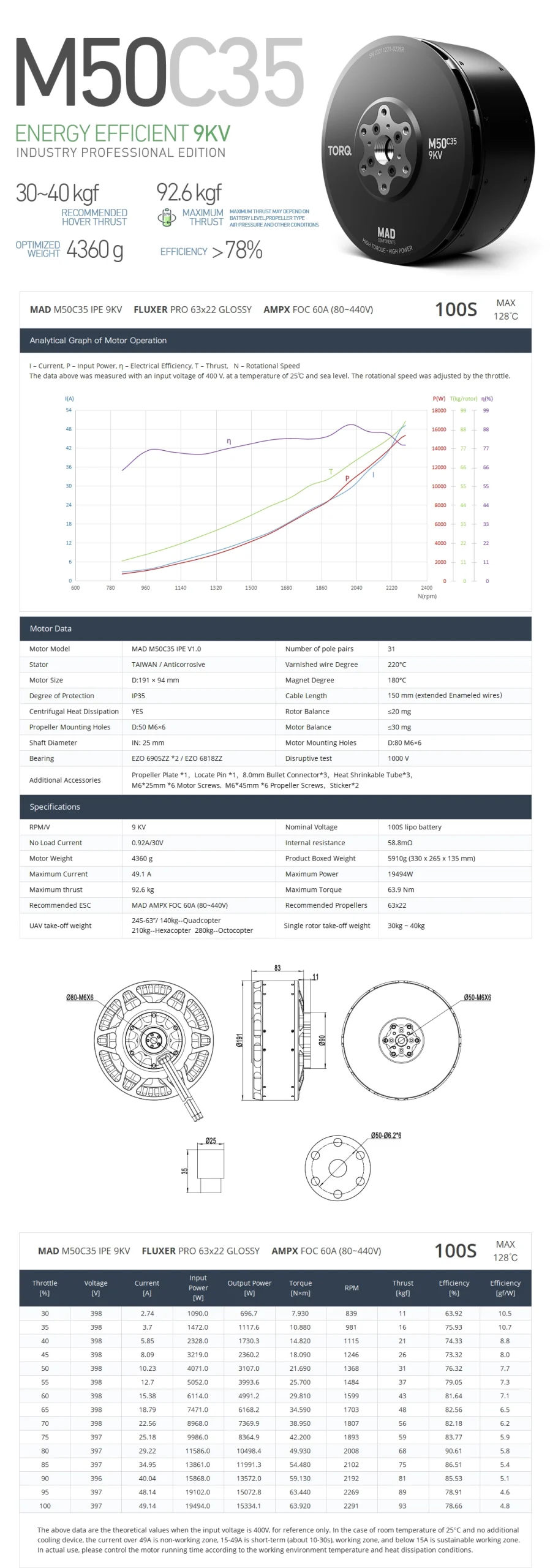

Motor Data

Motor ModelMAD M50C35 IPE V1.0Number of pole pairs31
StatorAnticorrosiveVarnished wire Degree220°C

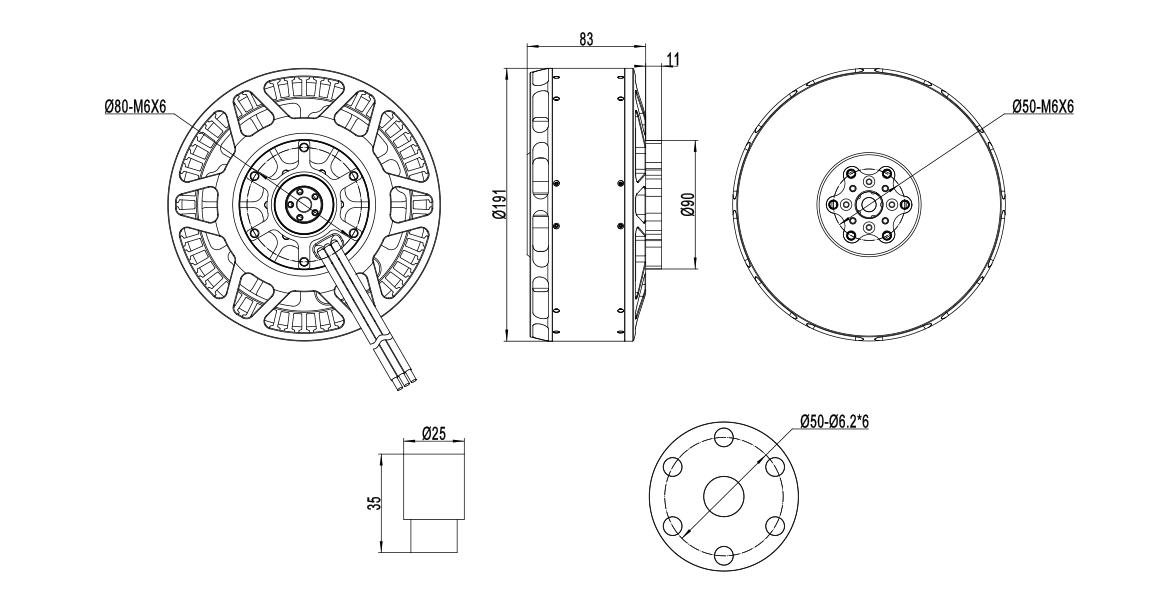

Motor SizeD:191 × 94 mmMotor Balance180°C
Degree of ProtectionIP35Cable Length150 mm (extended Enameled wires）
Centrifugal Heat DissipationYESRotor Balance≤20 mg
Propeller Mounting HolesD:50 M6×6Motor Balance≤30 mg
Shaft DiameterIN: 25 mmMotor Mounting HolesD:80 M6×6
Bearing6905ZZ *2 / 6818ZZDisruptive test1000 V



Additional information
Weight N/A
Dimensions N/A
KV 9KV , 34KV , 40KV
