MAD M20 IPE brushless drone motor $459.00
Back to products
MAD M40C30 PRO IPE brushless drone motor $1,068.00

MAD M50C60 PRO IPE drone UAV motor 10KV output 32KW

$2,299.00

  1. It has a power output of 32 kW, equivalent to 43 hp.
  2. Recommended ESC and propeller: HB60-63X22, HB60-64X22.
Compare
Add to wishlist
SKU: 5688FB8/2406-2082 Categories: , , ,
Description

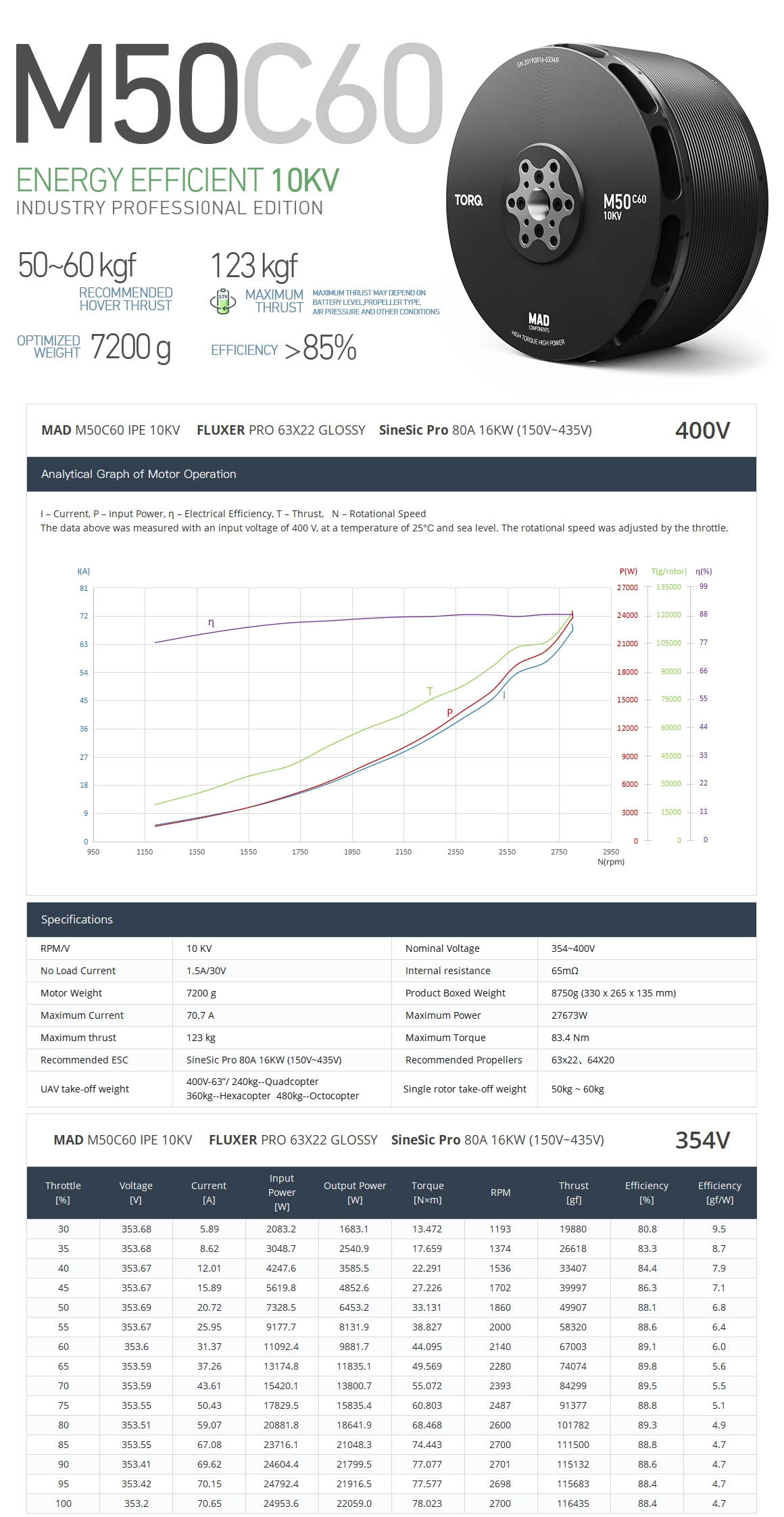

MAD M50C60 PRO IPE drone UAV motor 10KV output 32KW

MAD M50C60 PRO IPE drone UAV motor 10KV output 32KW

  1. It has a power output of 32 kW, equivalent to 43 hp.
  2. Recommended ESC and propeller: HB60-63X22, HB60-64X22.

Motor Data

Motor ModelMAD M50C60 IPE V1.0Number of pole pairs31
StatorAnticorrosiveVarnished wire Degree220°C

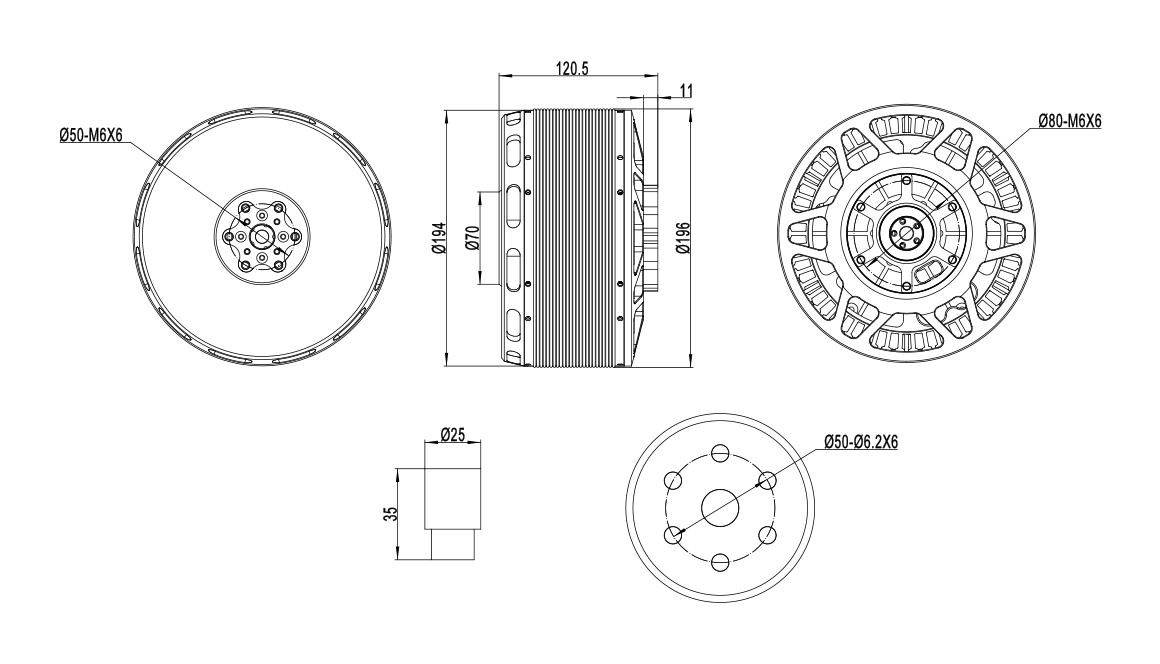

Motor SizeD:196 × 120.5 mmMotor Balance180°C
Degree of ProtectionIP35Cable Length200 mm (extended Enameled wires）
Centrifugal Heat DissipationYESRotor Balance≤20 mg
Propeller Mounting HolesD:50 M6×6Motor Balance≤30 mg
Shaft DiameterIN: 25 mmMotor Mounting HolesD:80 M6×6
Bearing6805ZZ *2 / 6818ZZDisruptive test1000 V



Additional information
Weight 10 kg
Dimensions 50 × 40 × 40 cm
