MAD M7C10 IPE V2 brushless motor
MAD M7C10 IPE V2 brushless motor
The M7C10 is designed for unmanned aerial vehicles (UAVs), multirotor hexacopters and octocopters, to carry a payload of 3.5-5kg and support 12S voltage.
Motor Data | |||
| Motor Model | MAD M7C10 IPE V2.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |

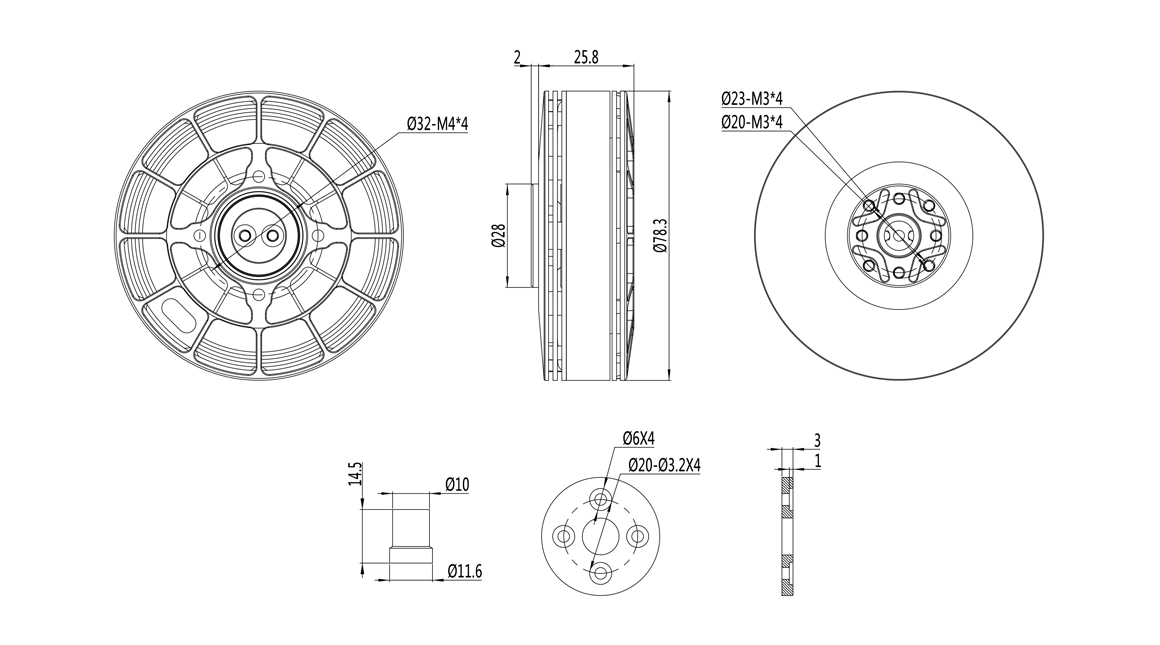

| Motor Size | D:78.3 × 27.8 mm | Motor Balance | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:32 M4×4 |
| Bearing | 6901ZZ*2 | Disruptive test | 500 V |
