MAD M50C35 PRO IPE Manned Drone Motor $1,299.00
Back to products
MAD M8C08 8108 IPE V2 brushless drone motor $269.00

MAD M8C10 EEE brushless drone motor

$299.00

M8C10 motor is the most classic product among UAV motors. MAD COMPONENTS M8C10 is one of the most efficient motors among them, and the most widely used motors for UAV of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc. Endurance flight time varies from 30-120min.

Clear
Compare
Add to wishlist
SKU: N/A Categories: , , ,
Description

MAD M8C10 EEE brushless drone motor

MAD M8C10 EEE brushless drone motor

M8C10 motor is the most classic product among UAV motors. MAD COMPONENTS M8C10 is one of the most efficient motors among them, and the most widely used motors for UAV of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc. Endurance flight time varies from 30-120min.

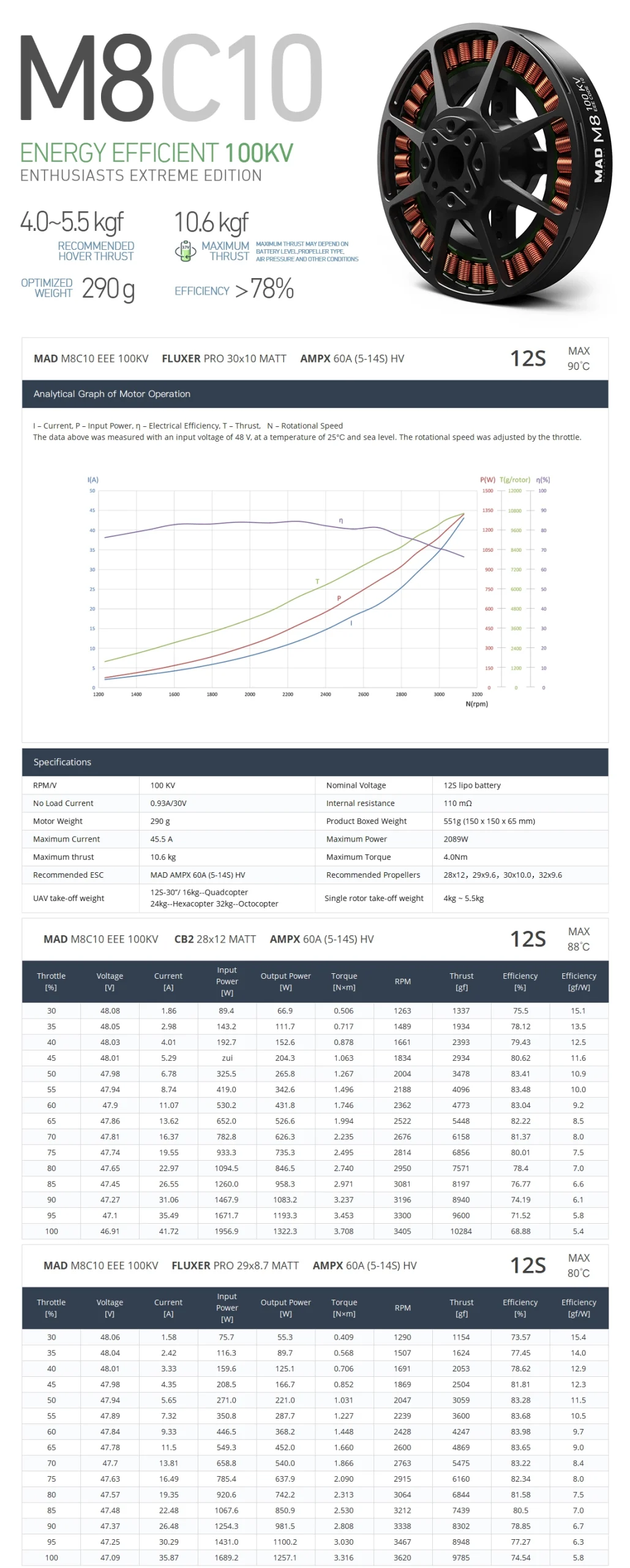

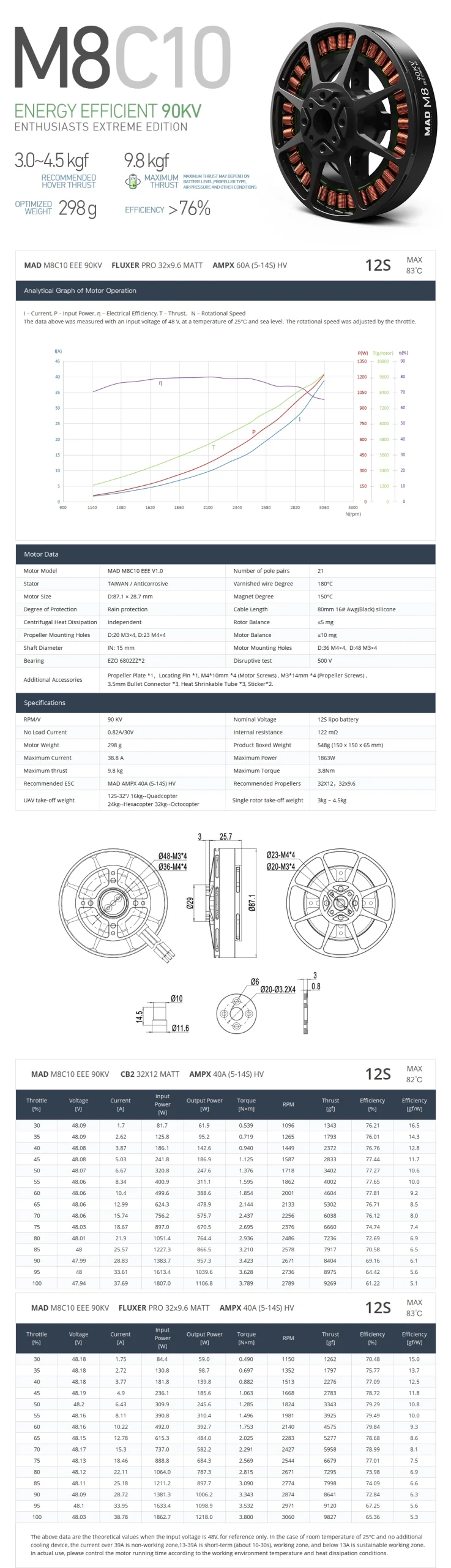

Motor Data

Motor ModelMAD M8C10 EEE V2.0Number of pole pairs21
StatorAnticorrosiveVarnished wire Degree180°C

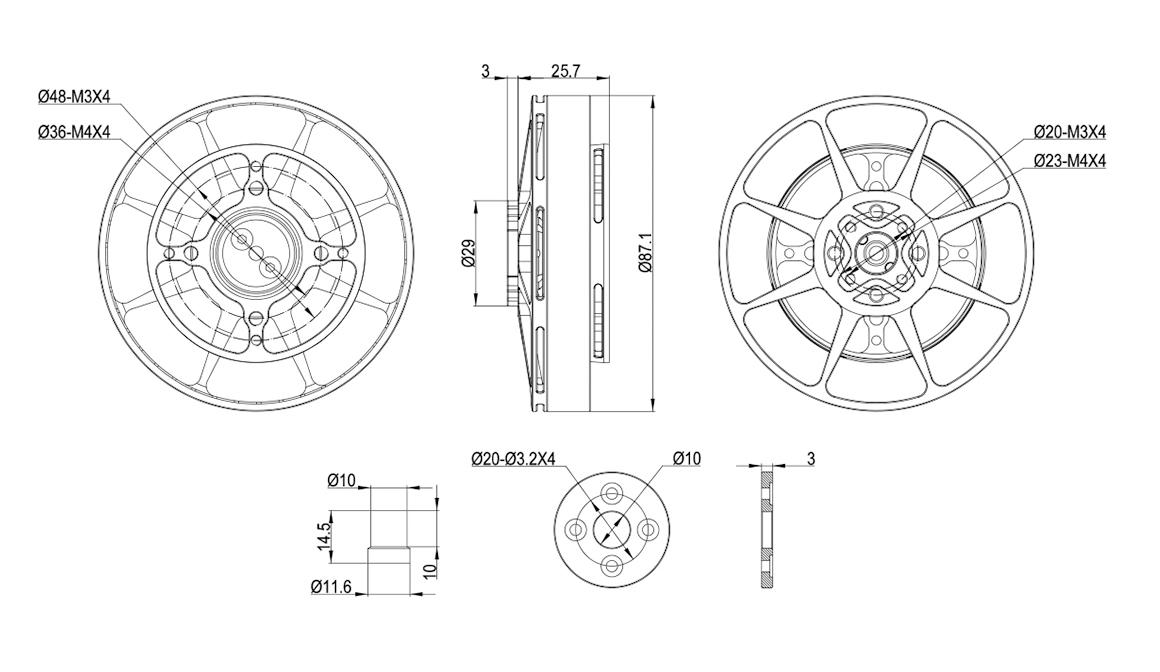

Motor SizeD:87.1 × 28.7 mmMotor Balance150°C
Degree of ProtectionRain protectionCable Length80 mm 16# Awg(Black) silicone
Centrifugal Heat DissipationIndependentRotor Balance≤5 mg
Propeller Mounting HolesD:20 M3×4, D:23 M4×4Motor Balance≤10 mg
Shaft DiameterIN: 15 mmMotor Mounting HolesD:36 M4×4,  D:48 M3×4
Bearing6802ZZ*2Disruptive test500 V
Additional information
Weight N/A
Dimensions N/A
KV 100KV , 90KV
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “MAD M8C10 EEE brushless drone motor”
