Product Specification:

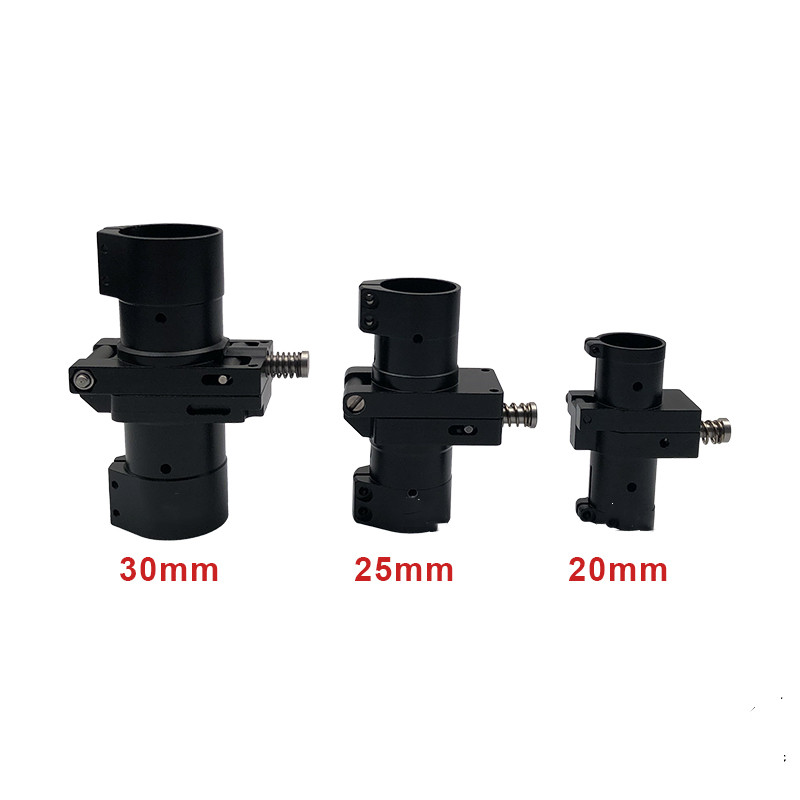

Size: ID20mm  Weight: 44.6g

2 x M3*30mm screw

2 x M2.5*8mm screw

2 x M3 Nuts

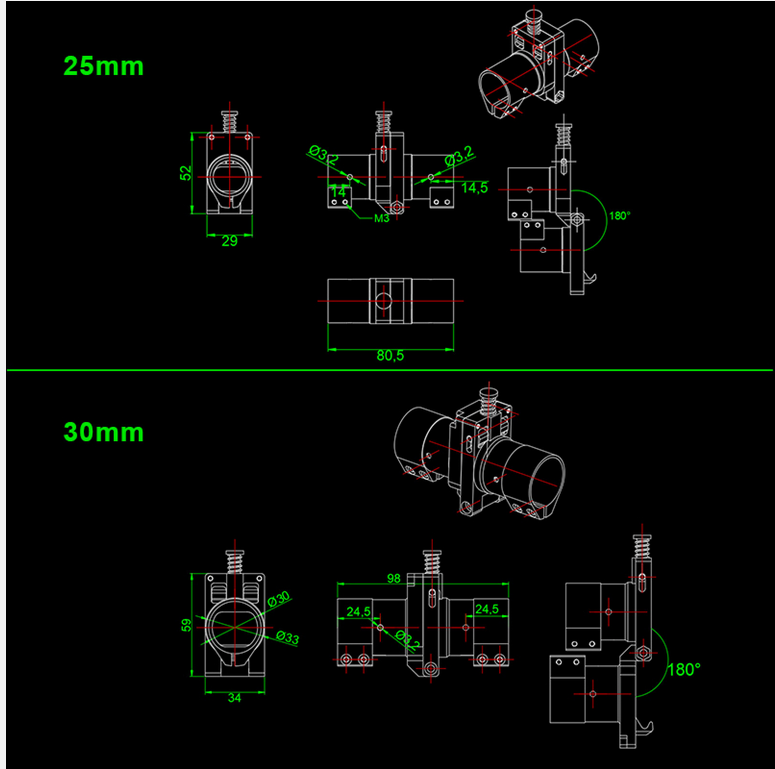

Size: ID25mm  Weight: 84.9g

2 x M3*10mm screw

2 x M3*35mm screw

2 x M3 Nuts

ID30mm   Weight: 117.1g

4 x M3*10mm screw

2 x M3*40mm screw

2 x M3 Nuts

Material: Aluminum alloy

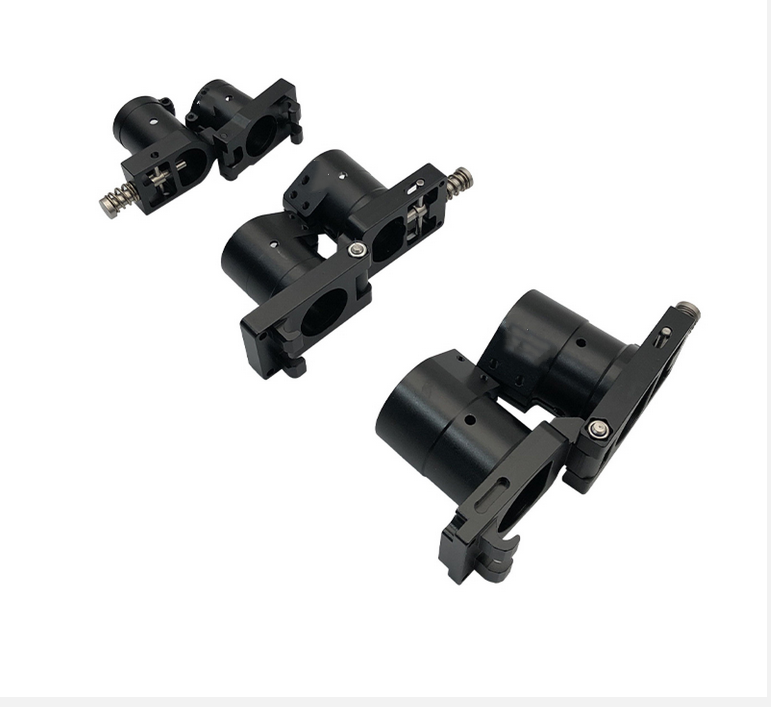

The new horizontal folding part lengthens the length of the arm mounting bushing, which makes the arm fixed more stable.

 The compression nut is added to prevent the arm from rotating.

 The folding member is added with anti-loose screw fixing hole. After the arm is unfolded, it can be tightened and tightened with M3 screws.

 It is more reliable and firmer than other folding parts with spring rods or buckles. It completely eliminates the virtual position and makes the flight more stable.

Package Contents:

1pcs * Horizontal Folding Arm Tube Joint
