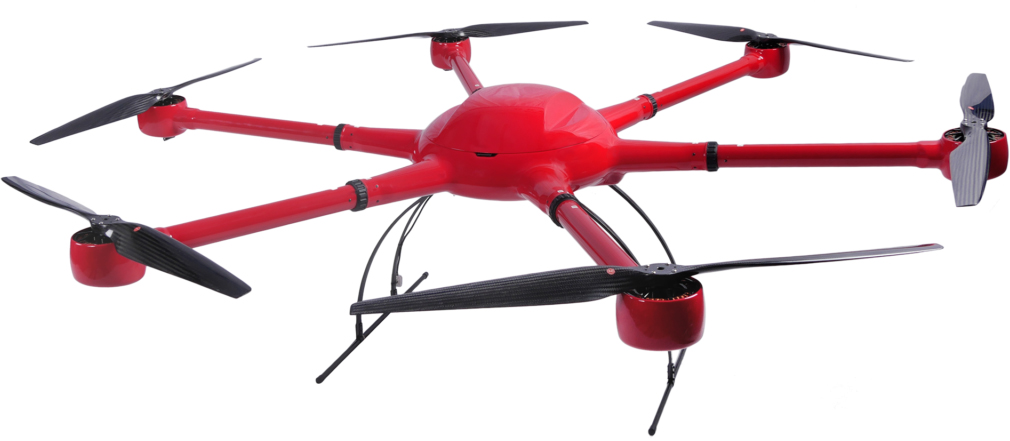

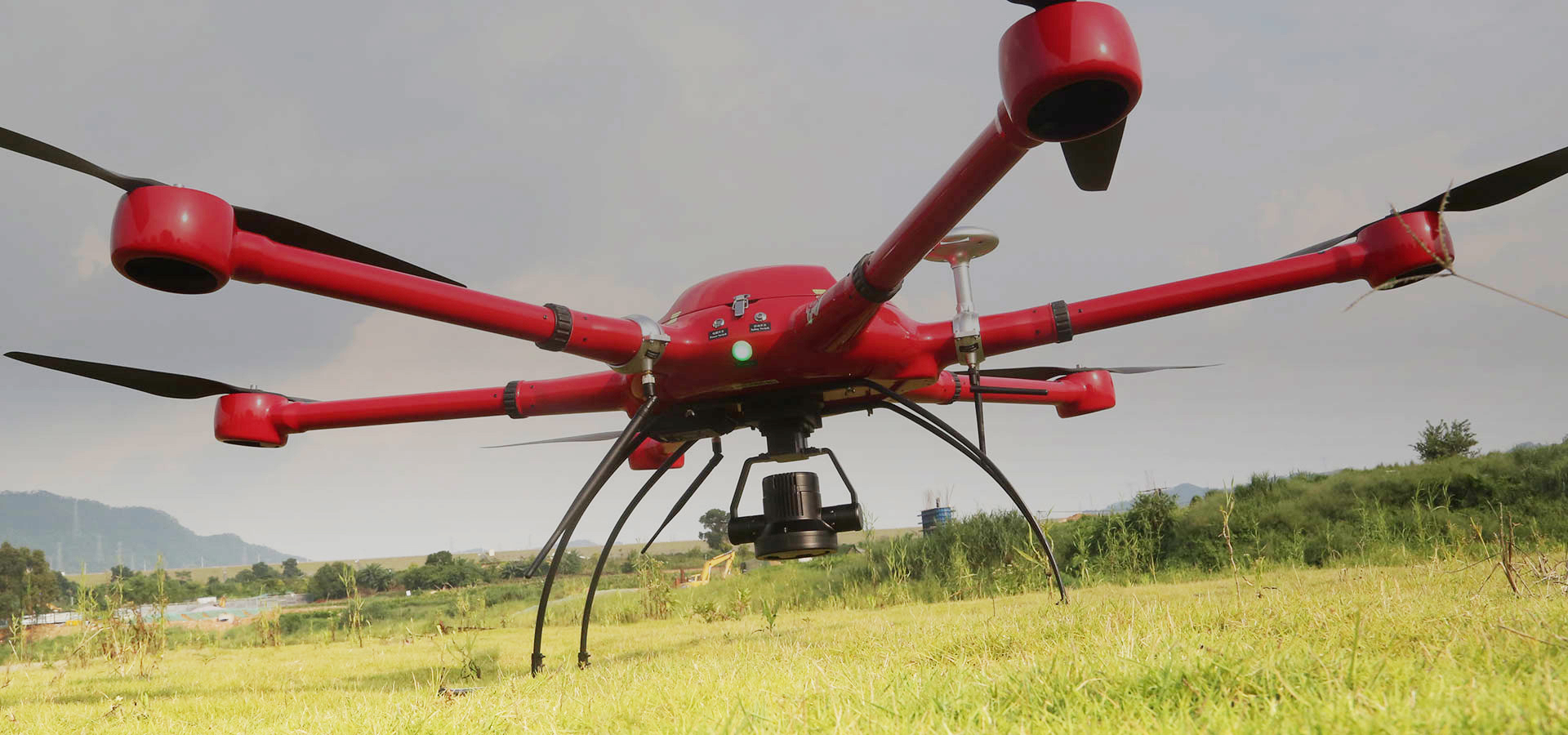

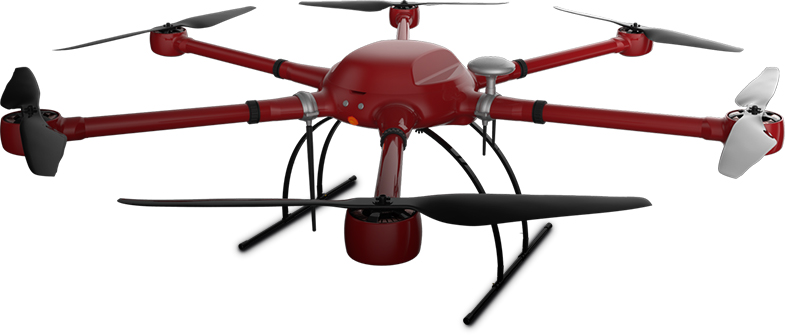

FD1550 hexacopter max payload 12KGS drone Frame KIT

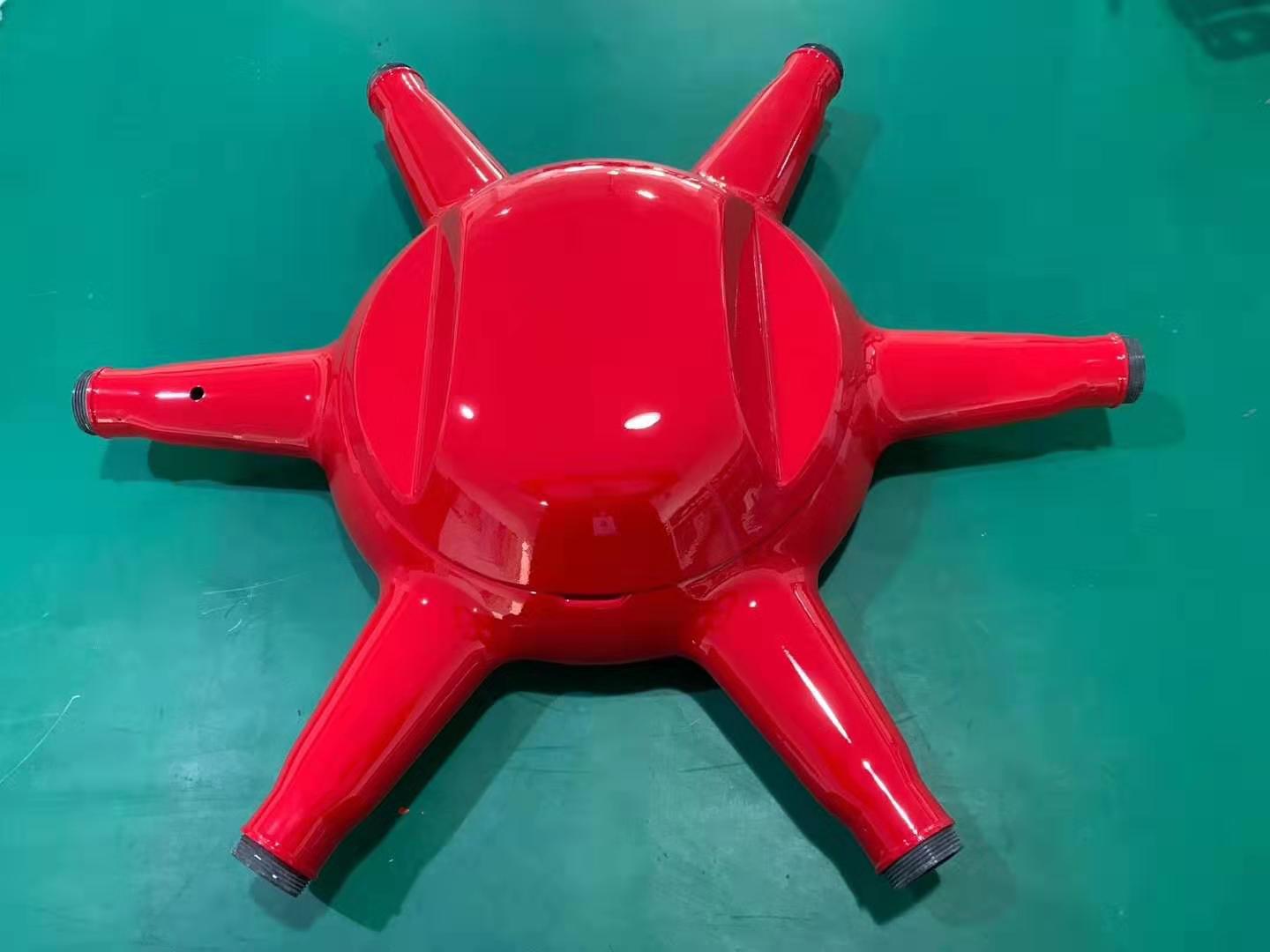

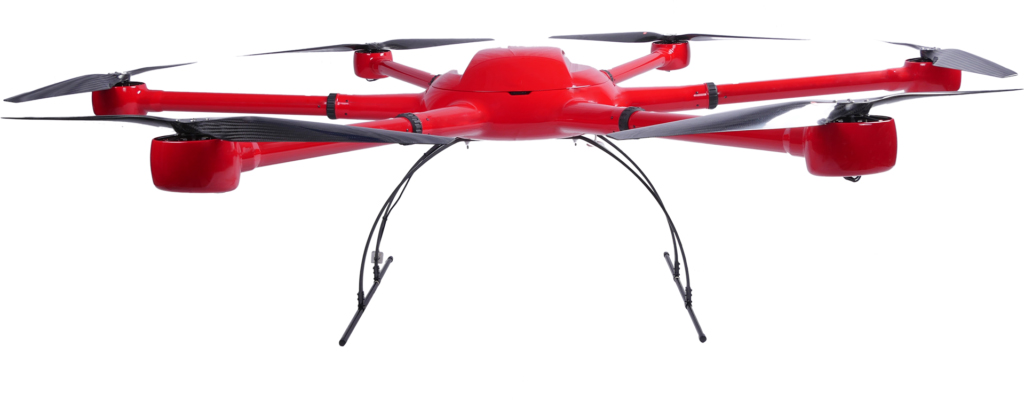

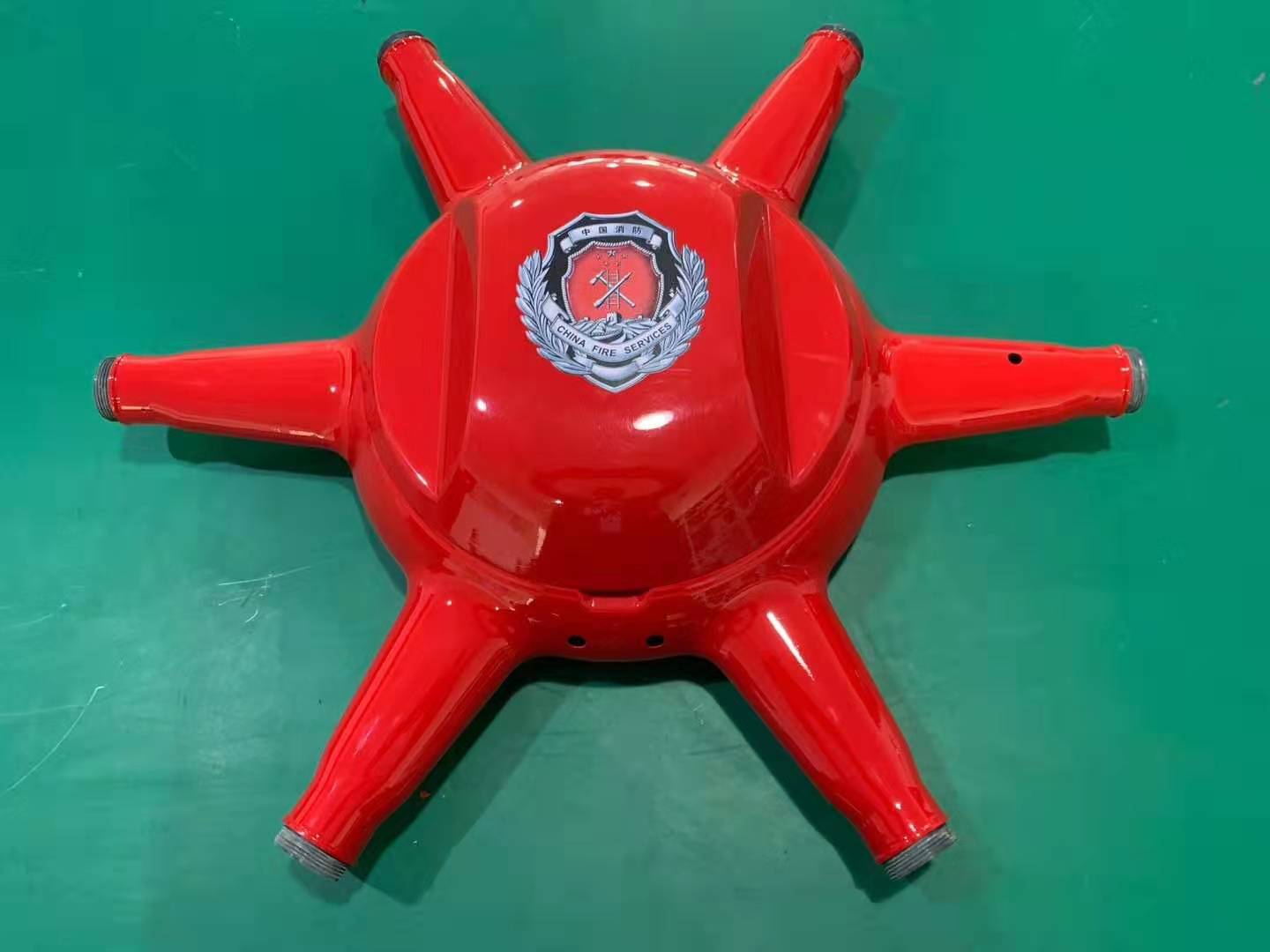

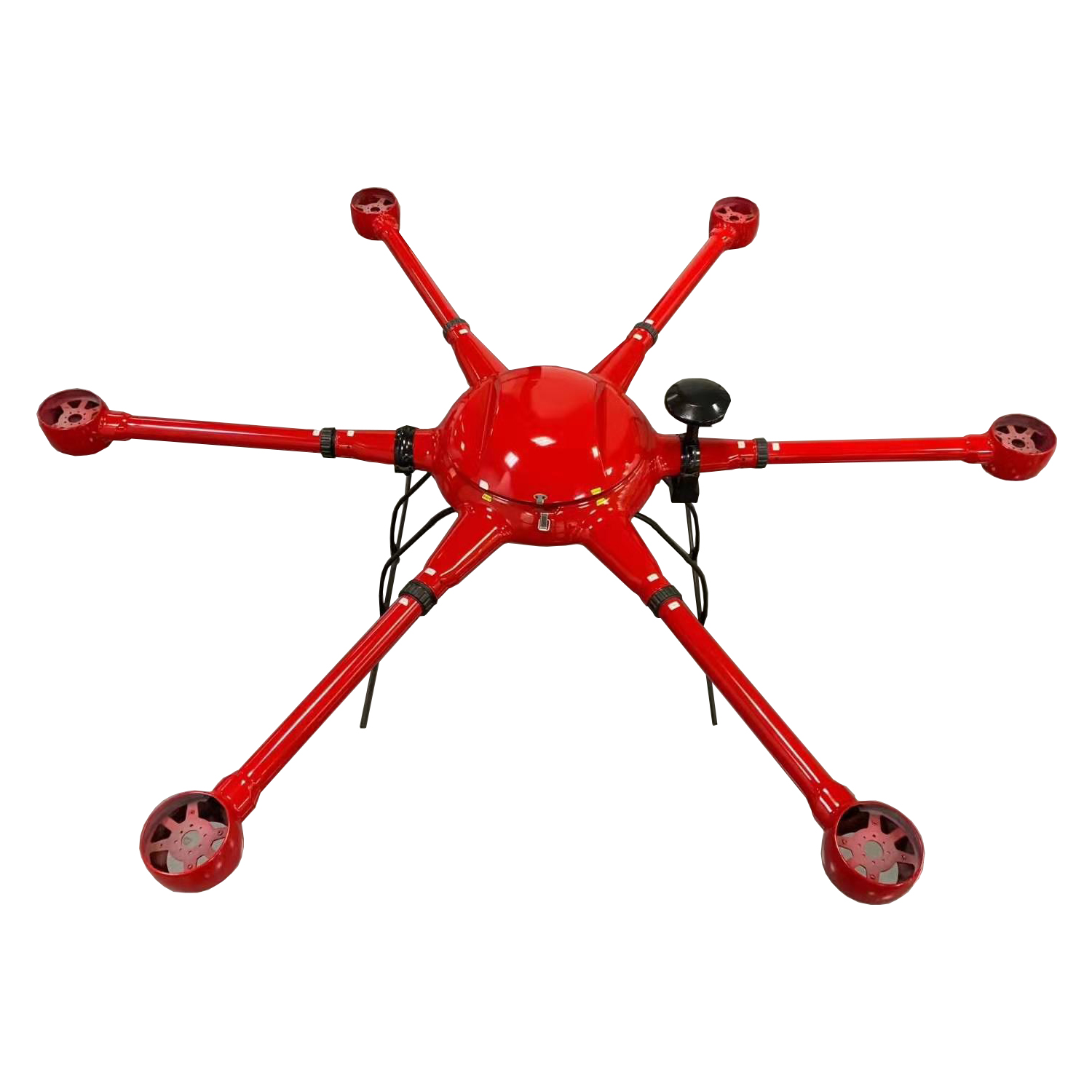

FD1550 hexacopter max payload 12KGS drone Frame KIT an outstanding industrial hexacopter drone. It features lightweight carbon fiber one-body fuselage. Its arm comes with a unique structure for convenience and security. The drone is rain- and dust-proof and excels in loading ability. With a maximum flight time of 81 minutes and a maximum payload of 12kg.

Specification

Aircraft Type: Hexacopter
Wheelbase: 1550mm
Airframe Material: Carbon Fiber And Composite Materials
Package Size: 400*730*930mm (standard)/ 700*700*300mm+110*45*20MM(portable)
Weight (Without Batteries Or Payload): 6.8kg
Max. Take-Off Weight:21-23kg
Max. Payload: 10-12kg
Max. Climb Speed: 4m/s
Cruise Speed: 10m/s
Max. Flying Speed: 15m/s
Battery Capacity: 22000mAh*12S LiHV 30000mAh*12S 18650 22000mAh*12S2P LiHV
Flight Time (Without Load): 62min(22000mAh*12S LiHV) 74min(30000mAh*12S 18650) 81min(22000mAh*12S2P LiHV)
Max. Control Radius: 10km
Max. Altitude AMSL: 4000m
Hovering Accuracy:Vertical ±1m, Horizontal±1.5m
Max. Wind Resistance： Level 6
Operation Temperature： -20～60℃
IP Rating：IP56

Suggest setup:

-6x T-MOTOR U8II KV100 Motor
-6x T-MOTOR Flame 60A ESC
-3 pair UL28×8.4 Propeller
-4x 16000mAh 6S Lipo battery

NOTE： THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC
