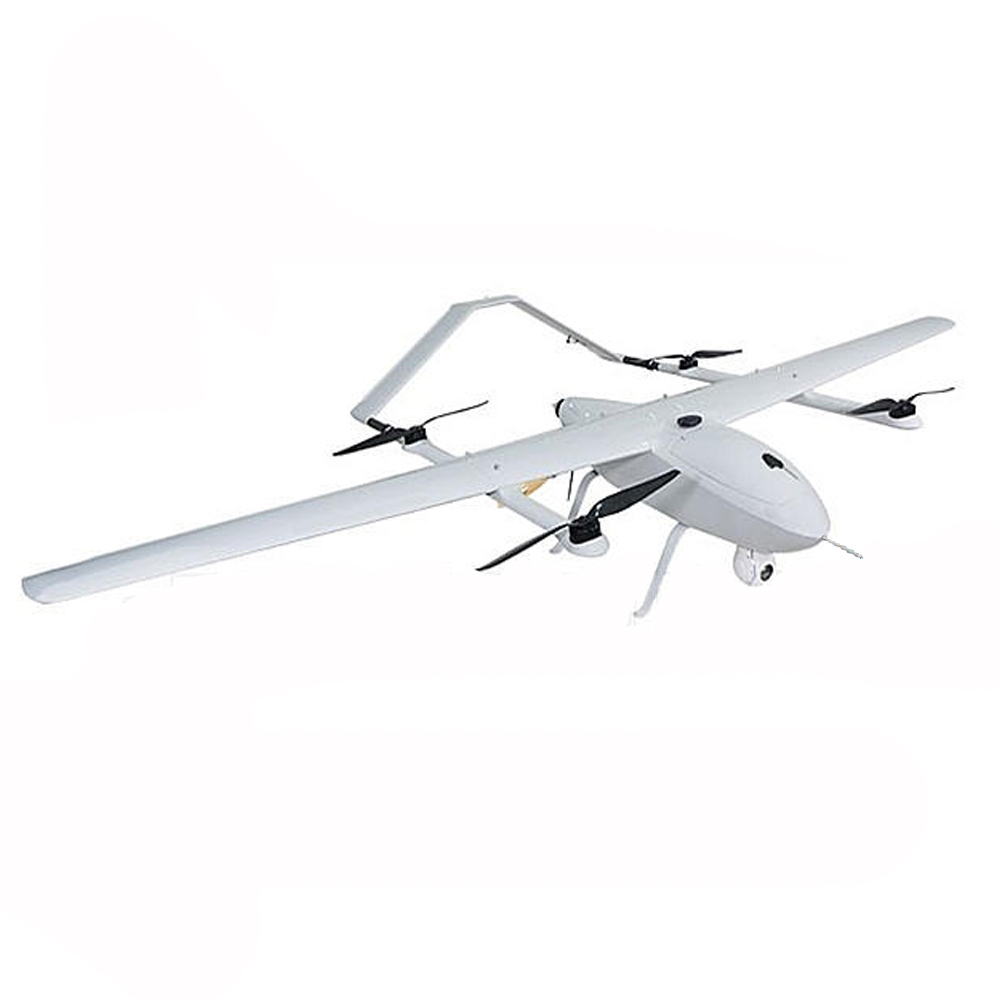

Big shark VTOL drone frame for Surveillance Mapping Drone
Big shark VTOL drone frame for Surveillance Mapping Drone is a vertical take-off and landing (VTOL) aircraft is one that can hover, take off, and land vertically. This classification can include a variety of types of aircraft including fixed-wing aircraft as well as helicopters and other aircraft with powered rotors, such as cyclogyros/cyclocopters and tiltrotors.[1] Some VTOL aircraft can operate in other modes as well, such as CTOL (conventional take-off and landing), STOL (short take-off and landing), and/or STOVL (short take-off and vertical landing).
| MTOW | 20.3kg |
| Weight w/o battery and payload | 9.69kg |
| Wingspan | 3200 mm |
| Length | 1,200 mm |
| Height | 500 mm |
| Frame weight | 3.2kg |
| Max payload(battery included) | 10.61kg |
| Battery weight | 7.53kg |
| Endurance(20.3kg take-off weight) | 2.5 hours |
| Cruise speed | 78-90km/h |
| Max speed | 100km/h |
| Stall speed | 57.6km/h |
Recommended Set-up:
4 x T-motor MN605S 210KV
4 x Hobbywing 12S 80A ESC
2 x 2266 CF Propeller CW&CCW
1 x Hobbywing 12S 120A ESC
1 x Dualsky XM6360EA-22 KV190
1 x Wood 19*12 Propeller CW
4 x KST DS135MG Servo
1 x PX4 Air Speedometer
1 x Power Module For Pixhawk 2.1
1 x Pixhawk 2.1 Standard Set with Here 2 GNSS
1 x YR16S Radio Controller
2 x 6S 28000mAh NCR18650GA battery
2 x TATTU 6S 8000mAh 25C Lipo battery
NOTE： THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!
