FD400 VTOL UAV with 4hours endurance time with 5kg payload

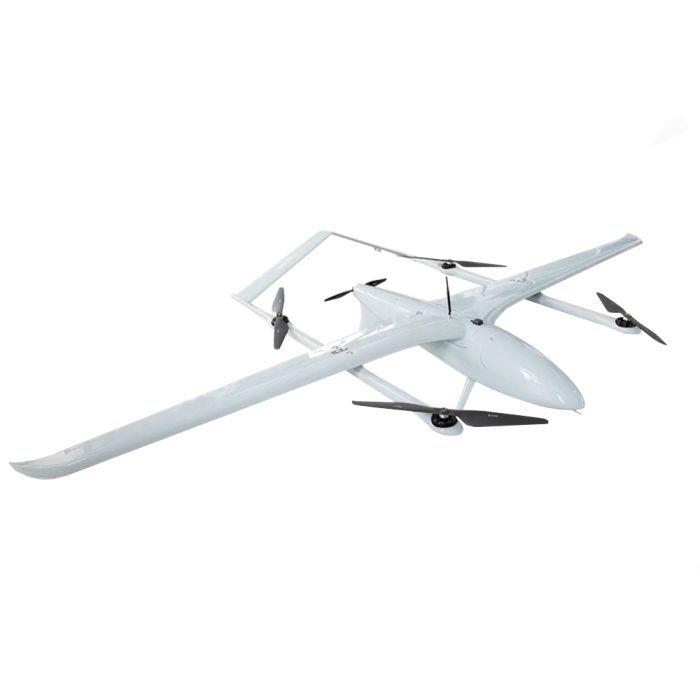

FD400 VTOL UAV is a conventional layout pure electric tail thrust vertical take-off and landing fixed-wing UAV with a forward R&D design process, it has superior performance than electric vertical fixed-wing UAVs of the same level. It is made of full-fuselage aviation carbon fiber composite material, which has high strength and light weight, and is suitable for a variety of application scenarios such as long operation time and rapid switching of task loads.

Specifications

Length： 1985mm

Height：680mm

wingspan：4000mm

Airframe material： Aviation carbon fiber composites

Max.Payload：10kg

Max.Take-off weight：30 kg

Level speed：20-33m/s

Cruising speed：24m/s

Flight time：2h@10kg； 4h@5kg

Max.range：360km

Altitude limited：4500m

Operation Temperature：-20°C-45°C

wind resistance：take-off level 5/ cruising level 6

Protection：IPX4

Packing size：1840*720*600mm

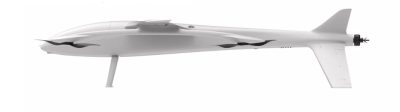

FD400 has two tails, please confirm which one do you need before order
