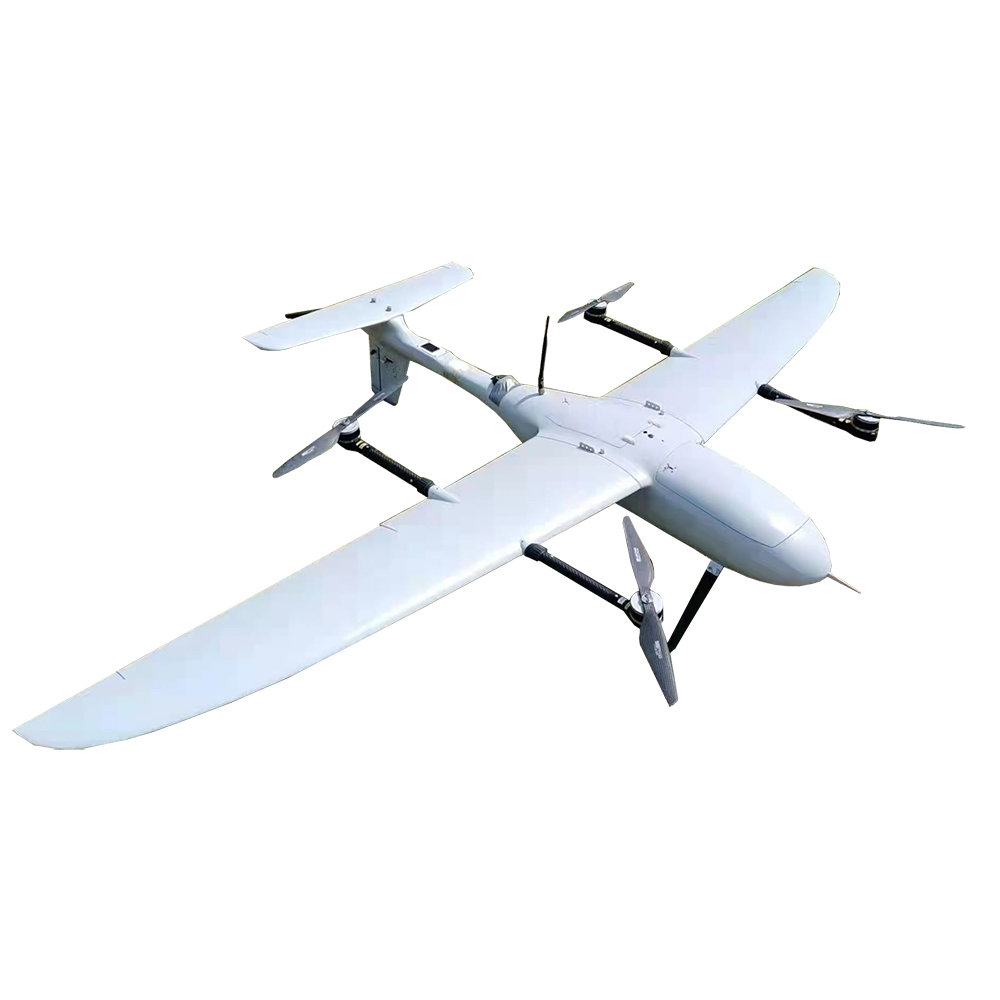

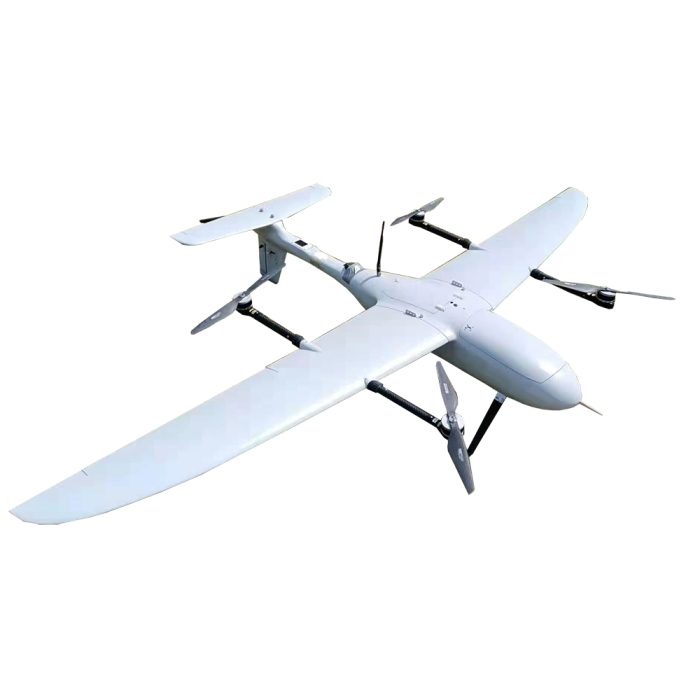

FDG23 pro VTOL UAV drone frame KIT for mapping drone

FDG23 pro VTOL UAV drone frame KIT for mapping drone is a cost-effective and easy-to-use VTOL specifically designed for mapping. Made from composite materials, the  frame is light and tough with featuring high performance. The quick-assemble design allows you to assemble it easily without any tools so as to shorten preparation time for each flight.  it can complete 12 square kilometer area mapping job in a 90-min-flight, if equipped with Here+ RTK Base(option).

VTOL UAV Specification:
Wingspan: 2500mm
Length: 1500mm
Belly to Ground: 160mm(land gear height support customized)
Battery compartment size: 280*160*100mm
Device compartment size: 150*130*120mm
Payload compartment size: 220*170*110mm
Material: Carbon fiber+Glass fiber
Airframe Weight: 3.5kg
MTOW: 13kg(include batteries)
Max Payload: 2kg
Flight time: 4hrs (no load), 3.5hrs@1kg load
Max Flight Speed: 100km/h
Suggest cruising Speed: 75-90km/h
Max climb rate: 5m/s
Max angel of roll: 35°
Max Flight Altitude: 3000m
Max Wind resistance: Grade 6
Battery (Recommended) :12S 30000mAH HD Li-ion
Working Temperature: -20℃~50℃
IP Grade: IPX3
Package Size: 1260x486x405mm

NOTE： THE PRICE IS JUST FRAME KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!
