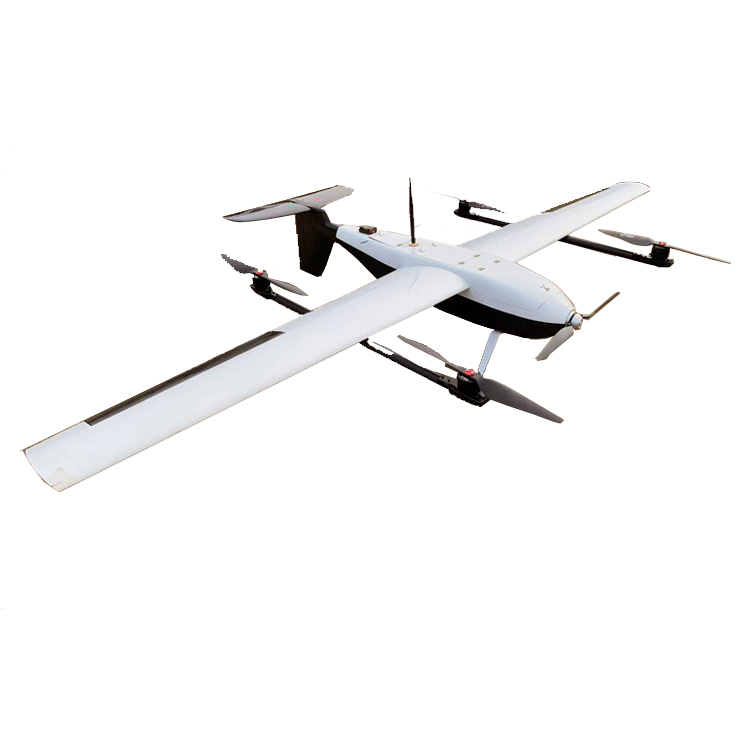

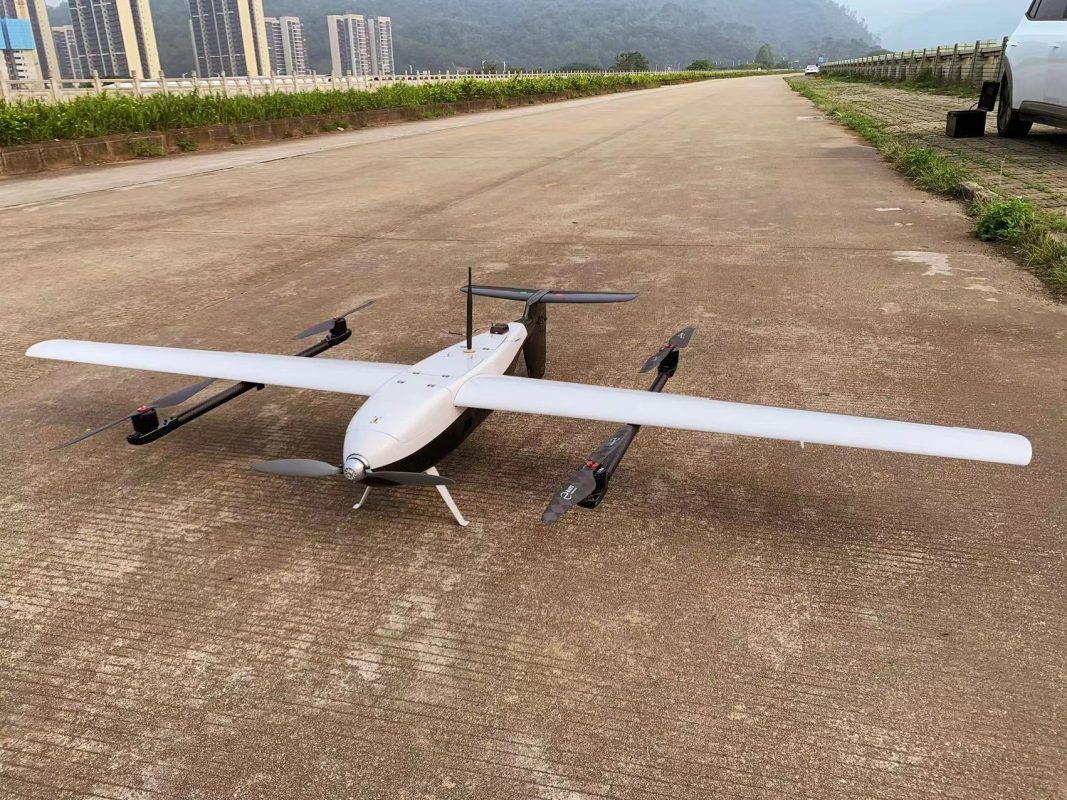

FDG23 VTOL Fixed wing KIT air frame for UAV building is a cost-effective and easy-to-use VTOL specifically designed for mapping. Made from composite materials, the  frame is light and tough with featuring high performance. The quick-assemble design allows you to assemble it easily without any tools so as to shorten preparation time for each flight.  it can complete 12 square kilometer area mapping job in a 90-min-flight, if equipped with Here+ RTK Base(option) FDG23 can realize centimeter-level positioning.

Specifications

Version: FDG23 VTOL
Wingspan: 2300mm
Fuselage: 1200mm
Material: Composite Material
ARF Weight: 3.6kg (no battery, no payload)
Max. Take-off Weight: 8kg
Suggested Max Payload: 1.5kg(excluding battery)
Endurance: 110min (1x 6S 25000mAh High Voltage Lipo Battery, no payload)
Recommended Cruising Speed: 18-20m/s
Stall Speed: 12-14m/s
Suggested Take-off Altitude: 0~3000m
Wind Resistance: 5.5m/s-7.9m/s(12.5mph-17.5mph)
Take-off/Landing: VTOL
Working Voltage: 24V
Working Temperature: -10℃-40℃
Carrying Case: 125cm*34cm*34cm
