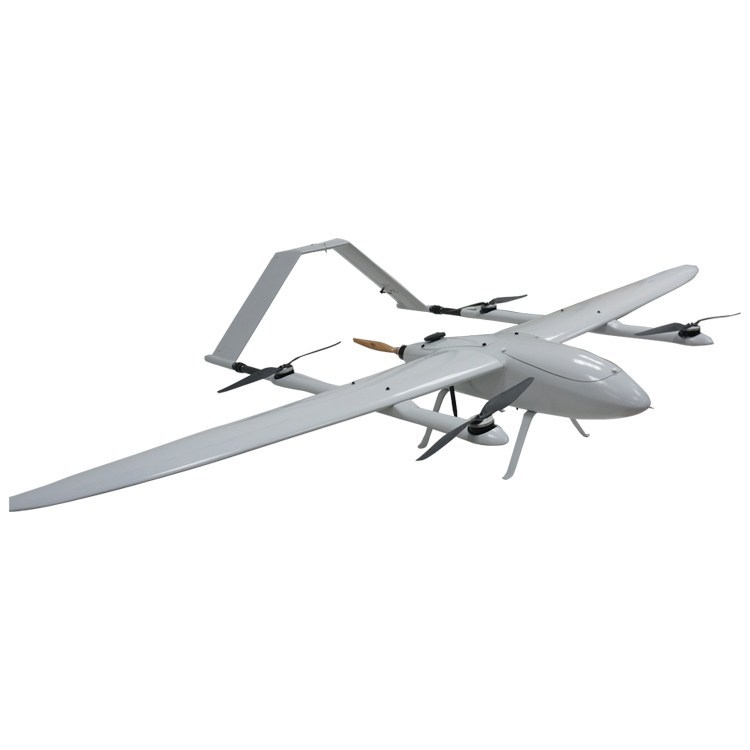

Baby shark VTOL 250 Fixed wing KIT air frame for UAV building

Baby shark VTOL 250 Fixed wing KIT air frame for UAV building is a vertical take-off and landing (VTOL) aircraft is one that can hover, take off, and land vertically. This classification can include a variety of types of aircraft including fixed-wing aircraft as well as helicopters and other aircraft with powered rotors, such as cyclogyros/cyclocopters and tiltrotors.

KIT frame material: carbon fiber Composites
Wingspan: 2.5m
Frame Weight: 2.68kg
Fuselage:Composites
Total Weight: 5.5kg(without battery)
Max Take-off Weight: 12kg
Max Payload: 6.5kg(including battery)
Max Flight Time: 2.5 hours
Max Speed: 100km/h

Recommended Set-up

Autopilot: Pixhawk 2.1 cube
T-motor V505-S KV260 4
T-motor FLAME 60A ESC 4
P16 5.4 Tmotor Carbon Fiber Propeller CW&CCW 4
T-motor AT4120 KV500 1
6s Hobbywing 120A ESC 1
15×8 Wooden Propeller CW 1
X10 Mini Servo 4
ASSAN UBEC-8A 1

NOTE： THE PRICE IS JUST FRAME KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!

Show case of client’s painting
